Flexible LED Module Installation & Maintenance Guide

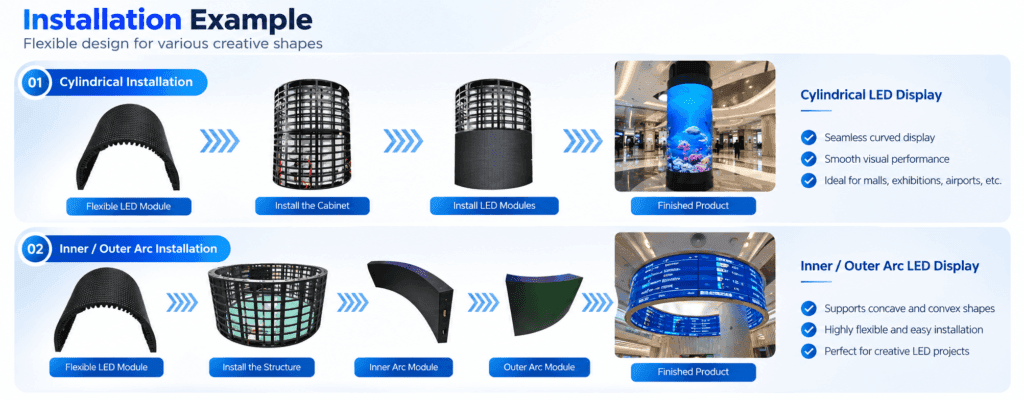

Flexible LED modules provide much greater design freedom than conventional rigid LED modules, making it possible to build curved, cylindrical, concave and convex LED displays.
However, because flexible modules use flexible PCBs and soft structural materials, proper installation, electrical protection and daily maintenance are important for long-term performance.
In this guide, we cover the key precautions for installing, operating, storing and cleaning an indoor flexible LED display.
1. Handle Flexible LED Modules Carefully
Flexible LED modules should always be handled carefully during installation and removal.
Never pull, tear or twist the module with excessive force. Although the PCB is designed to bend, excessive mechanical stress may damage the flexible PCB, electronic components or solder joints.
When removing a magnetically mounted module, use the appropriate service tool and apply force evenly instead of pulling from one corner.
2. Do Not Exceed the Minimum Bending Diameter
One of the main advantages of a flexible LED module is its ability to create curved LED screens. However, every flexible module has a bending limit.
For our flexible LED module series, the minimum bending diameter is approximately 509 mm.
Do not force the module into a curve smaller than its specified bending diameter, and avoid repeatedly folding or sharply bending the module.
Excessive bending can damage the PCB, solder joints and electronic components and may eventually result in dead pixels or module failure.
3. Choose a Flat and Stable Installation Structure
The supporting structure has a direct impact on the final flatness of a flexible LED screen.
We do not recommend using conventional galvanized square tubes as the primary mounting surface because it can be difficult to achieve the flatness required for precision flexible LED module installation.
For better results, we recommend a high-strength sandblasted sheet-metal cabinet or precision-fabricated steel structure.
A properly designed structure provides:
- Better screen flatness
- More accurate magnetic positioning
- Smaller visible seams
- More consistent curvature
- Easier installation and maintenance
This is particularly important for cylindrical and other highly curved LED displays.
4. Pay Attention to ESD Protection
LEDs and CMOS components are sensitive to electrostatic discharge (ESD).
During installation and maintenance, technicians should wear an anti-static wrist strap or anti-static gloves.
When modules are handled on a workbench, use an ESD-safe mat. The workbench, soldering equipment and other relevant tools should also be properly grounded.
Good ESD protection helps prevent invisible electronic damage that could otherwise affect the reliability and lifespan of the LED modules.
5. Ensure Proper Grounding
The LED display cabinet, frame and other conductive parts should be properly grounded.
A grounding resistance of less than 3 Ω is recommended. Proper grounding helps reduce electrical safety risks and provides additional protection for the LED display system.
The installation location should also be kept away from equipment that generates strong electromagnetic interference whenever possible.
6. Use the Correct Power Cables and Load Capacity
Power cables should be selected according to the maximum power consumption of the complete LED display, not simply its average operating consumption.
Follow local electrical regulations and the recommendations of a qualified electrician when designing the power distribution system.
Avoid connecting too many LED modules or cabinets to a single circuit.
Overloading can cause:
- Excessive voltage drop
- Reduced LED brightness
- Unstable display performance
- Circuit breaker trips
- Overheated cables or connectors
- Damage to the LED display
Proper power distribution is especially important for large curved LED displays.
7. Check the Circuit Before Powering On
After the LED screen has been completely assembled, do not immediately switch on the system.
Use a multimeter to check the AC input circuit and 5V DC circuits for possible short circuits or incorrect connections.
Only power on the LED display after confirming that the electrical connections are correct.
This simple inspection can prevent serious damage caused by incorrect wiring during installation.
8. Stop Immediately If an Electrical Fault Occurs
If you notice a short circuit, circuit breaker trip, burnt cable, unusual smell or other electrical abnormality after powering on the display, switch off the power immediately.
Do not repeatedly turn the screen on to test whether the problem disappears.
The electrical system, power supply, cables and connectors should first be inspected and the cause identified before the display is powered on again.
9. Watch for Abnormally Bright LED Rows
If several rows of LEDs suddenly appear unusually bright after powering on the display, turn off the main power supply immediately.
Check whether the module power cables and signal ribbon cables are properly connected.
Continuing to operate the screen under abnormal conditions may damage the driver ICs.
10. Follow the Correct Power-On and Power-Off Sequence
For systems using a control computer, we recommend the following sequence:
Power ON:
Computer → LED Display
Power OFF:
LED Display → Computer
Following the correct sequence helps avoid abnormal signals or sudden electrical conditions during system startup and shutdown.
11. Avoid Sudden Full-White High-Brightness Images
A dark desktop background is recommended for the control computer.
This prevents the LED screen from immediately displaying a full-white, high-brightness image when the system starts, which can create a sudden high-current load.
During normal operation, avoid displaying the same high-brightness static image for extended periods.
Long-term high-brightness static content can increase screen temperature and place unnecessary stress on LEDs and driver ICs.
12. Do Not Leave the LED Screen Unused for Long Periods
LED displays should not remain completely powered off for extended periods, especially in humid environments.
As a general maintenance practice, we recommend operating the display for at least 2 hours per week.
Periodic operation allows the screen to generate a small amount of heat, which helps reduce accumulated internal moisture and keeps electronic components in better operating condition.
13. Control Humidity Carefully
Humidity management is particularly important for indoor LED displays.
The recommended operating relative humidity is approximately 20%–80% RH, non-condensing.
When the installation environment becomes humid, especially during prolonged rainy seasons or periods of high humidity, the LED screen should be powered on regularly.
Below 60% RH
Operate the LED display for at least 2 hours per week.
60%–80% RH
Power on the LED display for at least 2 hours every day to help remove internal moisture through the heat generated by normal operation.
Above 80% RH or During Very Humid Weather
More careful moisture management is required.
Start the screen at approximately 60% brightness and gradually increase the brightness instead of immediately operating it at full output.
Allow the display to warm up for at least 2 hours before returning to normal brightness.
For environments that remain above 80% RH for extended periods, longer daily operation may be required to keep the internal components dry.
Important: Avoid operating the display in environments where condensation is present. Humidity percentage alone does not guarantee that condensation will not occur.
14. Flexible LED Module Storage
Before installation, flexible LED modules and related electrical components should be stored in a clean and dry environment.
Recommended storage conditions:
Temperature: ≤30°C
Relative Humidity: ≤65% RH
Modules should be kept away from moisture, dust, corrosive materials and excessive mechanical pressure.
Avoid stacking heavy objects on flexible LED modules, as this may deform the modules or damage the LED surface.
15. How to Clean a Flexible LED Screen
Never pour or spray water directly onto the LED display or flexible LED modules.
For routine cleaning, use a soft anti-static brush to gently remove dust from the LED surface.
Avoid using:
- Wet cloths
- Water-based cleaning methods
- Hard brushes or sharp objects
- Excessive pressure on the LED surface
For stubborn contamination, consult the LED display manufacturer before applying any cleaning agent.
Conclusion
Correct installation and maintenance are essential to the long-term performance of a flexible LED display.
Pay particular attention to the module’s bending limit, installation structure, ESD protection, grounding, power distribution, humidity and cleaning methods. These precautions help reduce module damage, maintain consistent screen flatness and improve the reliability of curved LED display installations.
