Indoor Flexible LED Module
Indoor Flexible LED Module - Image 2
Indoor Flexible LED Module - Image 3

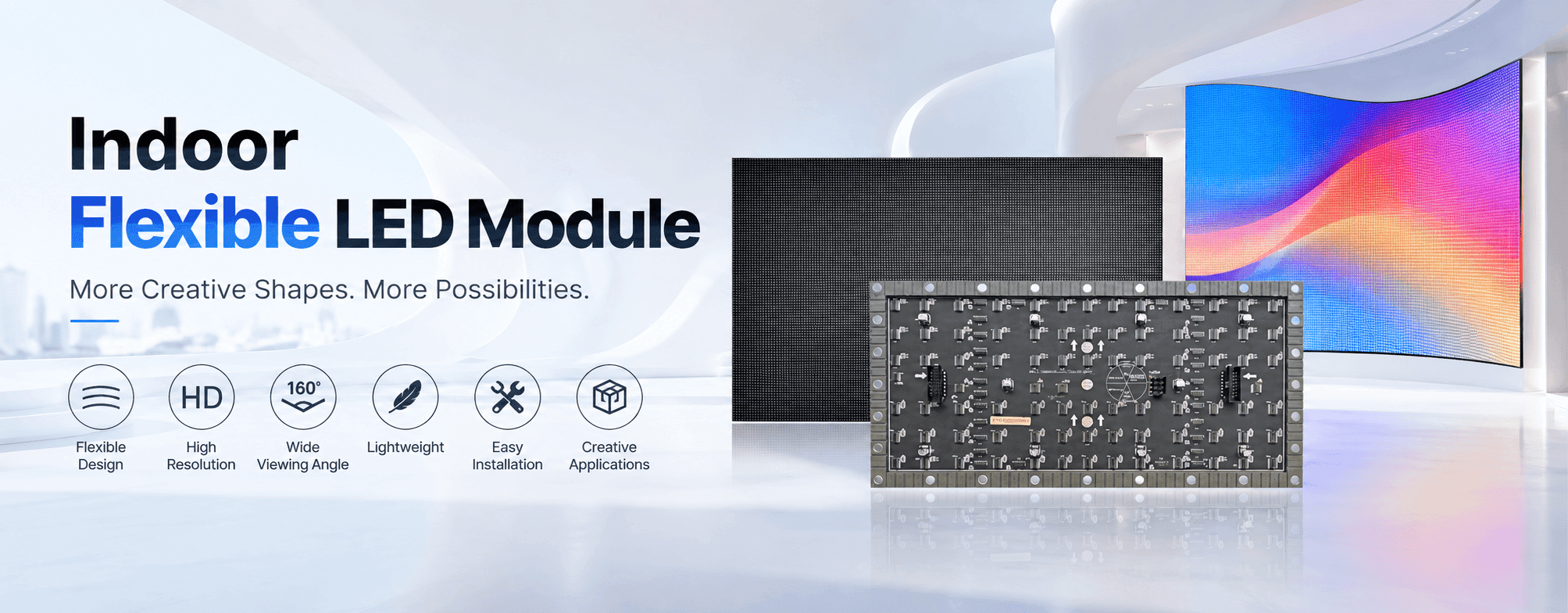

Indoor Flexible LED Module

Flexible Design for Creative Curved LED Displays

ZILANG LED indoor flexible LED modules are designed for curved, cylindrical, concave, convex and other creative LED displays. Available in 320 × 160 mm and 240 × 120 mm module sizes with pixel pitches from P1.25 to P4, they provide high-resolution images, smooth performance and flexible installation for a wide range of indoor applications.

Pixel Pitch: P1.25 / P1.538 / P1.568 / P1.667 / P1.86 / P1.88 / P2 / P2.5 / P3 / P4
Module Size: 320 × 160 mm / 240 × 120 mm



Request a Quote
Categories: , , Product ID: 23952

Description

Flexible LED Module for Creative Display Designs

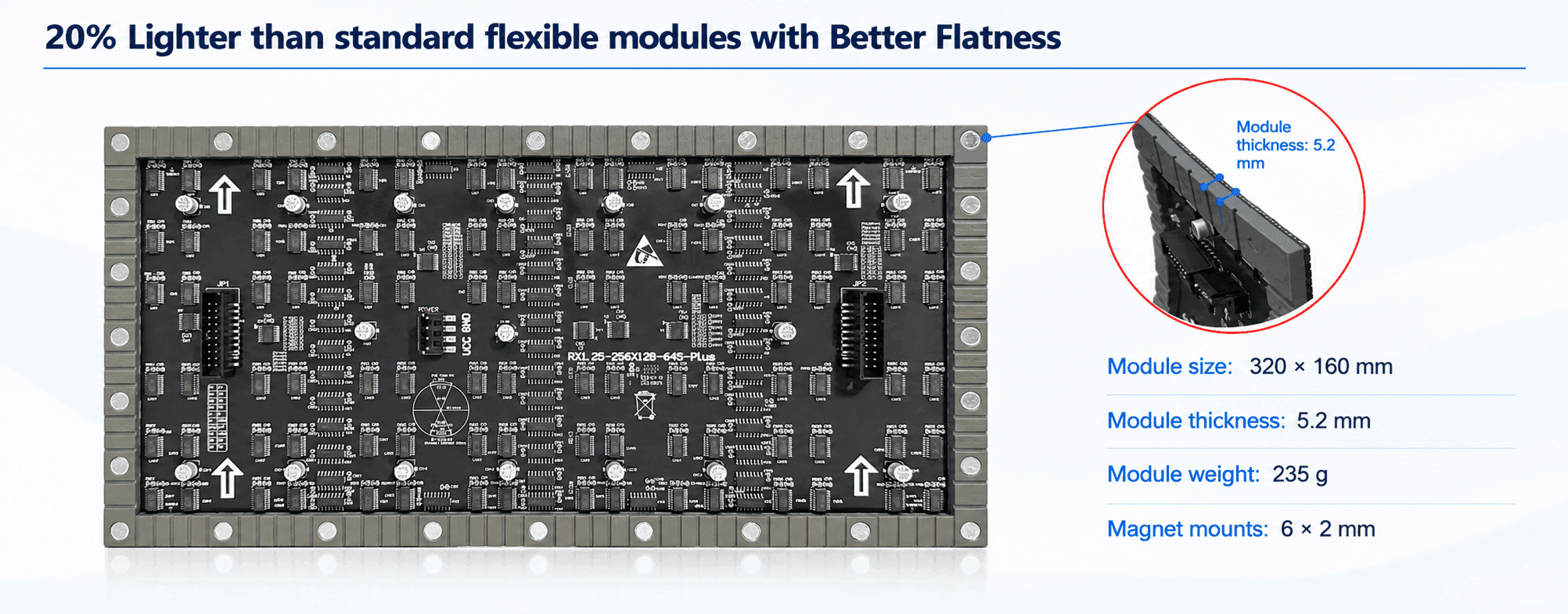

Ultra-Thin & Lightweight Design

With a module thickness of only 5.2 mm, the ultra-thin structure reduces installation depth and makes it easier to create lightweight curved LED displays.

Excellent Image Performance

Featuring a 5000:1 high contrast ratio, ≥3840Hz refresh rate and 12–16 bit grayscale, the flexible LED module delivers smooth, detailed images with excellent grayscale performance and no visible image lag or ghosting.

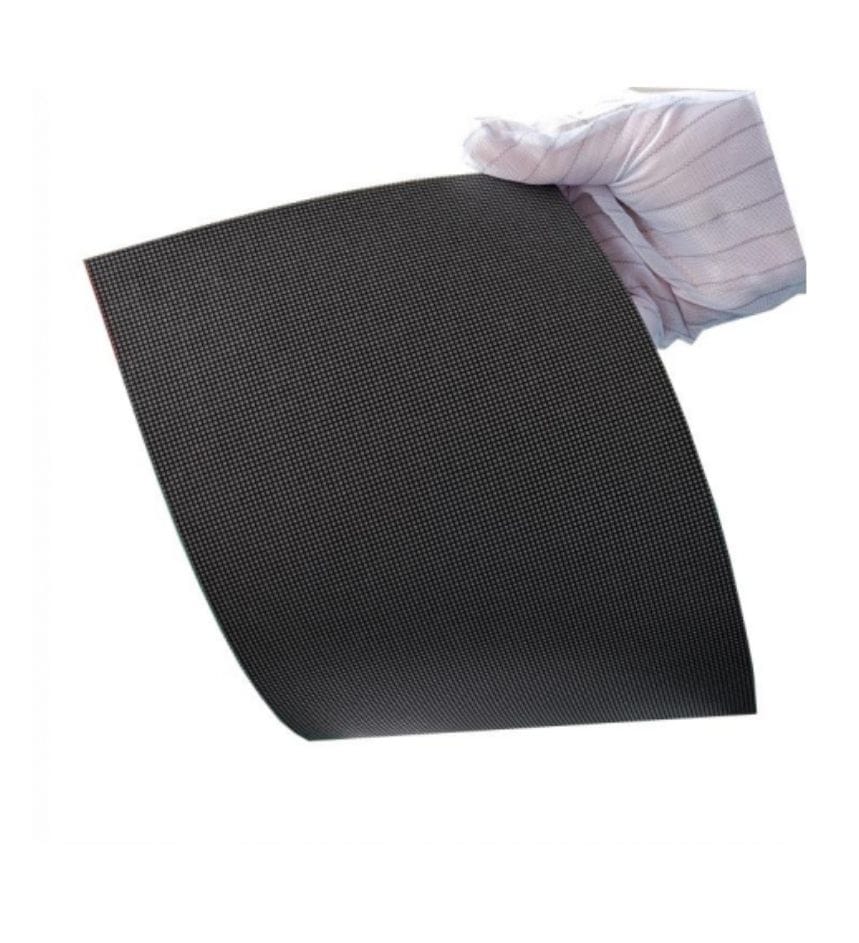

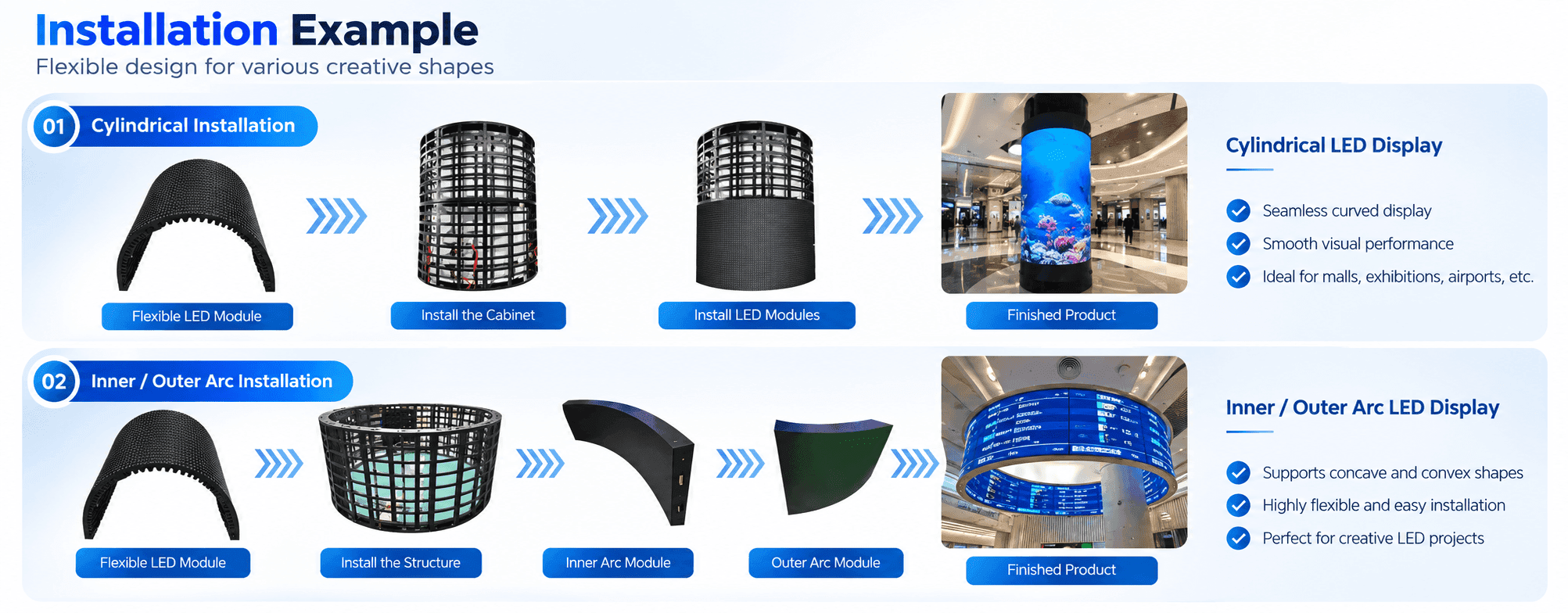

Flexible for Curved Installations

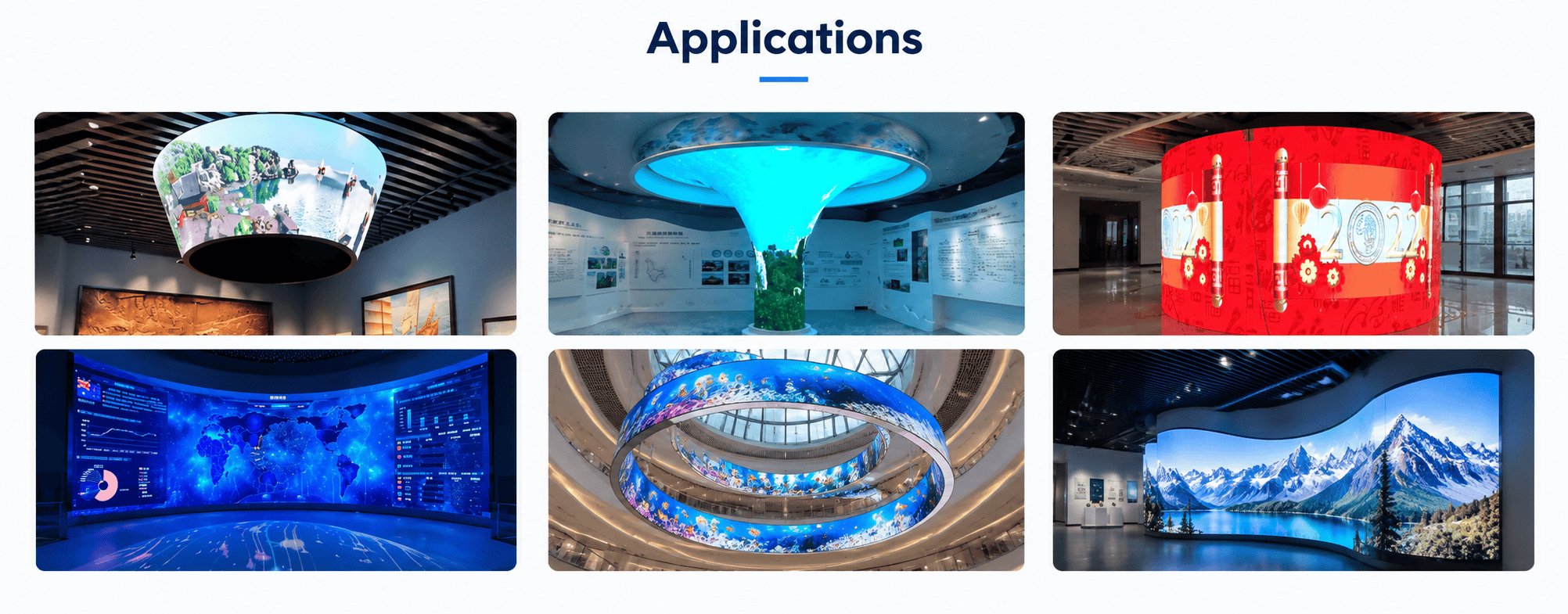

The flexible module supports a minimum bending diameter down to 509 mm and a wide viewing angle of up to 160°, making it suitable for cylindrical, concave, convex and other creative LED display designs.

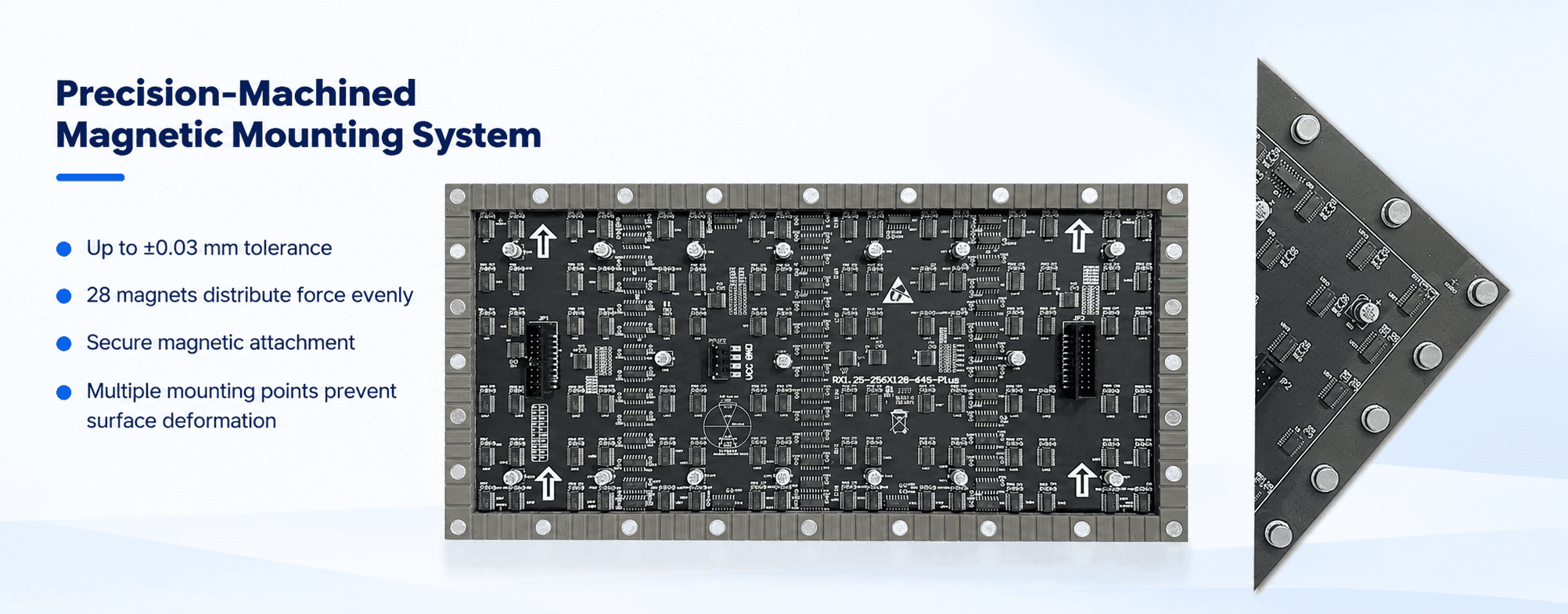

Precision Magnetic Mounting

Strong magnetic mounting allows fast and secure module installation. Precision-machined magnet mounts provide accurate positioning and help maintain better flatness even when the LED screen is installed in highly curved configurations.

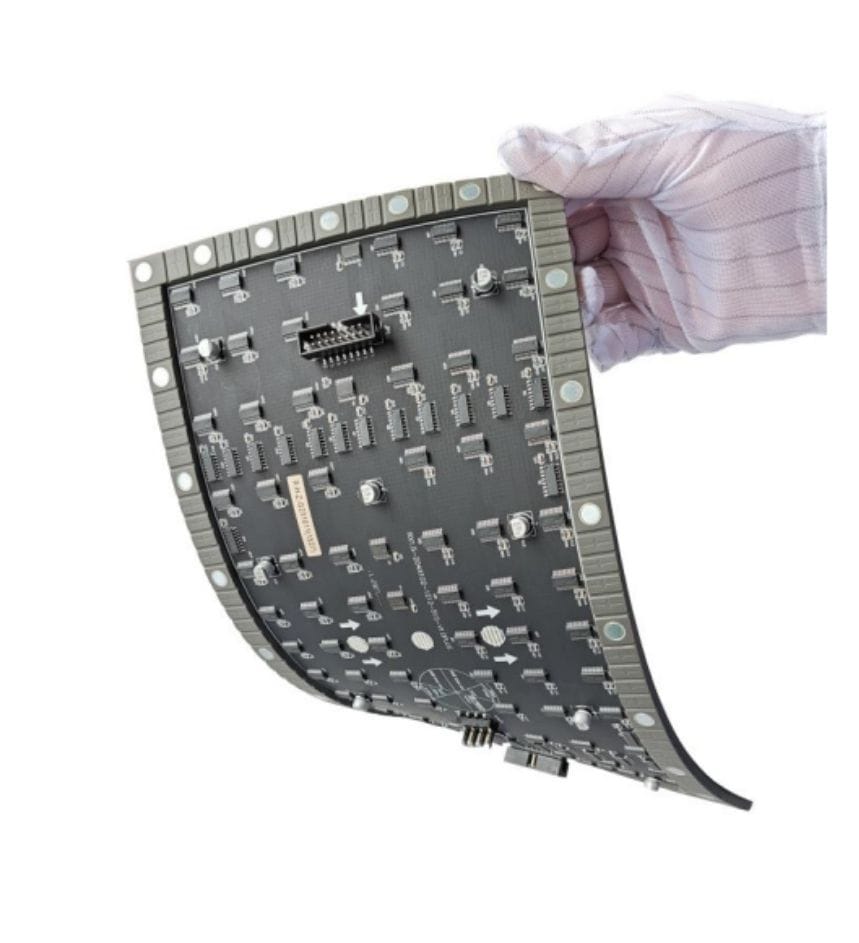

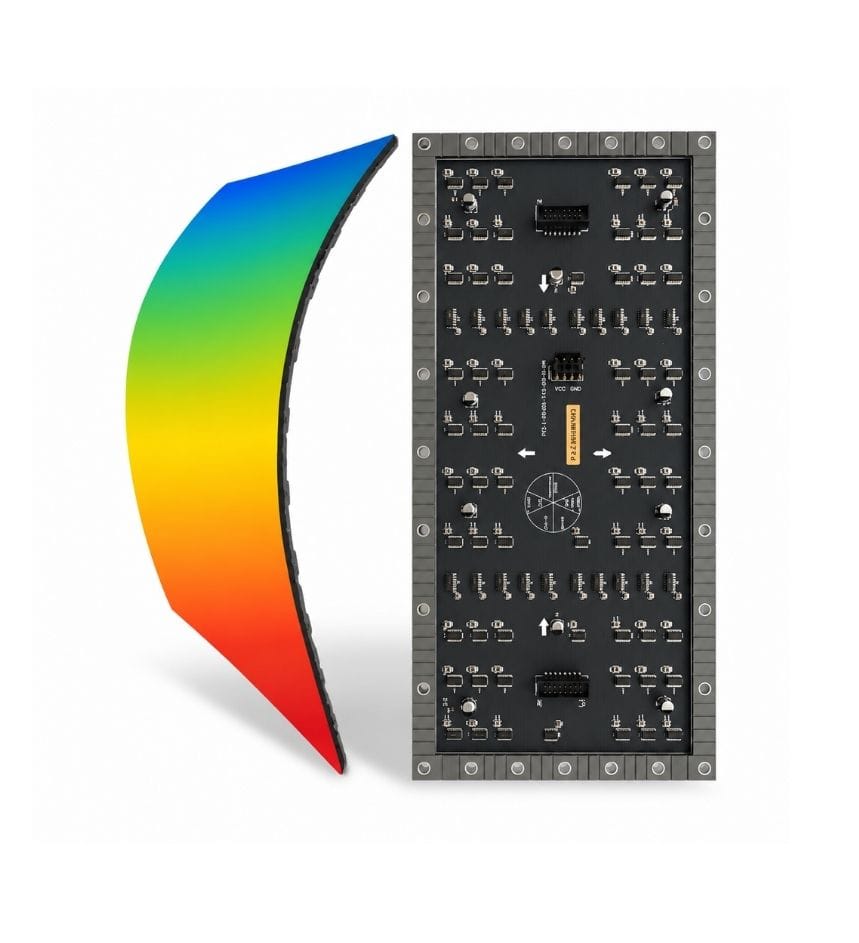

Flexible PCB & Silicone Construction

The module uses a flexible PCB, while the mask and bottom shell are made from high-quality silicone materials, allowing the module to bend smoothly while maintaining structural stability.

Front Installation & Maintenance

The front-service power board design supports front installation and maintenance. Modules and components can be accessed easily from the front with appropriate service tools.

ParameterP1.25P1.538P1.568P1.667P1.86P2P2.5P3.076P4
Pixel Configuration1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B
LED PackageSMD1010SMD1212SMD1212SMD1212SMD1212SMD1515SMD1515SMD1515SMD2121
Pixel Density (pixels/m²)640,000422,500406,406360,000288,906250,000160,000105,62562,500
Module Dimensions (mm)320 × 160 × 5.25 (L × H × T)
Module Resolution (pixels)256 × 128208 × 104204 × 102192 × 96172 × 86160 × 80128 × 64104 × 5280 × 40
Scan Mode1/641/521/511/481/431/401/321/261/20
Refresh Rate (Hz)≥1920–3840–7680
Frame Rate (Hz)50/60
Grayscale (bit)12–16, adjustable
Signal InterfaceHUB75
Module Base MaterialSilicone soft shell
Module Weight (kg/pc)0.3340.3300.3250.3180.3160.3150.2690.2520.230
Cabinet DimensionsCustomizable based on module size
Cabinet Flatness (mm)≤0.3≤0.3≤0.3≤0.3≤0.3≤0.3≤0.3≤0.3≤0.3
Ingress ProtectionIP45
Installation & ServiceFront/rear installation & front/rear service
Brightness (nits)650–800
Color Temperature (K)3000–10,000, adjustable
Brightness Uniformity97%
Viewing Angle (H/V)≥160° / ≥140°
Contrast Ratio5000:1
Module Supply Voltage, DC (V)55554.54.54.54.54.5
Max. Module Current, DC (A)55554.54.54.54.54.5
Max. Module Power (W/pc)2525252522.522.522.522.522.5
Input Voltage, AC (V)110–220, customizable
Peak Power Consumption (W/m²)490490490490440440440440440
Average Power Consumption (W/m²)165165165165150150150150150
Typical Lifespan (hours)100,000
Operating Temperature (°C)-10 to 50
Storage Temperature (°C)-20 to 60
Operating Humidity (RH)20–85% (non-condensing)
Storage Humidity (RH)20–80% (non-condensing)
