Indoor LED displays are widely used in retail stores, shopping malls, conference rooms, hotels, and exhibition halls. Proper installation is essential to ensure excellent image quality, stable performance, and a long service life.
In this guide, we’ll walk you through the basic steps for installing an indoor LED display.
Step 1: Choose the Right Installation Location
Before installation, evaluate the site carefully.
Consider the following:
- A flat and solid mounting surface
- Reliable power supply
- Good viewing angle
- Adequate ventilation
- Easy access for future maintenance
A well-planned location helps improve both display performance and user experience.

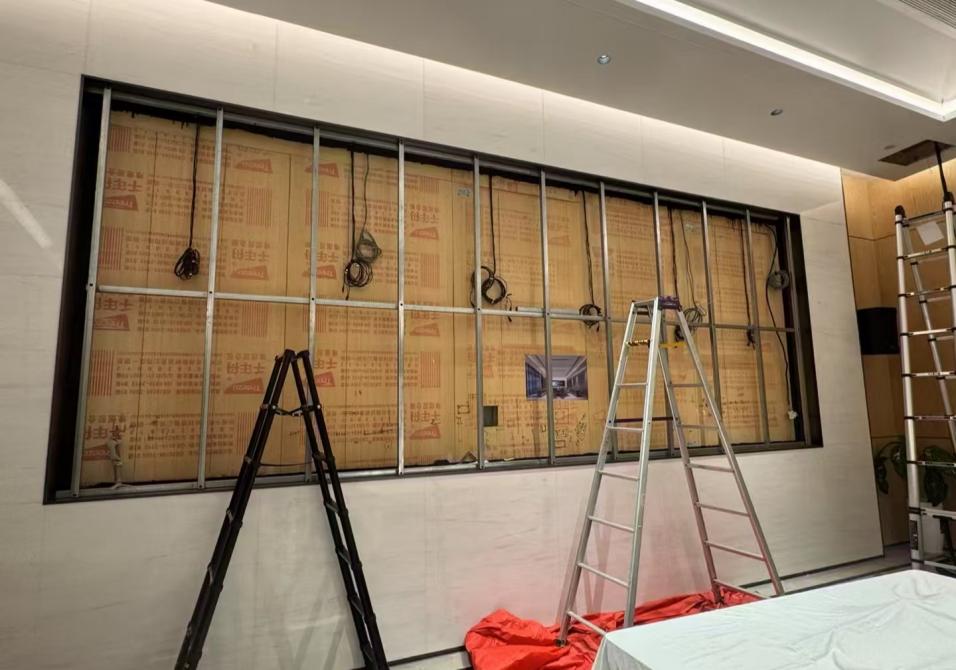

Step 2: Prepare the Installation Structure
The mounting structure should be designed according to the size and weight of the LED display.
Before installing the screen, make sure:
- The frame is securely fixed
- The surface is level
- All mounting points are properly aligned
A stable structure provides a solid foundation for the display.

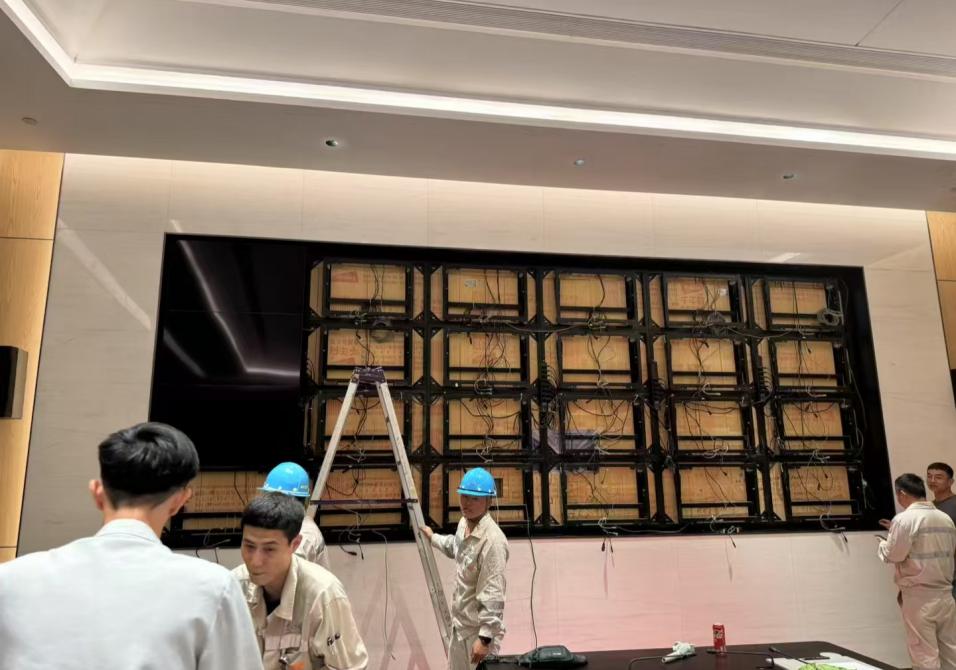

Step 3: Install the LED Cabinets
Mount the LED cabinets one by one according to the installation plan.
During installation:
- Keep each cabinet level
- Tighten all screws securely
- Align the cabinet edges carefully
- Avoid applying excessive force to the LED modules
Proper alignment creates a smooth and seamless display surface.
Step 4: Connect Power and Signal Cables
After the cabinets are installed, connect the power and signal cables.
Check that:
- Power cables are securely connected
- Signal cables follow the correct sequence
- Cable connections are firm and organized
- No cables are pinched or damaged
Neat cable management also makes future maintenance easier.
Step 5: Configure the Control System
Once the hardware is connected, configure the LED control system.
Typical settings include:
- Screen resolution
- Cabinet layout
- Brightness adjustment
- Refresh rate
- Color calibration
Correct configuration ensures the display operates as expected.
Step 6: Test the Display
Before putting the display into daily operation, perform a complete system test.
Verify:
- Image quality
- Color consistency
- Brightness uniformity
- Signal transmission
- Normal operation of every cabinet
If any issues are found, resolve them before the installation is completed.
Common Installation Mistakes
To achieve the best results, avoid these common mistakes:
- Uneven cabinet alignment
- Loose power or signal connections
- Incorrect controller settings
- Poor cable organization
- Skipping the final system test
Careful installation helps reduce maintenance costs and improves long-term reliability.
Conclusion
Installing an indoor LED display is a straightforward process when each step is completed carefully. From selecting the installation location to testing the finished screen, every stage contributes to the overall performance and lifespan of the display.
Whether you’re installing an LED display for a retail store, meeting room, or commercial venue, proper planning and installation will help ensure reliable operation and an excellent viewing experience.
