Are Outdoor LED Screens Waterproof? A Complete Guide to IP Ratings
Outdoor LED screens are designed to operate in changing weather, but “waterproof” is not an absolute promise. Their actual protection depends on the IP rating, cabinet construction, installation and maintenance.
Can an outdoor LED screen operate in the rain?
Yes, a properly specified and installed outdoor LED display can operate in rain. However, it is more accurate to describe the screen as weather-resistant than completely waterproof. Water resistance applies only when the display is assembled correctly, all seals and connectors are intact, and the installation follows the manufacturer’s requirements.
An LED module may have a high protection rating while cable entries, power boxes or cabinet joints remain vulnerable. Buyers should therefore evaluate the complete display system rather than relying on one IP number in a brochure.
What does an IP rating mean?
An IP rating describes protection against solid particles and water. The first digit refers to protection from solids such as dust. The second digit refers to protection from water. A higher number generally indicates stronger protection under the defined test conditions, but it does not make a product suitable for every environment.
IP65 is common for the front of many outdoor LED displays because it indicates dust-tight construction and protection against water jets. The rear rating may be different, particularly on screens designed for installation against a sealed wall or inside a protected structure. Always confirm both the front and rear ratings before placing an order.
IP65, IP66 and IP67: what is the difference?
IP65 protects against dust and water jets. IP66 adds protection against more powerful water jets. IP67 covers temporary immersion under defined laboratory conditions. These ratings describe test performance, not permission to install a screen underwater or ignore drainage and sealing.
For most outdoor advertising applications, the right choice depends on rainfall, wind, dust, installation height, rear access and whether the back of the cabinet is exposed. A roadside billboard in a dusty region has different requirements from a wall-mounted screen under a canopy.
What parts need weather protection?
A reliable outdoor system needs more than sealed LED modules. Cabinet seams, module gaskets, power supplies, receiving cards, signal connectors, power connectors, fans, vents and cable entry points all require suitable protection. Corrosion-resistant hardware and conformal coating may also be relevant in coastal or highly humid locations.

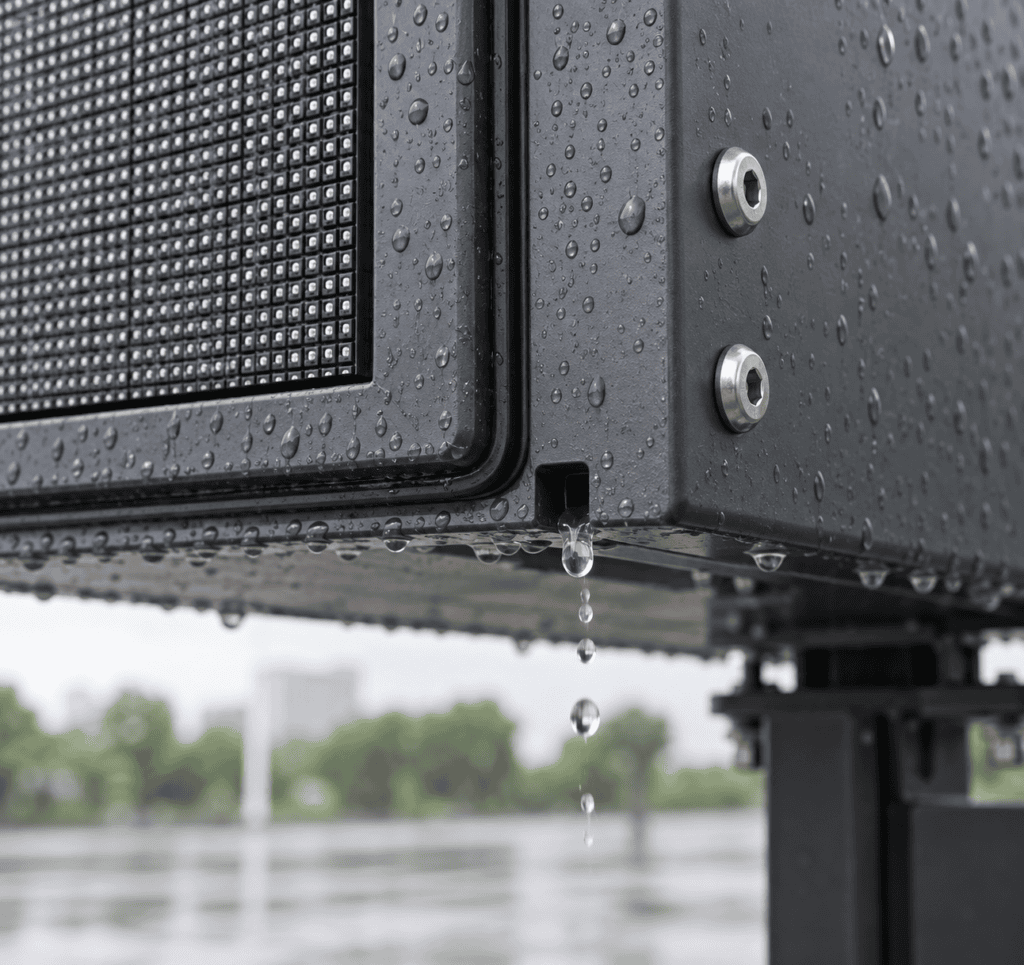

Drainage is equally important. A screen should be installed so that water cannot pool inside the structure. Cable loops, improperly sealed holes and a flat top surface can guide water into areas that would otherwise stay dry.
Installation practices that reduce water damage

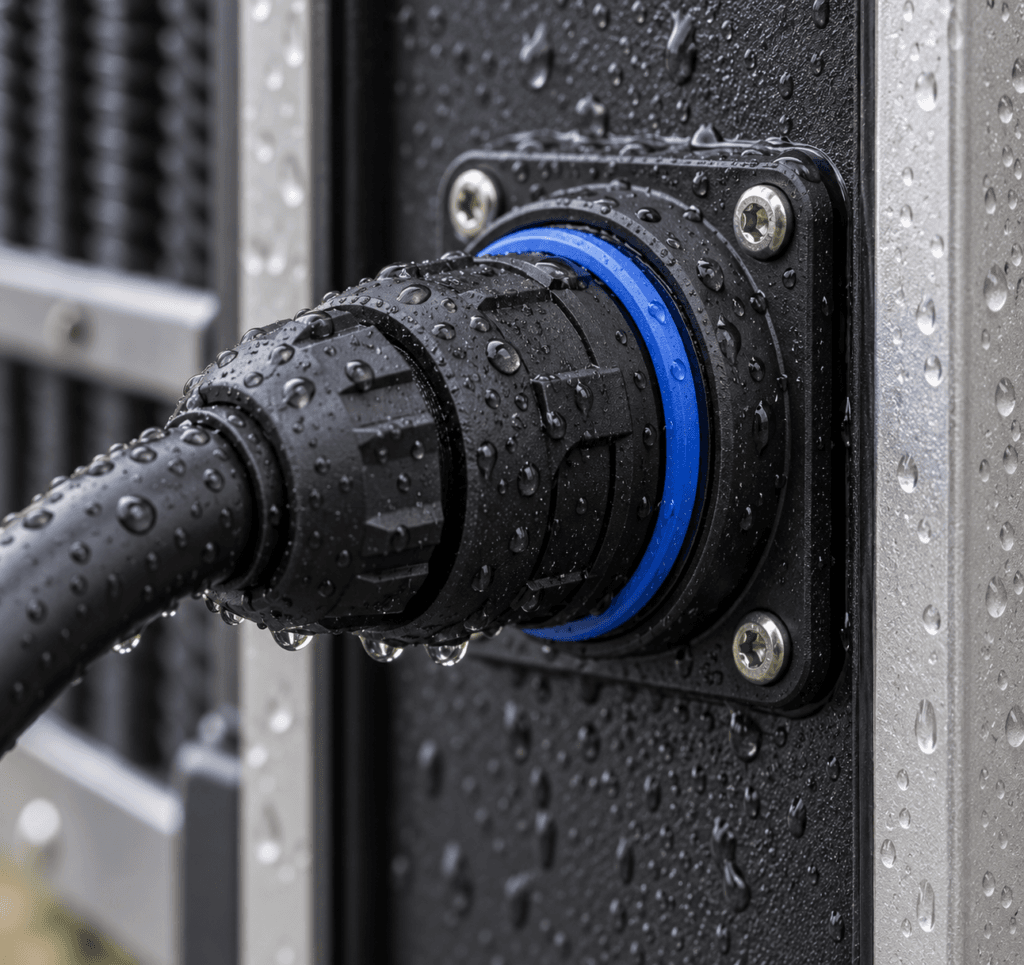

Use outdoor-rated power and signal connectors, seal cable entries, maintain the designed cabinet orientation and provide drainage paths. The supporting steel structure should resist wind loads and allow safe maintenance access. A qualified electrician should complete grounding, lightning protection and power distribution according to local requirements.
Do not cover designed ventilation paths without approval. Blocking airflow can cause overheating, while an unsuitable ventilation opening can allow water entry. The enclosure and thermal design need to work together.
Maintenance checklist for rainy and humid environments
Inspect module seals, cabinet doors, locks, connectors and cable glands regularly. Replace damaged gaskets rather than repeatedly adding sealant. Check the screen after strong storms and remove debris that blocks drainage or ventilation. Keep spare modules and compatible power supplies available for faster service.
If the display has been stored or left unused in a humid environment, follow the supplier’s recommended start-up procedure. Gradual operation may be advisable to remove moisture before the display runs at full brightness.
How to choose a weather-resistant outdoor LED display
Tell the supplier whether the screen is wall-mounted, pole-mounted, rooftop-mounted or freestanding. Share the local temperature range, rainfall, dust level, distance from the sea, viewing distance and access conditions. Ask for the front and rear IP ratings, cabinet material, connector type, cooling method and maintenance direction.
ZILANGLED supplies outdoor LED display solutions for advertising and fixed-installation projects. Send us your screen size, installation drawing and local environment, and our team can recommend a suitable pixel pitch, cabinet configuration and protection level.
