Rental LED Screen Guide for Concerts and Outdoor Events
1. Introduction
Rental LED screens are widely used for concerts, conferences, exhibitions, festivals, product launches and corporate events. They provide high brightness, flexible screen sizes and stronger visual impact than traditional projection systems.
However, choosing the right rental LED screen for live events is not simply about selecting the smallest pixel pitch. You also need to consider the venue, viewing distance, brightness, refresh rate, installation method and maintenance requirements.
Here are the most important factors to consider.
1. Indoor or Outdoor Use
The first step is to confirm where the LED screen will be installed.
An indoor rental LED screen usually requires:
- Fine pixel pitch
- Moderate brightness
- Accurate color performance
- Lightweight cabinet design
- Quiet operation
An outdoor rental LED display needs:
- Higher brightness
- Weather-resistant modules and connectors
- Strong cabinet construction
- Reliable heat dissipation
- Stable performance in changing weather
For outdoor daytime events, the screen must be bright enough to remain visible under sunlight. Indoor screens should not be excessively bright, especially when they are used close to the audience or recorded by cameras.

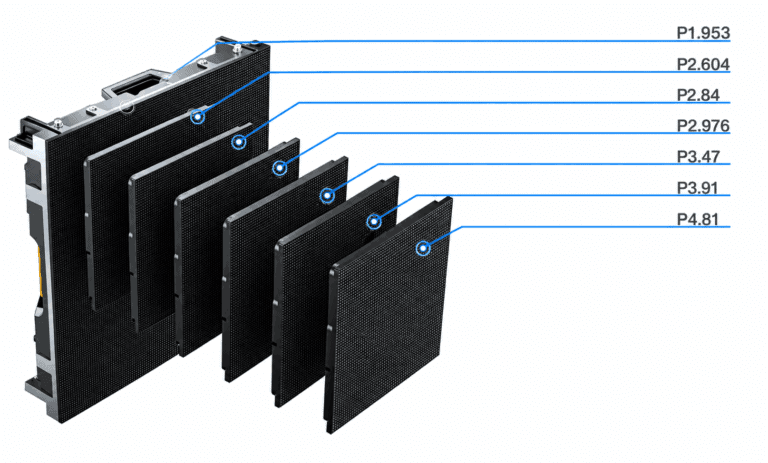

2. Choose the Right Pixel Pitch
Pixel pitch is the distance between two adjacent LED pixels. A smaller pixel pitch provides higher resolution and better image quality at close viewing distances.
Common options for event LED screens include:
| Application | Recommended Pixel Pitch |
|---|
| Indoor conferences and exhibitions | P1.9–P2.9 |
| Indoor stages and corporate events | P2.6–P3.9 |
| Outdoor concerts and festivals | P2.9–P4.8 |
| Large outdoor stages | P3.9–P4.8 or above |
As a practical guideline, the pixel-pitch number can be used as an approximate minimum viewing distance in meters. For example, a P3.9 screen is normally suitable when the closest viewers are around four meters away.
The smallest pixel pitch is not always the best choice. If most of the audience is far from the stage, a P3.9 or P4.8 display may provide better value than a fine-pitch screen.
3. Match Brightness to the Venue
Brightness is measured in nits. The required brightness depends on the installation environment and ambient light.
Typical brightness ranges are:
- Indoor events: approximately 800–1,500 nits
- Outdoor shaded areas: approximately 3,500–4,500 nits
- Outdoor daytime events: approximately 4,500–6,500 nits
Brightness should be adjustable through the LED control system. This allows operators to reduce brightness for indoor events or nighttime use while maintaining good grayscale and image detail.
When comparing quotations, ask whether the listed value refers to typical operating brightness or maximum brightness.
4. Check the Refresh Rate
Refresh rate is especially important when the event is photographed, filmed or livestreamed.
A low-refresh-rate display may look normal to the audience but show flickering or dark scan lines on camera. For professional events, a refresh rate of at least 3,840 Hz is generally recommended.
A 7,680 Hz rental LED screen can be considered for television broadcasts, high-frame-rate cameras and other demanding video applications.
Final camera performance also depends on the driver IC, scan mode, camera shutter speed and brightness settings. If the LED wall will appear prominently in a livestream, request a camera test before ordering.
5. Consider Cabinet Size and Installation Speed
Rental LED screens are installed and dismantled frequently. A lightweight and easy-to-operate cabinet can reduce labor costs and setup time.
The most common rental cabinet sizes are:
- 500 × 500 mm
- 500 × 1,000 mm
A 500 × 500 mm cabinet offers more flexibility for small or creative screens. A 500 × 1,000 mm cabinet allows crews to assemble large LED video walls faster.
Useful cabinet features include:
- Lightweight die-cast aluminum construction
- Quick-lock connections
- Alignment pins
- Protective corner guards
- Strong carrying handles
- Front and rear maintenance
- Removable power and control boxes
If both cabinet sizes will be used together, confirm that their modules, locks and electrical systems are fully compatible.
6. Confirm the Installation Method
Rental LED screens can be hung from a truss or installed on a ground-support structure.
Hanging installation is commonly used for concerts, festivals and exhibition booths. Ground stacking is suitable for conference rooms, ballrooms and venues where overhead rigging is unavailable.
Before installation, confirm:
- Total screen weight
- Maximum hanging height
- Rigging-bar capacity
- Wind conditions for outdoor events
- Ground-support requirements
- Venue safety regulations
For creative stages, rental cabinets with adjustable angle locks can also create concave or convex LED walls. This is useful for curved stage backgrounds, DJ booths and exhibition designs.
7. Check Maintenance and Spare Parts
Event equipment must be repaired quickly. A service-friendly rental LED display should allow technicians to replace modules, power supplies and receiving cards without dismantling the whole screen.
Recommended spare parts include:
- LED modules from the same production batch
- Power supplies
- Receiving cards
- Power and data cables
- Cabinet locks and accessories
Modules from different production batches may show visible color differences. Ordering calibrated spare modules together with the main screen helps maintain image consistency.
8. Compare the Complete System Cost
Do not compare suppliers based only on the price per square meter. A complete LED video wall rental system may also require:
- Flight cases
- Hanging bars
- Ground-support structures
- Power and signal cables
- Video processor
- Spare parts
- Installation accessories
For rental companies, a slightly higher initial investment may offer better long-term value if the screen is lighter, faster to install and easier to maintain.
Conclusion
Choosing the right rental LED screen for live events requires balancing image quality, installation efficiency, durability and budget.
Pixel pitch should match the viewing distance, brightness should suit the venue, and a high refresh rate is essential for camera-friendly performance. Lightweight cabinets, fast locks and accessible spare parts can also improve efficiency during repeated rental use.
ZILANG LED provides indoor and outdoor rental LED displays for concerts, conferences, exhibitions and stage events. Available options include multiple pixel pitches, 500 × 500 mm and 500 × 1,000 mm cabinets, high-refresh-rate configurations and curved installation solutions.
Send us your screen size, venue type, viewing distance and installation method to receive a suitable configuration and quotation.
