Stage LED Display for Concerts & Live Events

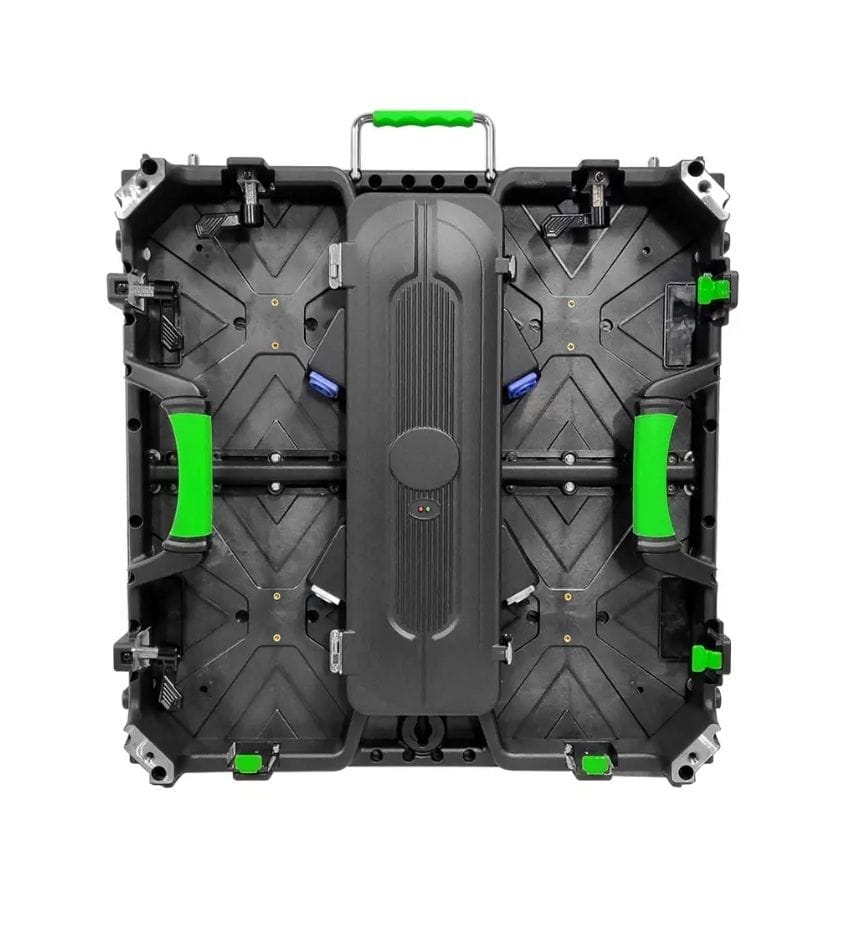

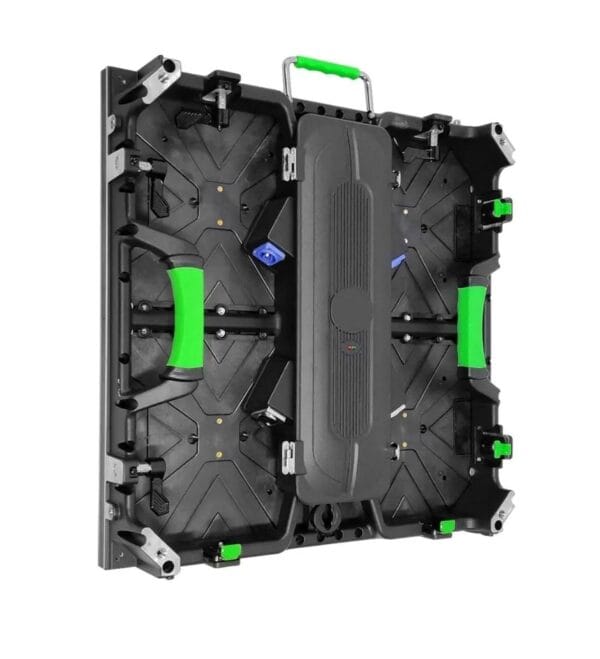

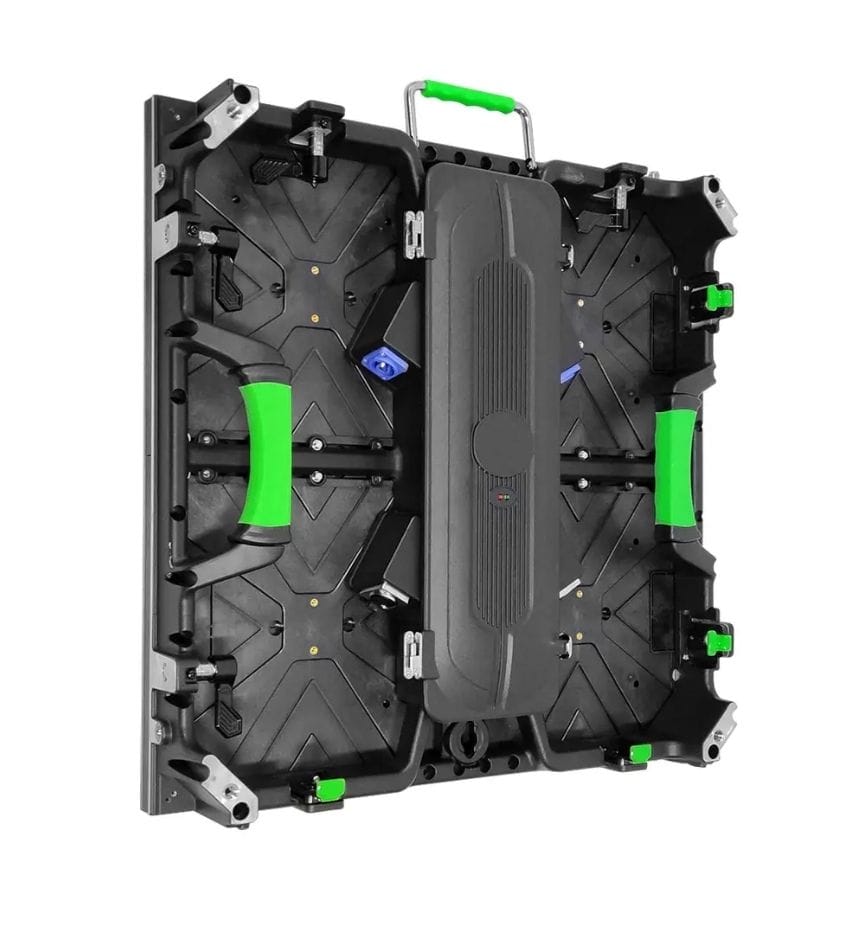

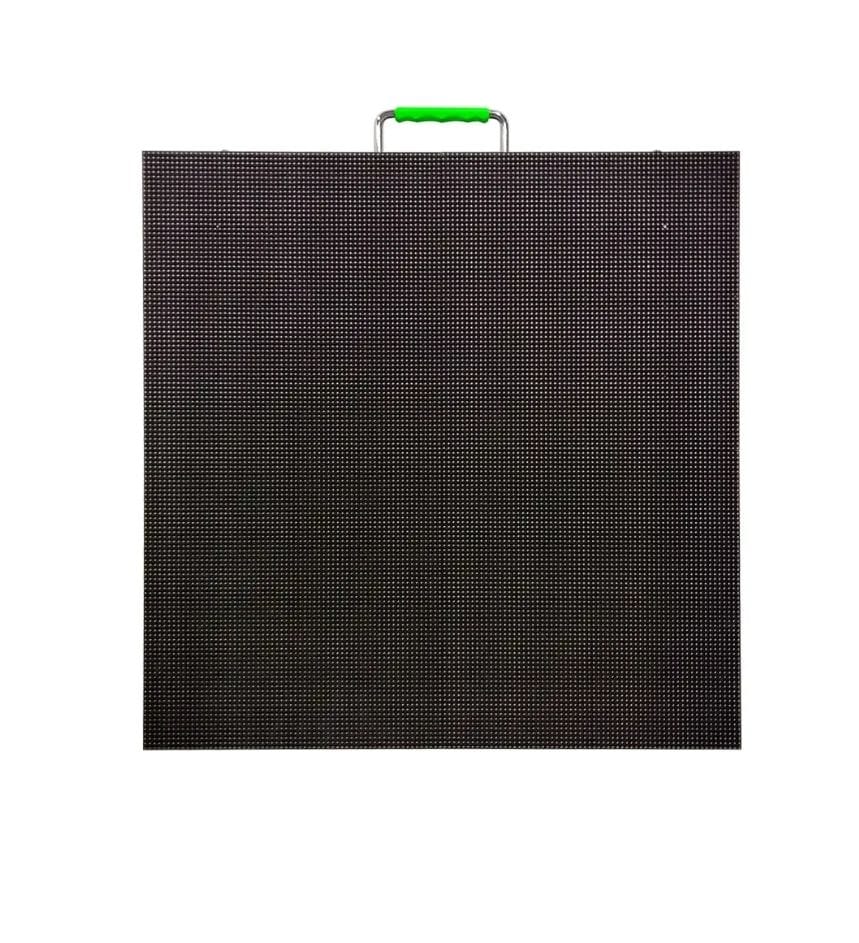

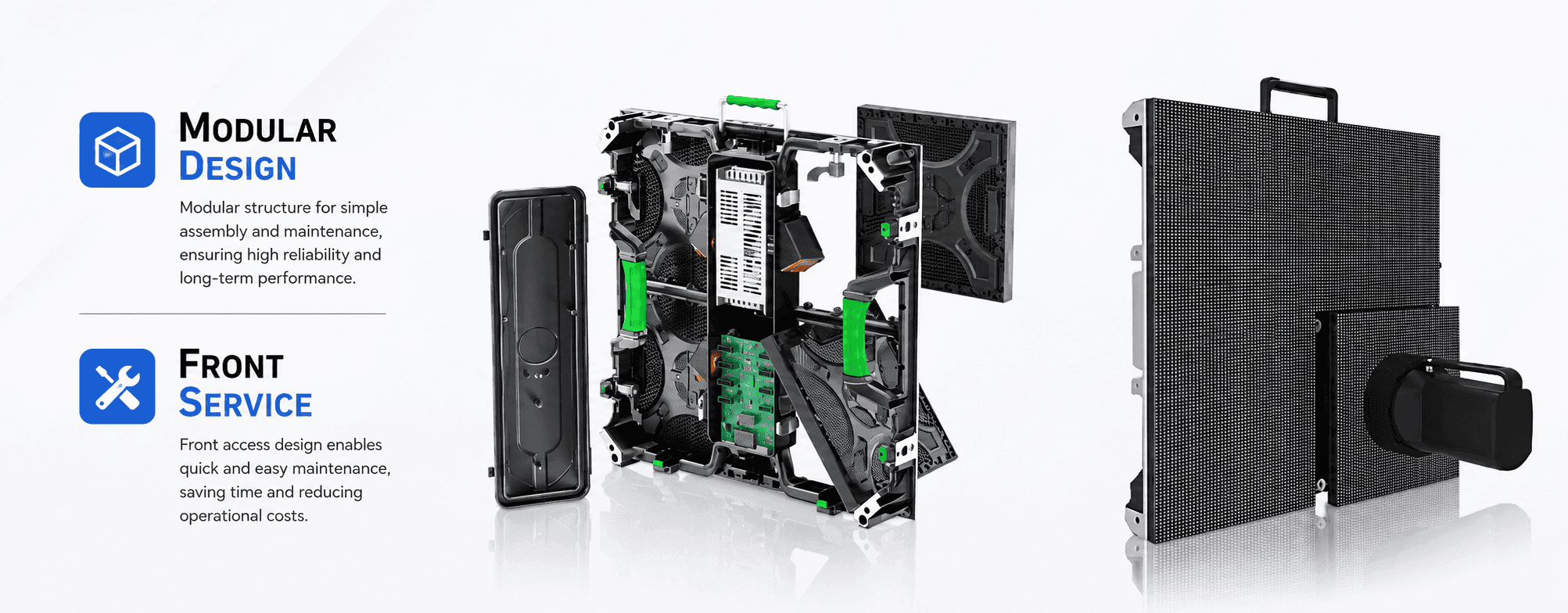

Our Stage LED Display is engineered for concerts, festivals, touring shows, corporate events, and other live productions where fast installation and reliable visual performance matter. The modular cabinet design supports flexible stage configurations, while lightweight die-cast aluminum cabinets, quick-lock connections, and front/rear service access help simplify setup, dismantling, and maintenance.
Available in multiple pixel pitches and 500 × 500 mm / 500 × 1000 mm cabinet sizes, the system can be configured for both indoor and outdoor event environments. High brightness, a ≥3840Hz refresh rate, and wide viewing angles deliver clear, camera-friendly visuals across large venues. Flexible cabinet combinations also make it easier to build flat or creative stage LED screens for different event layouts.
| Specification | P2.604 | P2.97 | P3.91 | P4.81 |
| Pixel Pitch (mm) | 2.604 | 2.97 | 3.91 | 4.81 |
| Pixel Density (pixels/m²) | 147,456 | 112,896 | 65,536 | 43,264 |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (cd/m²) | ≥4,500 | ≥4,500 | ≥4,500 | ≥4,500 |
| Scan Mode | 1/24 | 1/21 | 1/16 | 1/13 |
| Module Size (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Cabinet Size (mm) | 500 × 500 / 500 × 1000 | 500 × 500 / 500 × 1000 | 500 × 500 / 500 × 1000 | 500 × 500 / 500 × 1000 |
| Cabinet Resolution | 192 × 192 | 168 × 168 | 128 × 128 | 104 × 104 |
| Cabinet Material | Die-Cast Aluminum | Die-Cast Aluminum | Die-Cast Aluminum | Die-Cast Aluminum |
| Cabinet Weight | 7 kg | 7 kg | 7 kg | 7 kg |
| Power Consumption (Max./Avg.) | 800 / 350–400 W/m² | 800 / 350–400 W/m² | 800 / 350–400 W/m² | 800 / 350–400 W/m² |
| Service Access | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Refresh Rate (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Viewing Angle (H/V) | 160° / 140° | 160° / 140° | 160° / 140° | 160° / 140° |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
