Introduction
P3.91 and P4.81 are two of the most common pixel pitches for outdoor LED displays. Both can deliver bright, high-impact images, but they are designed for slightly different viewing distances, budgets and applications. The right choice is not simply the smaller number. It depends on how close the audience will stand, the screen dimensions, the content and the expected return on investment.
This guide compares P3.91 and P4.81 in practical terms so buyers can select a suitable configuration without paying for resolution they may not need.
What Do P3.91 and P4.81 Mean
Pixel pitch is the center-to-center distance between adjacent LED pixels, measured in millimeters. A P3.91 screen has pixels 3.91 mm apart, while a P4.81 screen has pixels 4.81 mm apart. The smaller pitch places more pixels in the same area and therefore provides higher resolution at the same physical screen size.

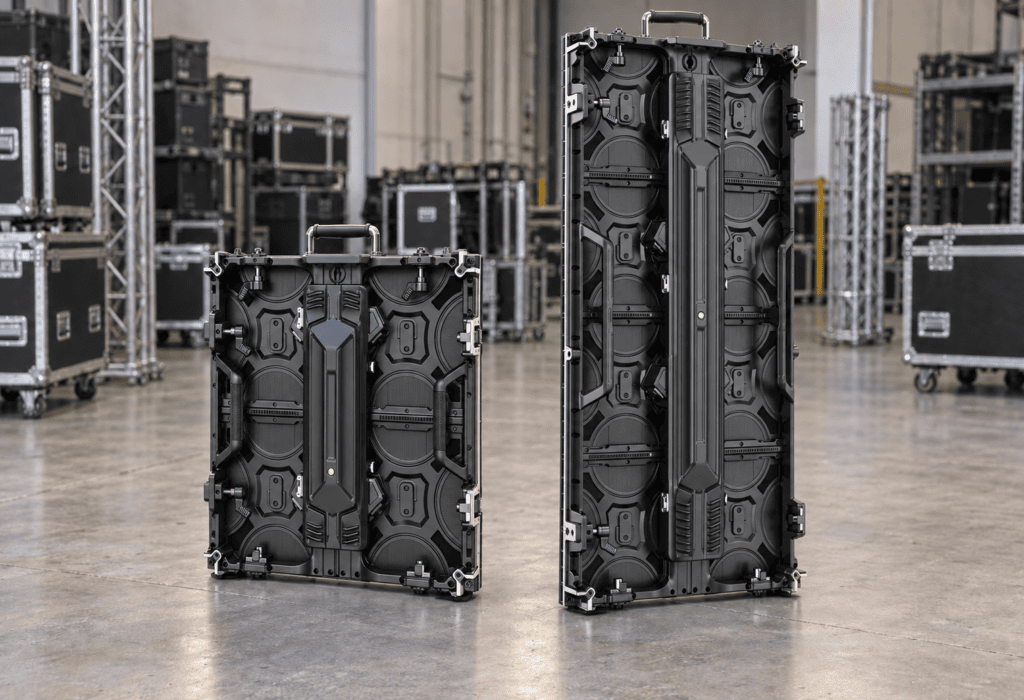

Using common 500 x 500 mm rental cabinets, P3.91 normally provides 128 x 128 pixels per cabinet, while P4.81 normally provides 104 x 104 pixels. Final specifications should always be confirmed with the selected module and cabinet design.
P3.91 vs P4.81 Key Differences
P3.91 is better when viewers are closer or when the content contains smaller text and detailed graphics. P4.81 works well at a longer viewing distance and can reduce the hardware cost for a large screen.
For many outdoor events, a practical minimum viewing distance is approximately 4 meters for P3.91 and 5 meters for P4.81. These are planning references rather than strict limits. Content design, brightness, contrast and viewing angle also affect perceived image quality.
Comparison Table
Item | P3.91 | P4.81 |
Pixel pitch | 3.91 mm | 4.81 mm |
Relative resolution | Higher | Lower |
Suggested close viewing | About 4 m or more | About 5 m or more |
Best suited to | Closer audiences and detailed content | Larger screens and longer viewing |
Relative hardware cost | Usually higher | Usually more economical |
When to Choose P3.91
Choose P3.91 for outdoor stages, brand events, exhibition entrances and retail promotions where the audience may approach the screen. It is also preferable when the display will show detailed product images, presentation text or camera feeds.
When to Choose P4.81
Choose P4.81 for larger outdoor stages, public events and advertising screens viewed mainly from a distance. It is a cost-effective option when the screen area is large and ultra-fine detail is not required.
Other Specifications That Matter
Pixel pitch is only one part of the decision. Buyers should also compare brightness, refresh rate, grayscale, IP rating, cabinet weight, maintenance access, power consumption and control-system compatibility. For outdoor use, weather protection and stable heat dissipation are essential.
Conclusion
Select P3.91 when close viewing and image detail are the priority. Select P4.81 when the audience is farther away and budget efficiency matters more. ZILANG LED can recommend the appropriate pitch after reviewing the screen size, viewing distance, installation environment and content type.
Is P3.91 always better than P4.81?
No. P3.91 offers higher resolution, but P4.81 may provide better value for long-distance viewing.
Can both pitches be used outdoors?
Yes, when the modules and cabinets are designed with suitable brightness, waterproofing and protection.
Which cabinet size is common?
Outdoor rental screens often use 500 x 500 mm and 500 x 1000 mm cabinets, depending on the project.
Planning an LED display project? Send ZILANG LED your screen size, viewing distance, installation location and application requirements. Our team will recommend a suitable configuration and prepare a detailed quotation.
