Flexible Rental LED Display Screen
Flexible Rental LED Display Screen - Image 2
Flexible Rental LED Display Screen - Image 3

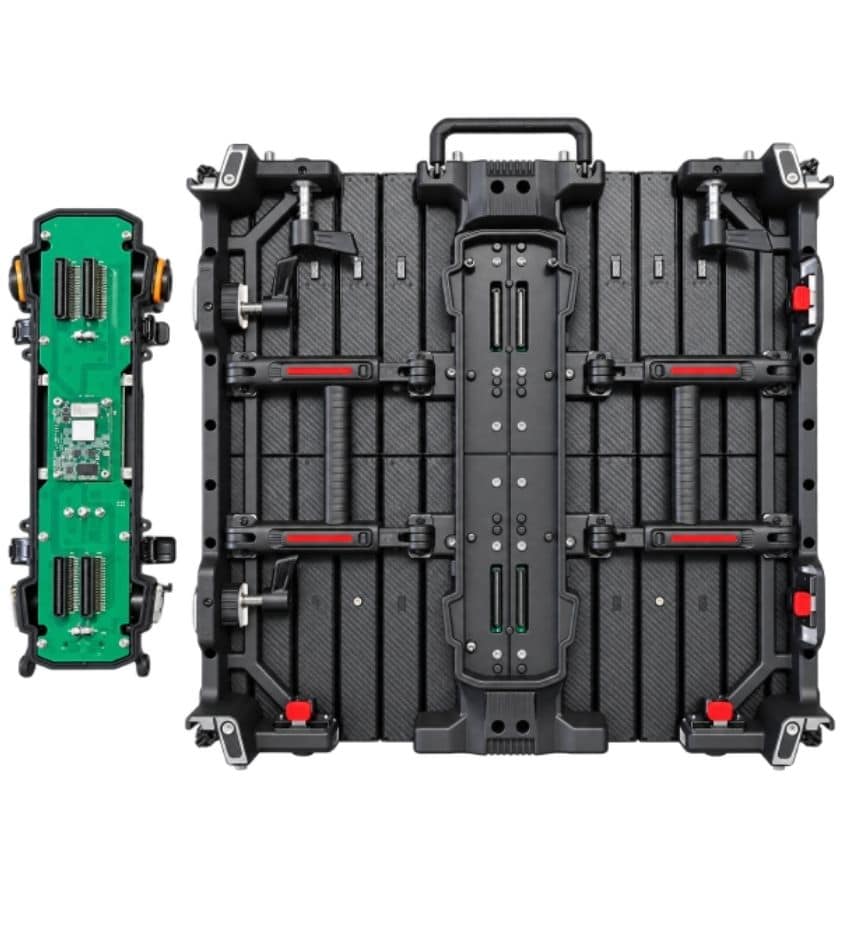

Flexible Rental LED Display Screen

The Flexible Rental LED Display is developed for event professionals who need more freedom than a conventional flat LED screen can provide. Its modular structure supports a wide range of creative layouts, making it easy to adapt the display to different stages, venues and event concepts.

Built with rental applications in mind, the system combines flexible screen configuration, quick installation and reliable performance. It can be assembled into curved video walls, columns and other customized shapes while maintaining a clean and seamless visual appearance.

Request a Quote
Categories: , Product ID: 23148

Description

Key Features of Our Flexible Rental LED Screen

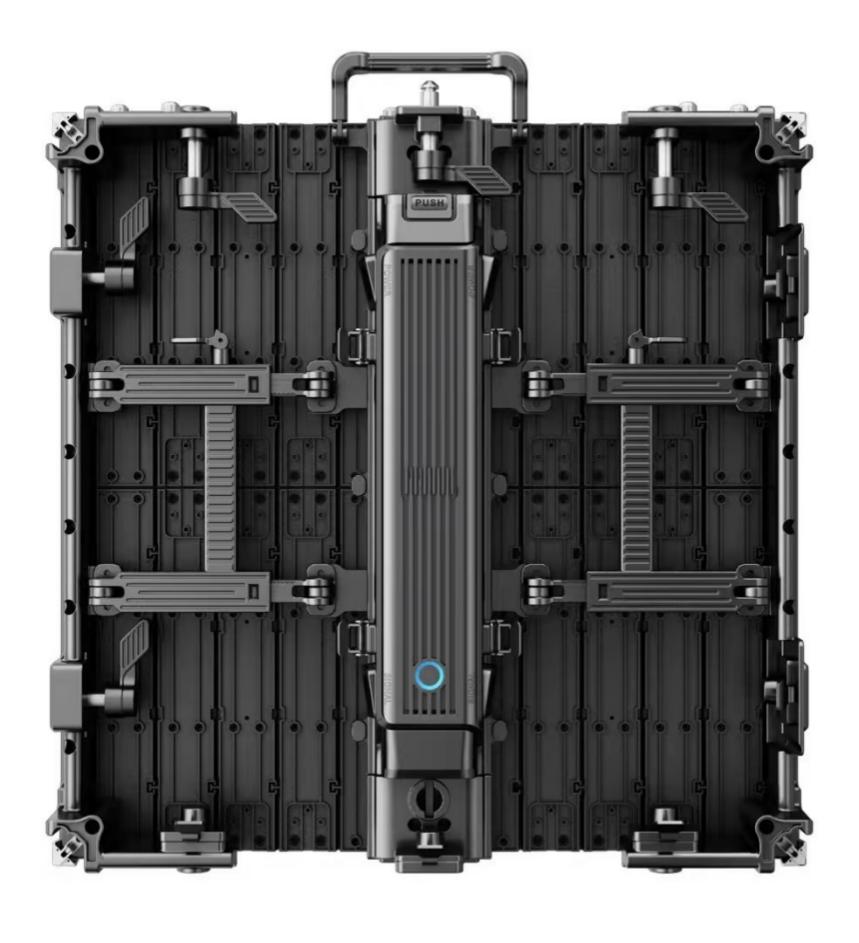

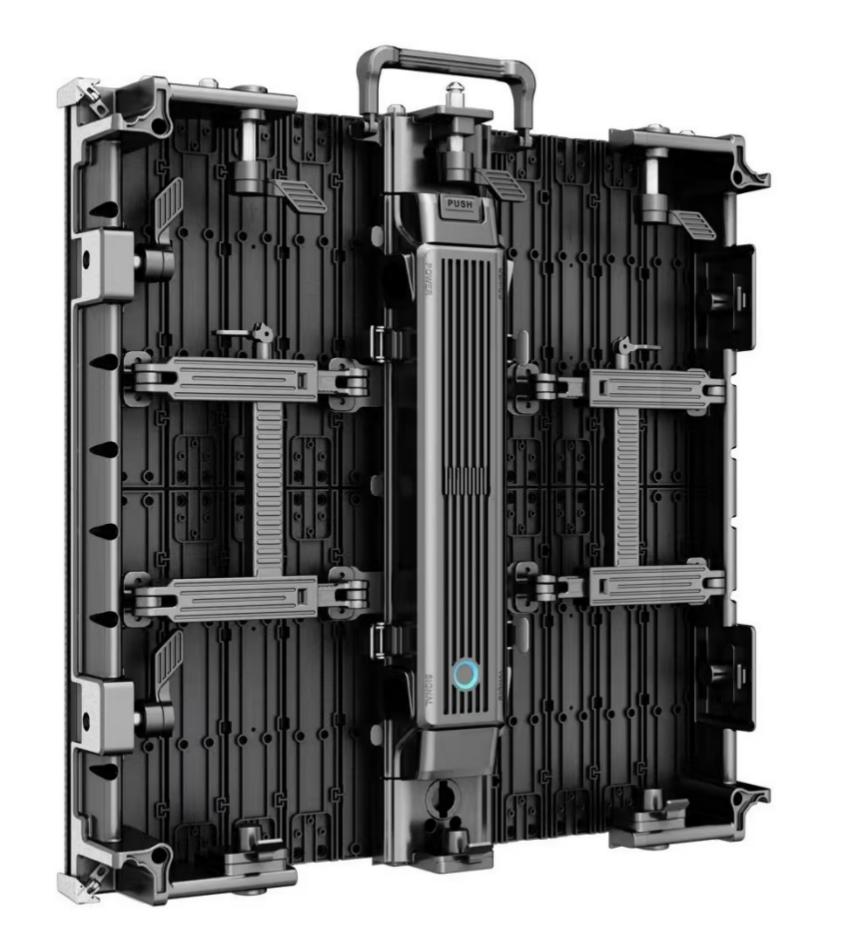

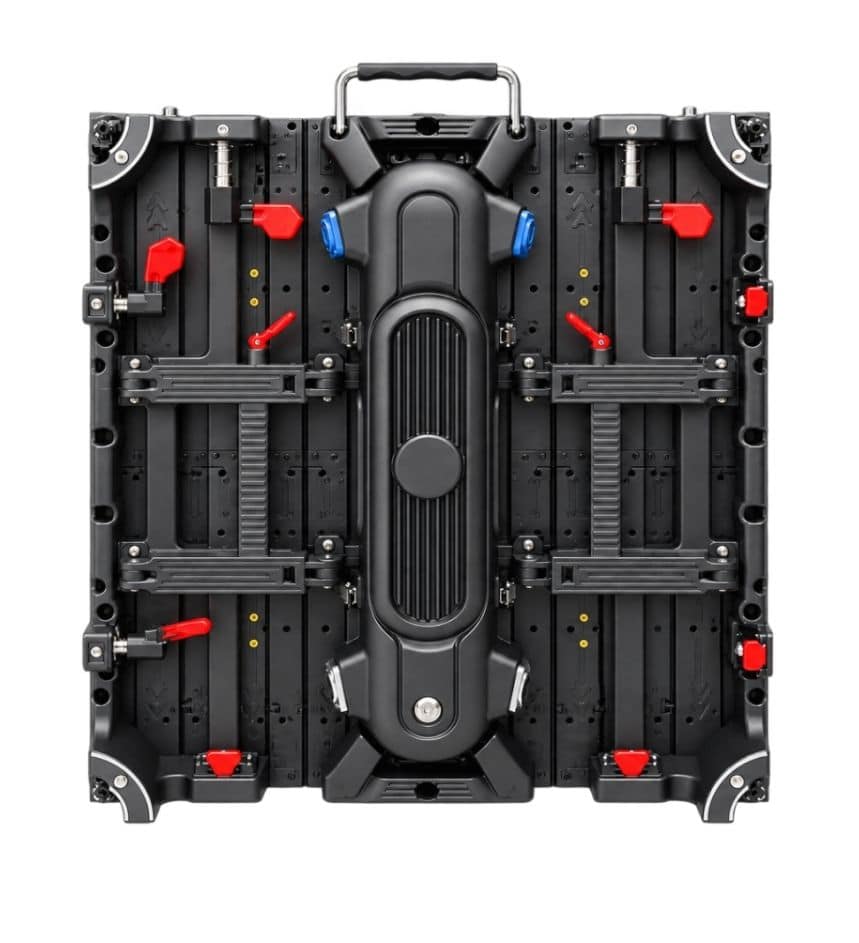

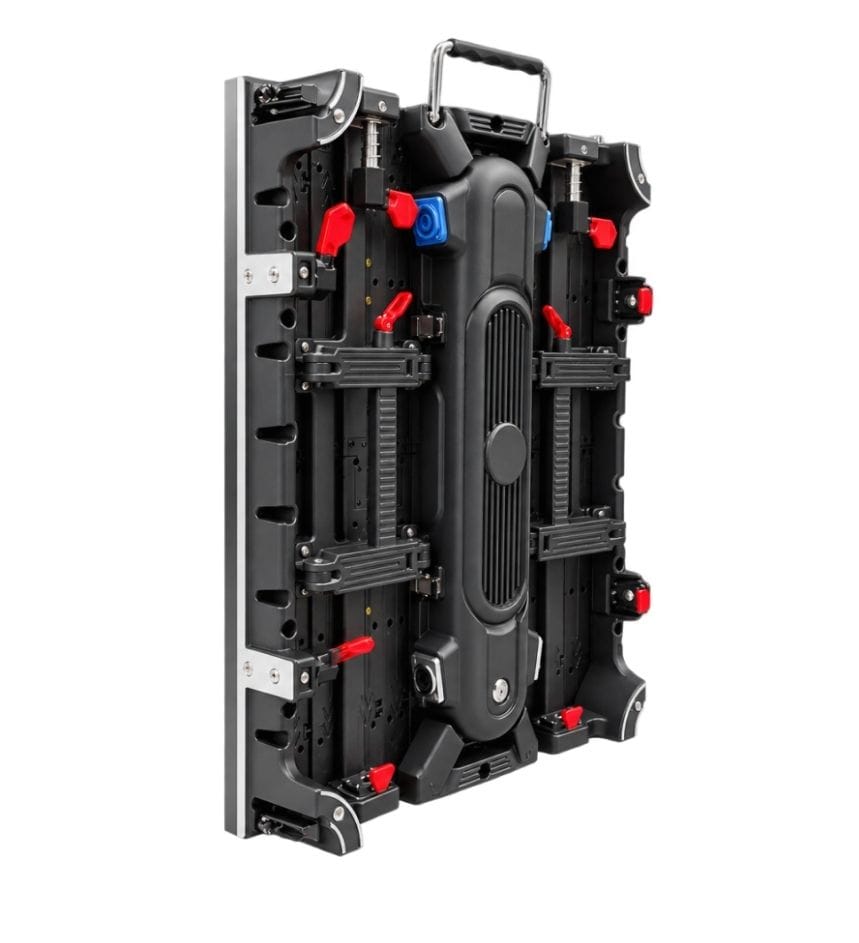

Durable Aluminum Cabinet

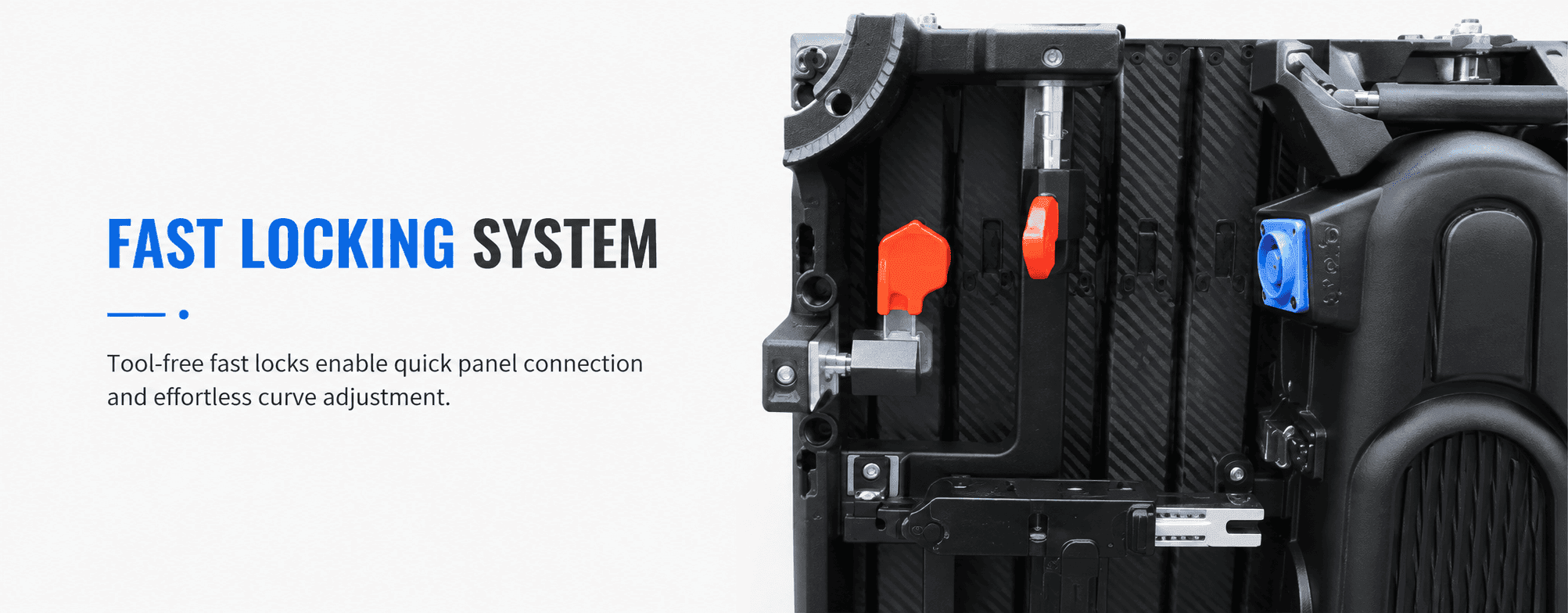

Die-cast aluminum construction with stainless steel handle and secure locks for outdoor use.

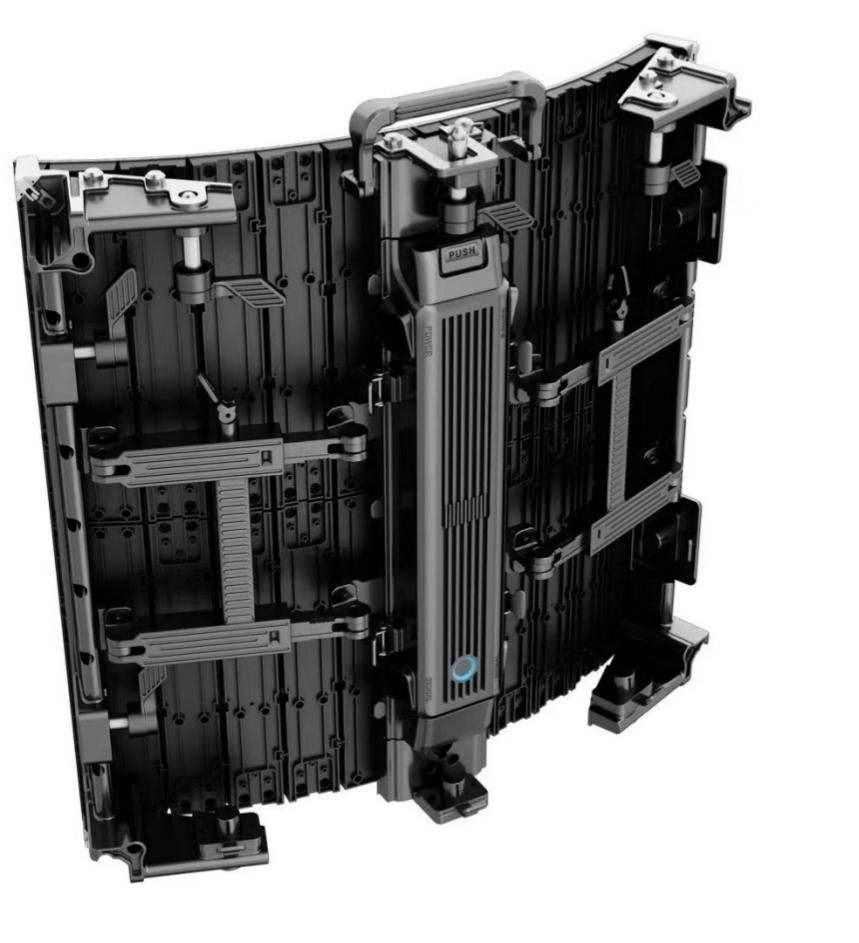

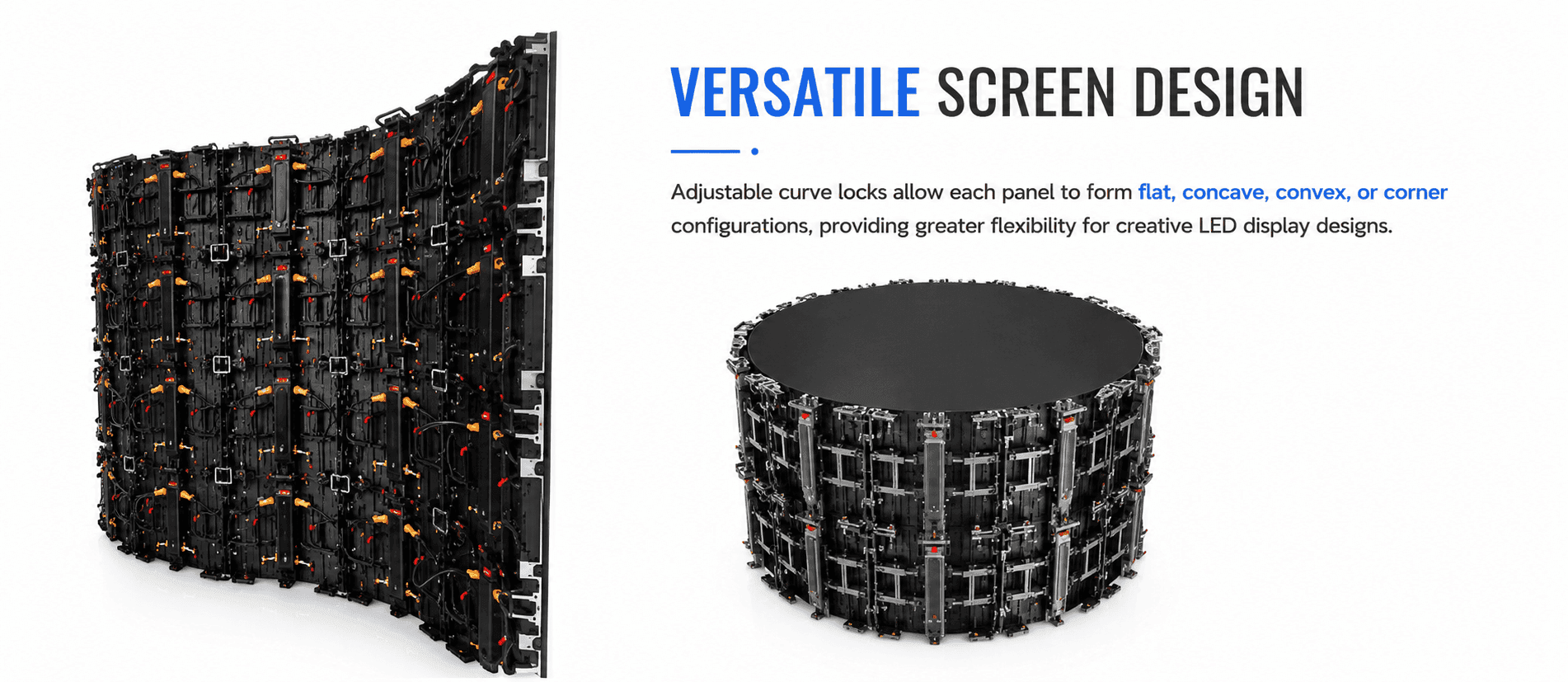

22.5° Flexible Adjustment
Adjustable up to 22.5° for curved and creative LED screen designs.

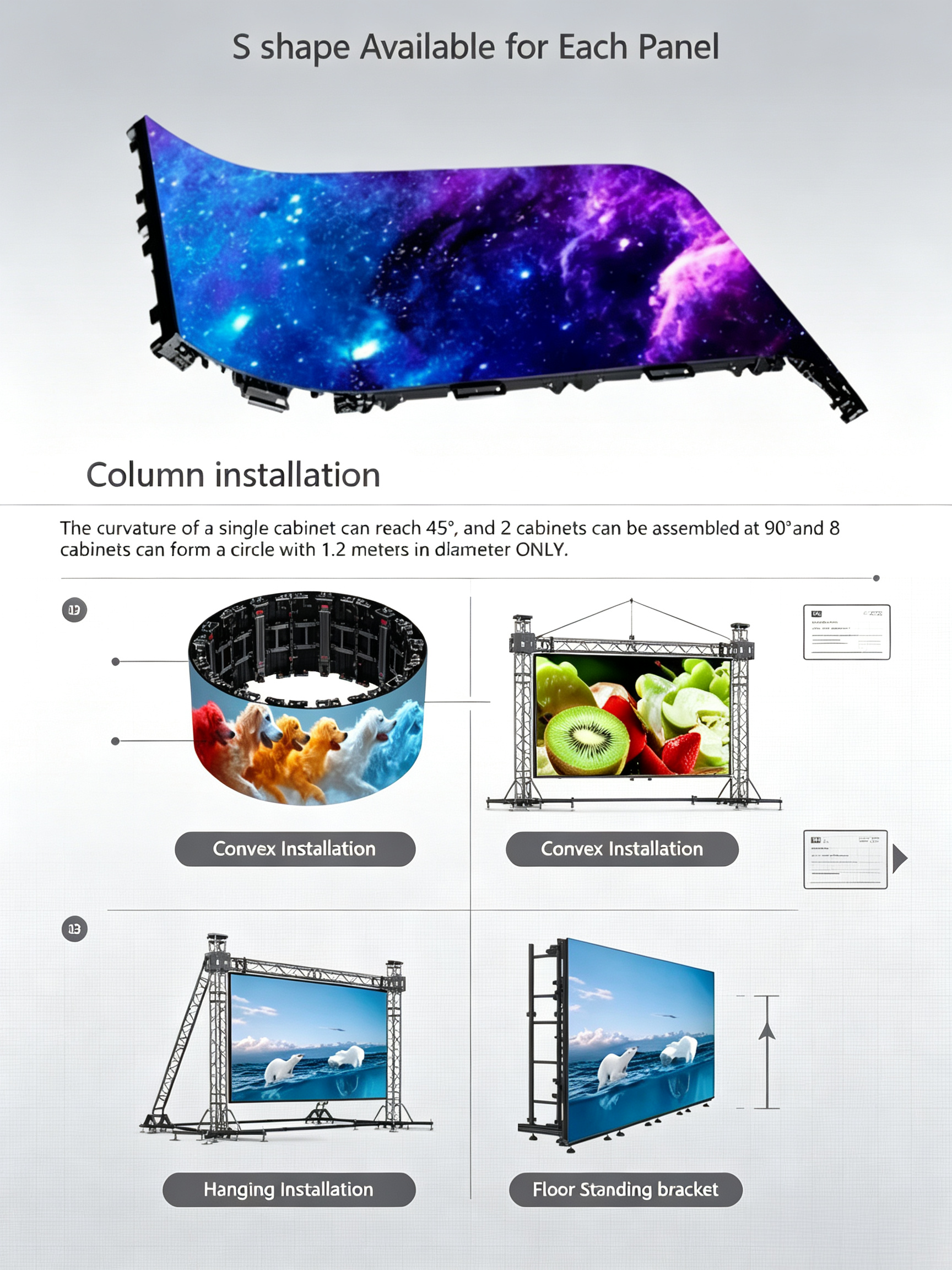

Compact Circular Design
8 cabinets can create a full circle with a diameter of approximately 1.27m.

High Brightness
5500–6500 mcd for clear and vivid visuals.

7680Hz High Refresh Rate
Smooth image performance, ideal for rental events and stage applications.



Specification
Pixel Pitch (mm)P2.604P2.976P3.91
Pixel ConfigurationSMD1415SMD1415SMD1921
Pixel Pitch (mm)2.6042.9763.91
Pixel matrix per panel192x192168x16864x64
Pixel density(pixels/sq.m.)14745611289665536

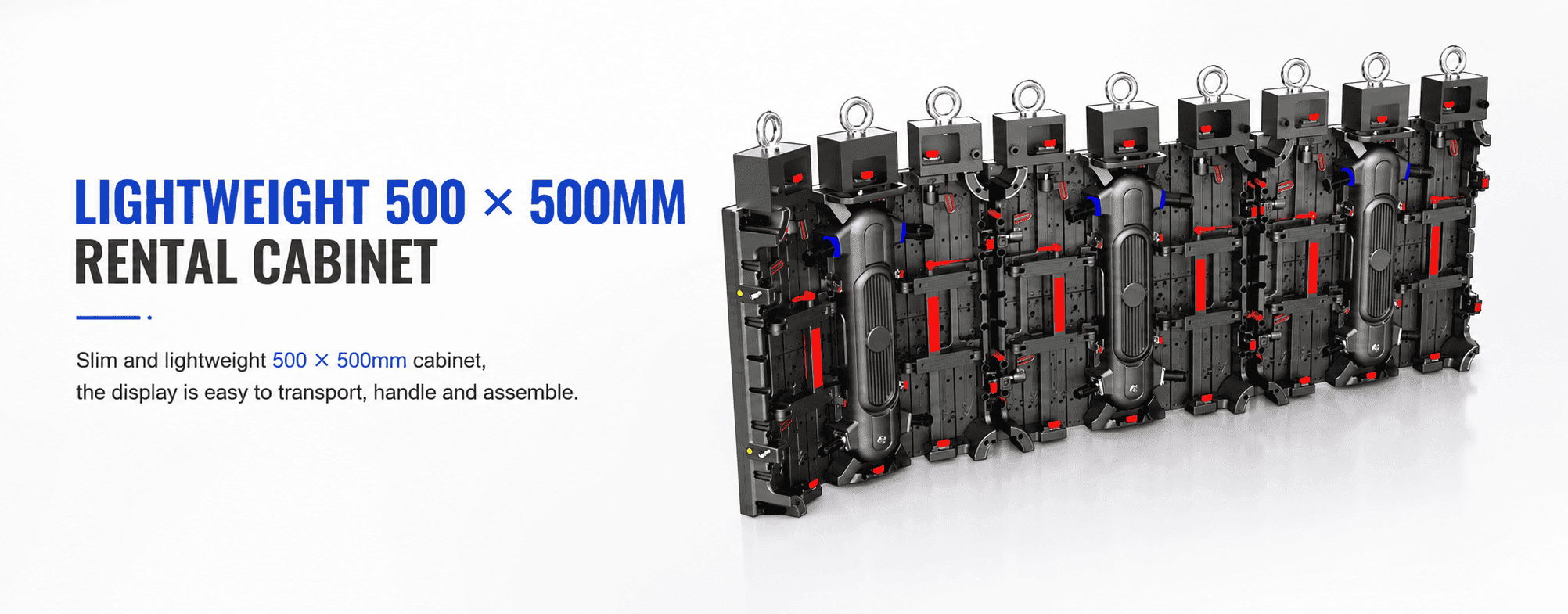

Cabinet Dimensions (LxWxH)/(mm)500X500X78500X500X78500X500X78
Module Dimensions (LxWxH)/(mm)250X250X16250X250X16250X250X16
Panel materialdie-casting aluminumdie-casting aluminumdie-casting aluminum
Cabinet weight (kg/panel)888
Module weight (kg/panel)0.60.60.6

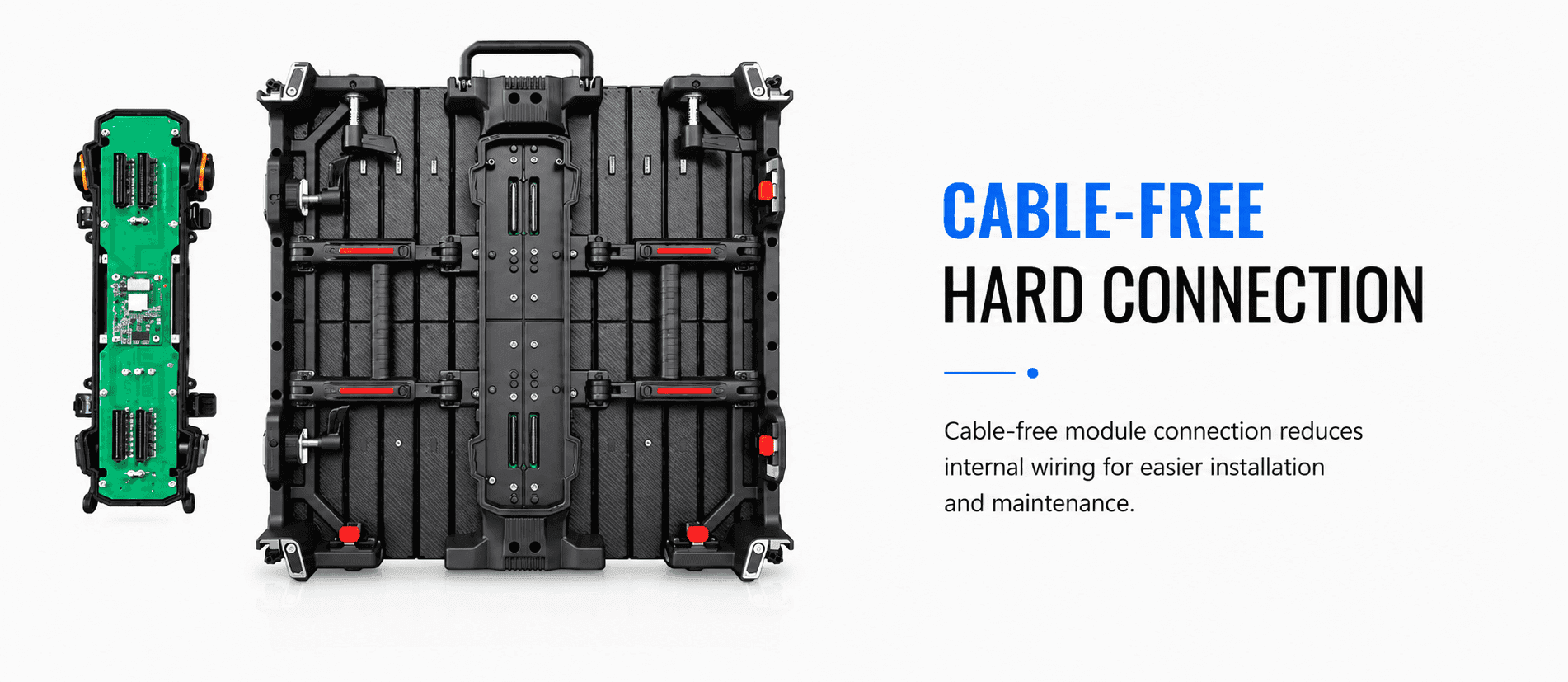

Connection methodHardwired / Soft connectionHardwired / Soft connectionHardwired / Soft connection
Color Grayscale (Bit)14-16bit14-16bit14-16bit
Gray Scale per Color (level)≥16384≥16384≥16384
Refresh Rate(Hz)38403840 / 76803840 / 7680
Driving Type1/24 s1/21 s1/16 s
Signal Transmission Distance (m)CAT5 cable:< 100 m; Single mode fiber:< 10 kmCAT5 cable:< 100 m; Single mode fiber:< 10 kmCAT5 cable:< 100 m; Single mode fiber:< 10 km
Brightness(nit)450045004500
Optimal Horizontal Viewing Angle(°)140140140
Optimal Vertical Viewing Angle(°)140140140
AC Input Voltage(V)AC: 100-240V±10%AC: 100-240V±10%AC: 100-240V±10%
AC Input Frequency(Hz)50-6050-6050-60
AC Input Power Maximum Value(W/m²)600600600
AC Input Power Typical Value(W/m²)200200200
Storage Temperature(℃)-110-110-110
Working Temperature (℃)-70-70-70
IP rating (Front/Rear)IP65/IP65IP65/IP65IP65/IP65
Storage Humidity (RH)10%~90%10%~90%10%~90%
Working Humidity (RH)10%~90%10%~90%10%~90%
Lifetime Typical Value(hrs)100000100000100000
Cabinet installation typeFix\LiftingFix\LiftingFix\Lifting
Riging Quantity (Vertical) (PCS)\\\
