Outdoor Fixed LED Display with Rear Maintenance
Outdoor Fixed LED Display with Rear Maintenance - Image 2
Outdoor Fixed LED Display with Rear Maintenance - Image 3

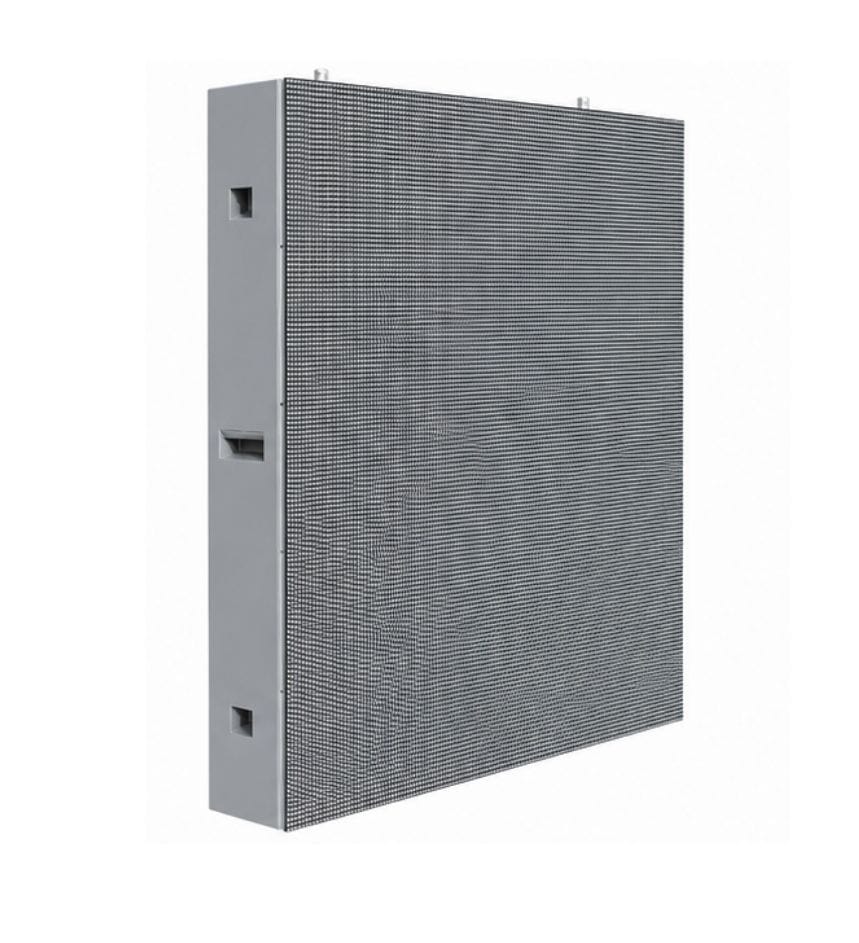

Outdoor Fixed LED Display with Rear Maintenance

The Outdoor Fixed LED Display is a cost-effective solution designed for permanent outdoor advertising installations. With high brightness, reliable waterproof protection and stable performance, it delivers clear and vivid content in various outdoor environments.

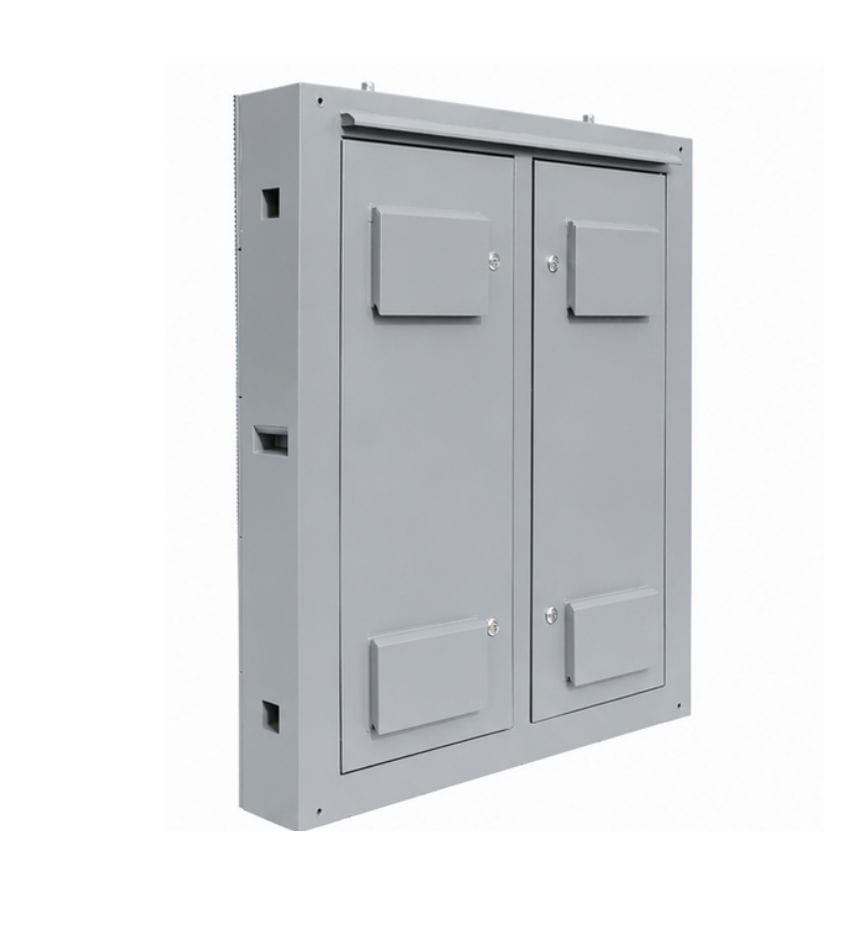

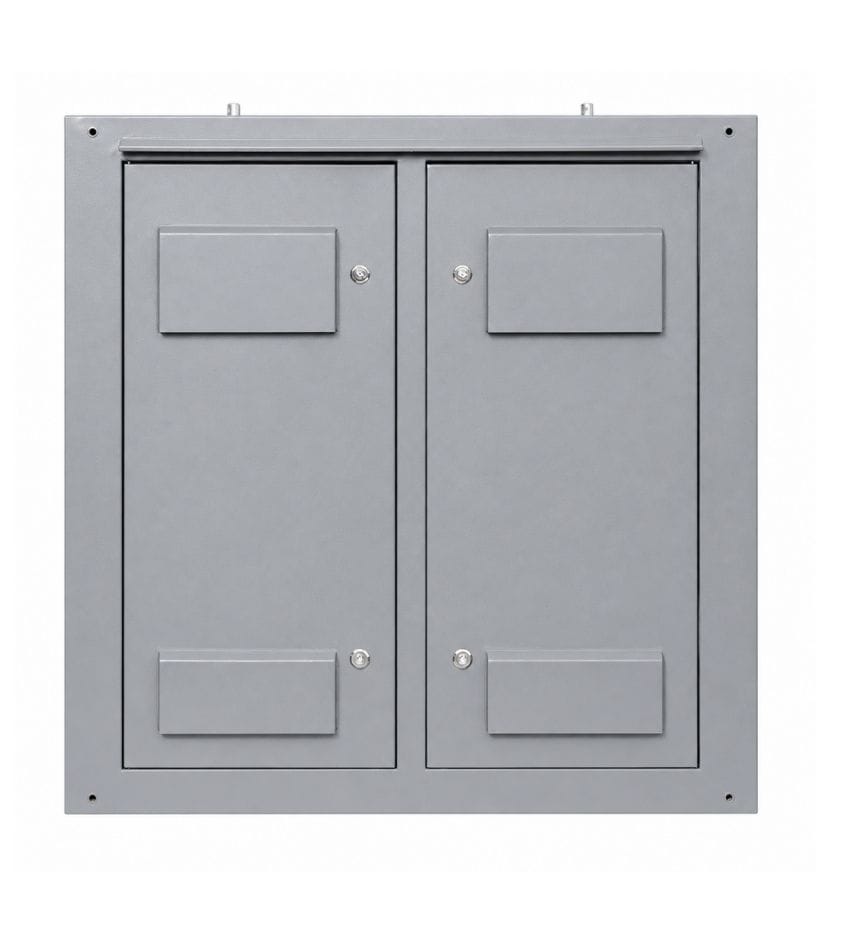

The rear maintenance design provides convenient access to LED modules, power supplies, receiving cards and other components from the back of the cabinet. It is particularly suitable for installations where sufficient maintenance space is available behind the LED screen.

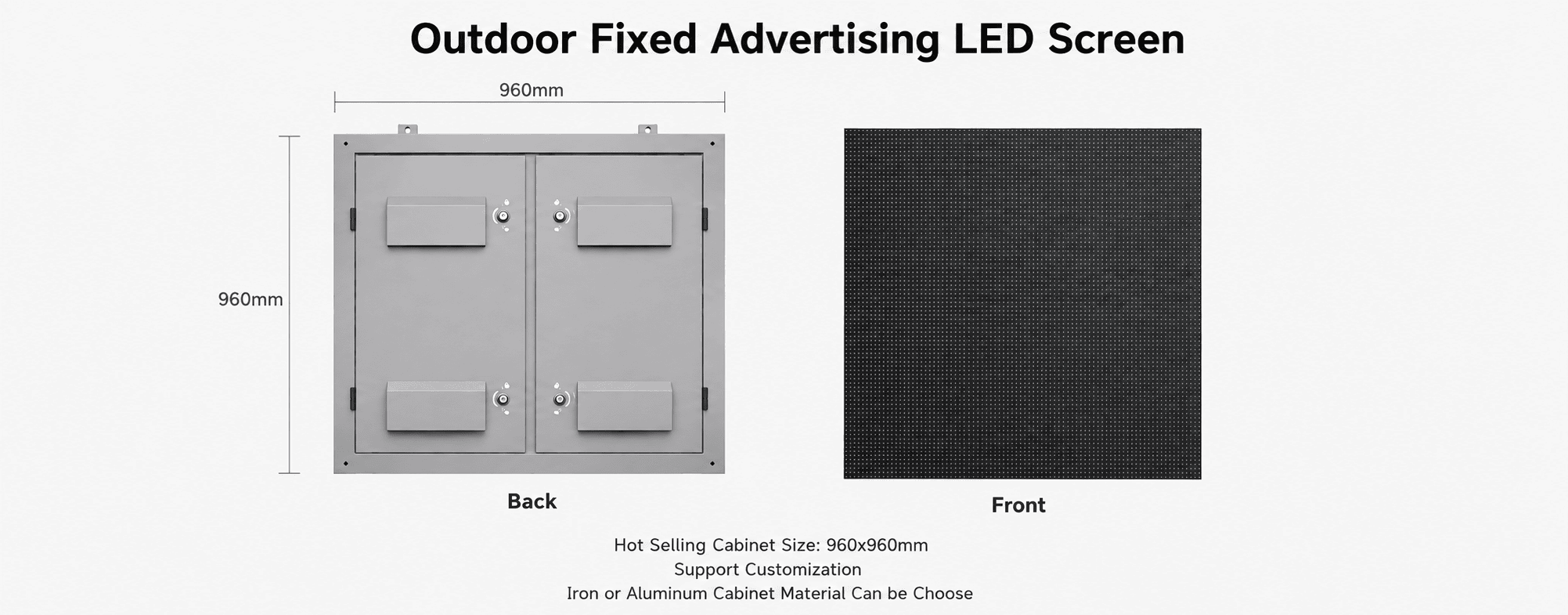

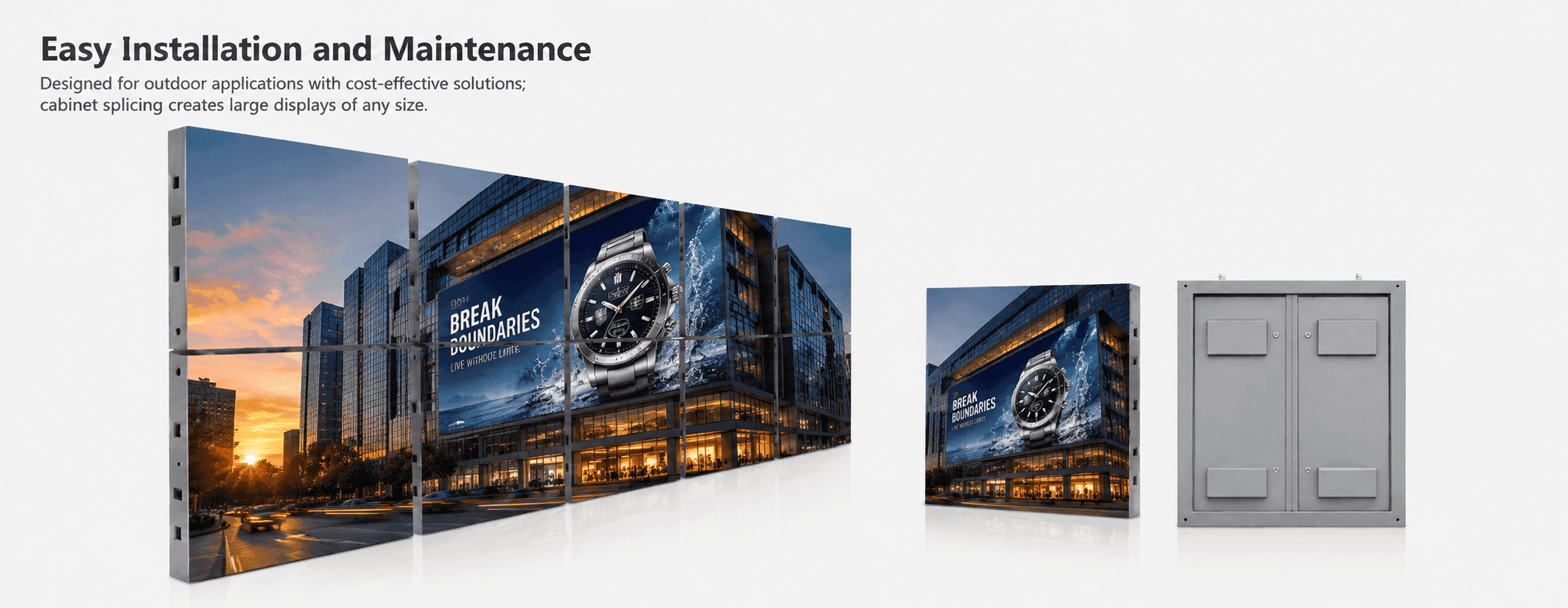

Featuring a modular cabinet structure, the display can be customized to different screen sizes and installation requirements. It is widely used for outdoor billboards, building advertising, shopping malls, commercial plazas, roadside advertising and other large-format outdoor LED display projects.

Request a Quote
Category: Product ID: 23582

Description

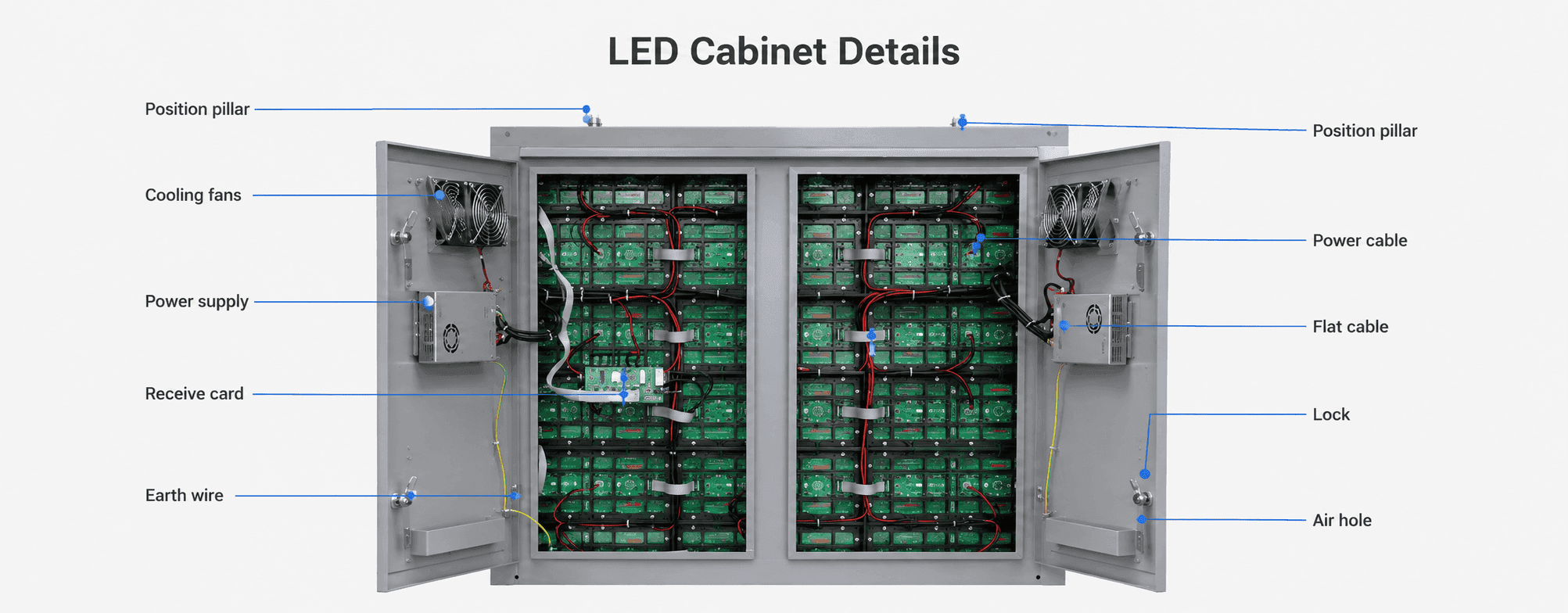

The rear service design allows technicians to access LED modules, power supplies, receiving cards and internal wiring from the back of the cabinet, making installation and routine maintenance convenient when rear service space is available.

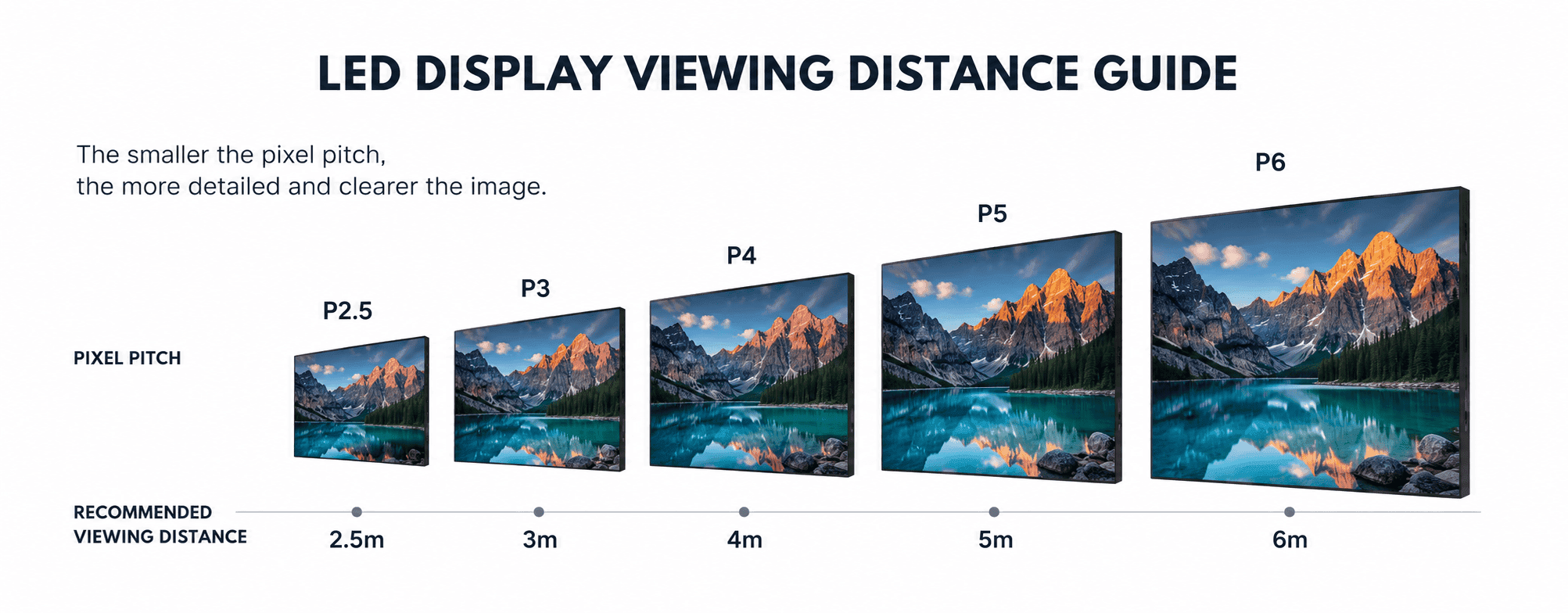

Available Pixel Pitch

P3 / P4 / P5 / P6 / P8 / P10

Outdoor Advertising Applications

Ideal for a wide range of outdoor commercial advertising applications, including:

  • Commercial Buildings
  • Outdoor Billboards
  • Shopping Mall Facades
  • Roadside Advertising
  • Public Squares
  • Shopping Centers
  • Transportation Hubs
  • Large-Format Digital Advertising

ItemP3P4P5P6P8P10
Pixel Pitch3 mm4 mm5 mm6 mm8 mm10 mm
Pixel Configuration3-in-1 (1R1G1B)

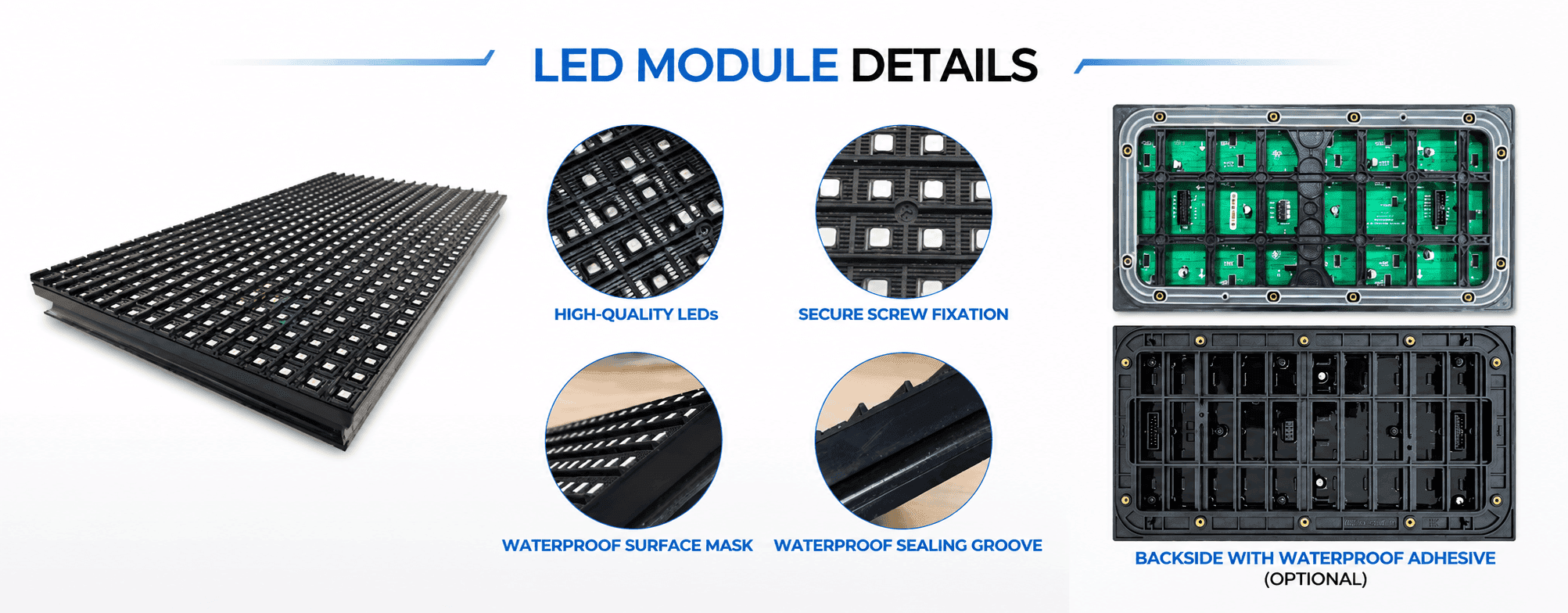

Module Size (mm)192 × 192256 × 128320 × 160192 × 192256 × 128320 × 160
Module Resolution (pixels)64 × 6464 × 3264 × 3232 × 3232 × 1632 × 16
Module Weight (kg)0.350.320.50.350.320.5
LED PackageSMD1921SMD1921SMD2727SMD3535SMD3535SMD3535
Max. Module Power (W)424038251212
Pixel Density (pixels/m²)111,111625,000*40,00027,77715,63510,000
Driving MethodConstant Current Drive
Scan Mode1/32 Scan1/8 Scan1/8 Scan1/8 Scan1/4 Scan1/2 Scan
InterfaceHUB75
Brightness (cd/m²)≥4,500≥5,000≥5,000≥5,500≥5,000≥5,500
