Understanding LED Display Power and Energy Consumption
Power consumption is an important factor when selecting an LED display, especially for large outdoor billboards that operate for many hours each day. It affects electricity costs, heat generation, power distribution and long-term system stability.
This guide explains maximum and average power consumption, how to calculate electricity use, and how an energy-efficient LED display design can reduce operating costs.
Maximum Power vs. Average Power
LED display specifications normally include two different power values.
Maximum Power Consumption
Maximum power refers to the electrical load when the screen displays a full-white image at maximum brightness. This value is mainly used to determine:
Cable size
Circuit breaker capacity
Power distribution requirements
Generator or backup power capacity
The electrical system should always be designed according to the maximum rated load, with an appropriate safety margin.
Average Power Consumption
Average power represents electricity use during normal video playback. Because typical content contains different colors, brightness levels and dark areas, the display usually does not operate continuously at maximum load.
Actual average consumption depends on the content, brightness setting, operating time and surrounding light conditions.
How to Calculate LED Display Power Consumption
The total power of an LED screen can be calculated using:
Total Power (kW) = Screen Area (m²) × Power Consumption (W/m²) ÷ 1,000
If module voltage, current and dimensions are available, power consumption per square meter can also be calculated as follows:
Module Power (W) = Voltage (V) × Current (A)
Power per Square Meter (W/m²) = Module Power (W) ÷ Module Area (m²)
ZILANG LED Real Test Example
During a white-balance test, one of our 480 × 320 mm outdoor LED modules achieved approximately 7,594 nits of white brightness.

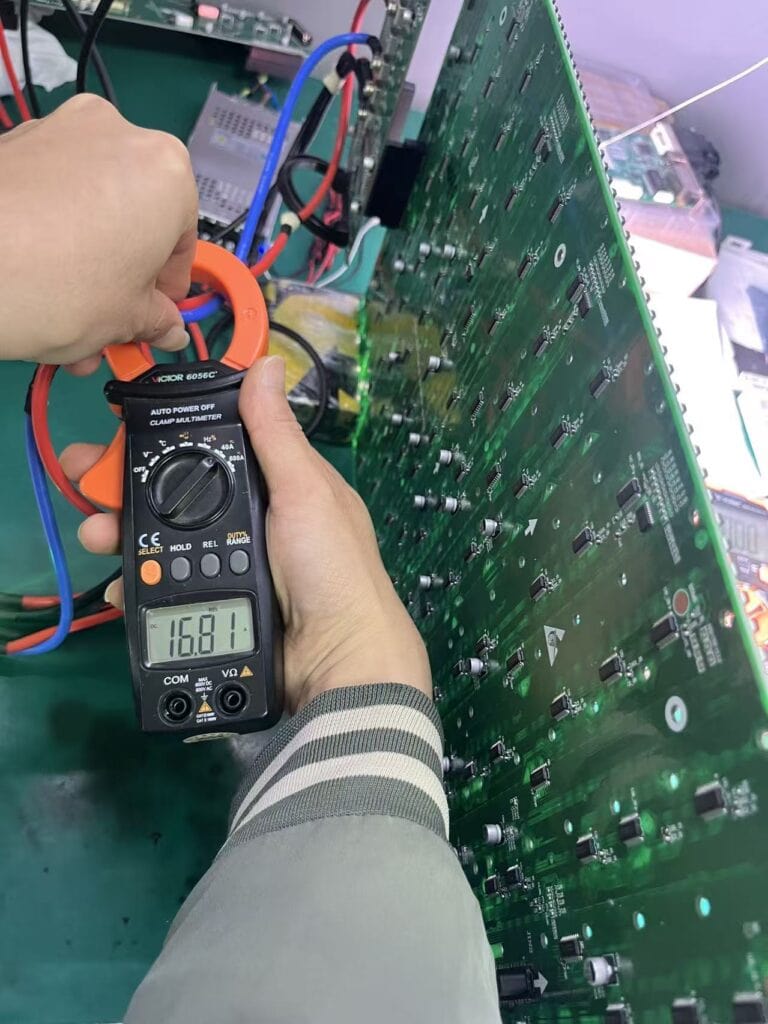

The module used a 4.2V low-voltage power supply and recorded a total current of approximately 16.1 A under full-white test conditions.
Step 1: Calculate Module Power
4.2V × 16.1A = 67.6W
The tested module consumed approximately 67.6W.
Step 2: Calculate Module Area
0.48m × 0.32m = 0.1536m²
Step 3: Calculate Power per Square Meter
67.6W ÷ 0.1536m² ≈ 440W/m²
The test result shows that the module achieved approximately 7,594 nits of brightness with a maximum power consumption of around 440W/m².
This value was measured under full-white conditions, which create a high electrical load. Actual power consumption during normal video playback is generally lower because the LEDs do not remain at full output continuously.
How to Estimate Electricity Cost
Understanding LED billboard power consumption helps project owners estimate the long-term LED billboard electricity cost before installation.
Electricity cost can be estimated using:
Electricity Cost = Average Power (kW) × Operating Hours × Electricity Rate
For example, assume a 50m² outdoor LED display has an average operating consumption of 200W/m².
Average operating power:
50m² × 200W/m² ÷ 1,000 = 10kW
If the screen operates for 12 hours per day and electricity costs USD 0.15/kWh:
Daily electricity cost:
10kW × 12 hours × USD 0.15 = USD 18
Estimated monthly cost:
USD 18 × 30 days = USD 540
The 200W/m² figure is used only as a calculation example. Actual average power should be confirmed according to the selected LED display configuration and operating conditions.
What Affects LED Display Power Consumption?
1. Brightness
Higher brightness normally requires more electrical power. Outdoor LED displays exposed to direct sunlight need significantly higher brightness than indoor screens.
Automatic brightness sensors can reduce unnecessary power consumption by lowering brightness during cloudy weather, evening operation or nighttime use.
2. Display Content
A full-white image consumes more power than darker or mixed-color content. Videos with dark backgrounds and limited white areas generally require less electricity.
This means two screens with identical specifications can have different electricity consumption depending on the content they display.
3. Pixel Pitch
A smaller pixel pitch has more pixels and LED lamps per square meter. This can increase power demand, although actual consumption also depends on the LED type, driver IC, scan mode, brightness and circuit design.
4. Indoor or Outdoor Installation
Outdoor displays usually operate at higher brightness to remain visible in daylight. Indoor screens require less brightness and therefore generally consume less power per square meter.
5. Low-Voltage Power Supply Design
The operating voltage affects both power consumption and heat generation. A 4.2V power supply can reduce unnecessary voltage loss compared with a conventional higher-voltage system.
However, the power supply, LED lamps, driver ICs and circuit design must be properly matched. A lower voltage alone does not guarantee better performance.
When the complete system is optimized, a 4.2V design can maintain high outdoor brightness while reducing energy loss and internal heat.
6. Common-Cathode Technology
In a conventional common-anode system, red, green and blue LEDs may receive the same supply voltage even though their voltage requirements are different.
Common-cathode technology can supply more suitable voltage levels to the individual LED colors. This helps reduce excess energy conversion and heat generation, making it particularly suitable for large outdoor displays with long operating hours.
Conclusion
LED display power consumption is influenced by screen size, brightness, displayed content, pixel pitch, operating voltage and component efficiency.
In ZILANG LED’s module test, a 480 × 320 mm outdoor LED module achieved approximately 7,594 nits with a maximum full-white power consumption of around 440W/m². The combination of a 4.2V power supply and optimized electrical design helps balance outdoor visibility, power efficiency and thermal performance.
Contact ZILANG LED with your required screen size, pixel pitch, brightness and daily operating hours. Our team can help estimate the power capacity and expected electricity consumption for your project.
