Solar-Powered Outdoor LED Advertising Display

Solar powered advertising displays are ideal for locations where traditional electrical infrastructure is difficult or costly to install.

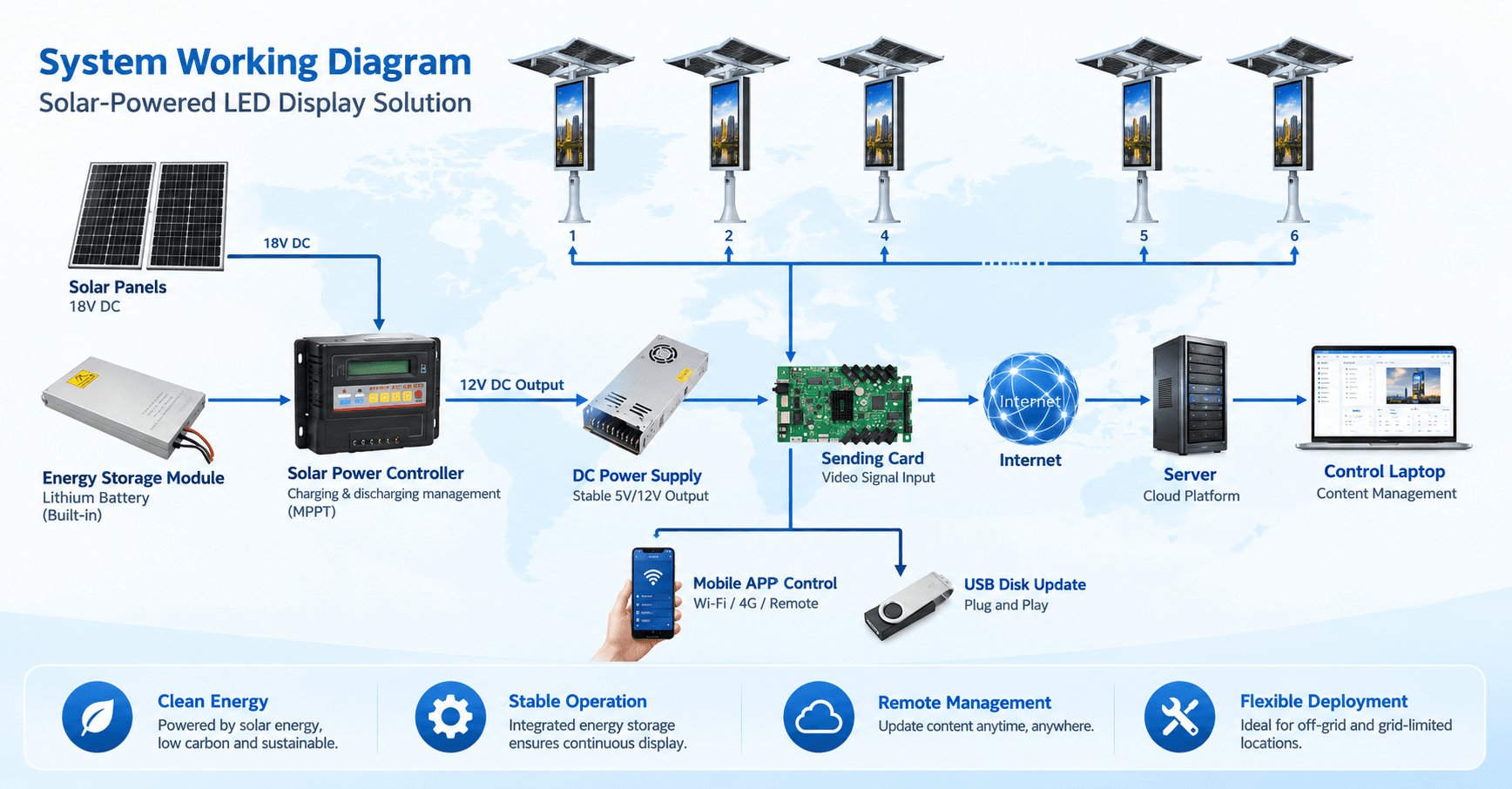

Suitable for off-grid or limited-grid-power applications.During daylight hours, the solar panels generate electricity to power the LED display and charge the battery system. Stored energy can then support display operation when solar energy is insufficient.

Request a Quote
Category: Product ID: 24010

Description

Smart Outdoor Advertising Powered by Solar Energy

Our solar powered LED display combines outdoor digital advertising with an integrated solar power and energy storage system. It provides a flexible display solution for streets, parks, commercial areas and locations where grid power is limited or unavailable.

Solar Power Generation

Solar panels convert sunlight into electricity for daily operation.

Energy Storage System
Integrated battery storage supports continuous operation when sunlight is insufficient.

Low Infrastructure Requirements
Reduces dependence on conventional grid power and complex cabling.

Energy-Efficient Operation
Designed for sustainable outdoor digital advertising applications.

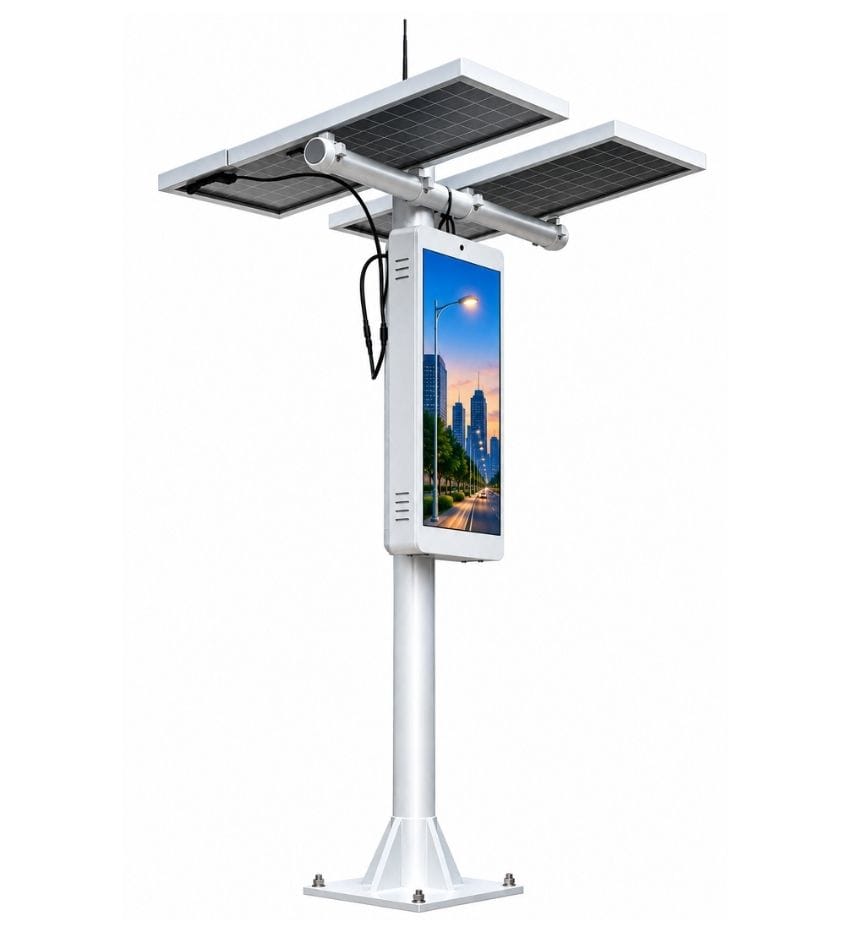

Solar powered LED advertising display for outdoor commercial signage

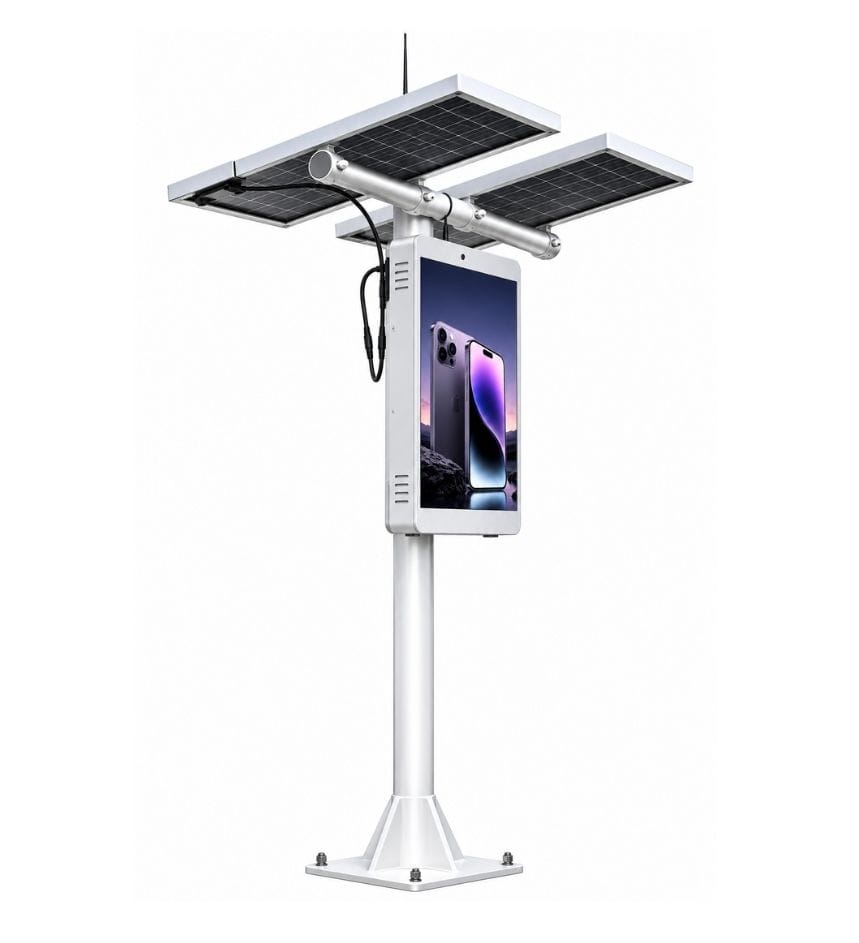

Solar powered LED billboard for outdoor digital advertising

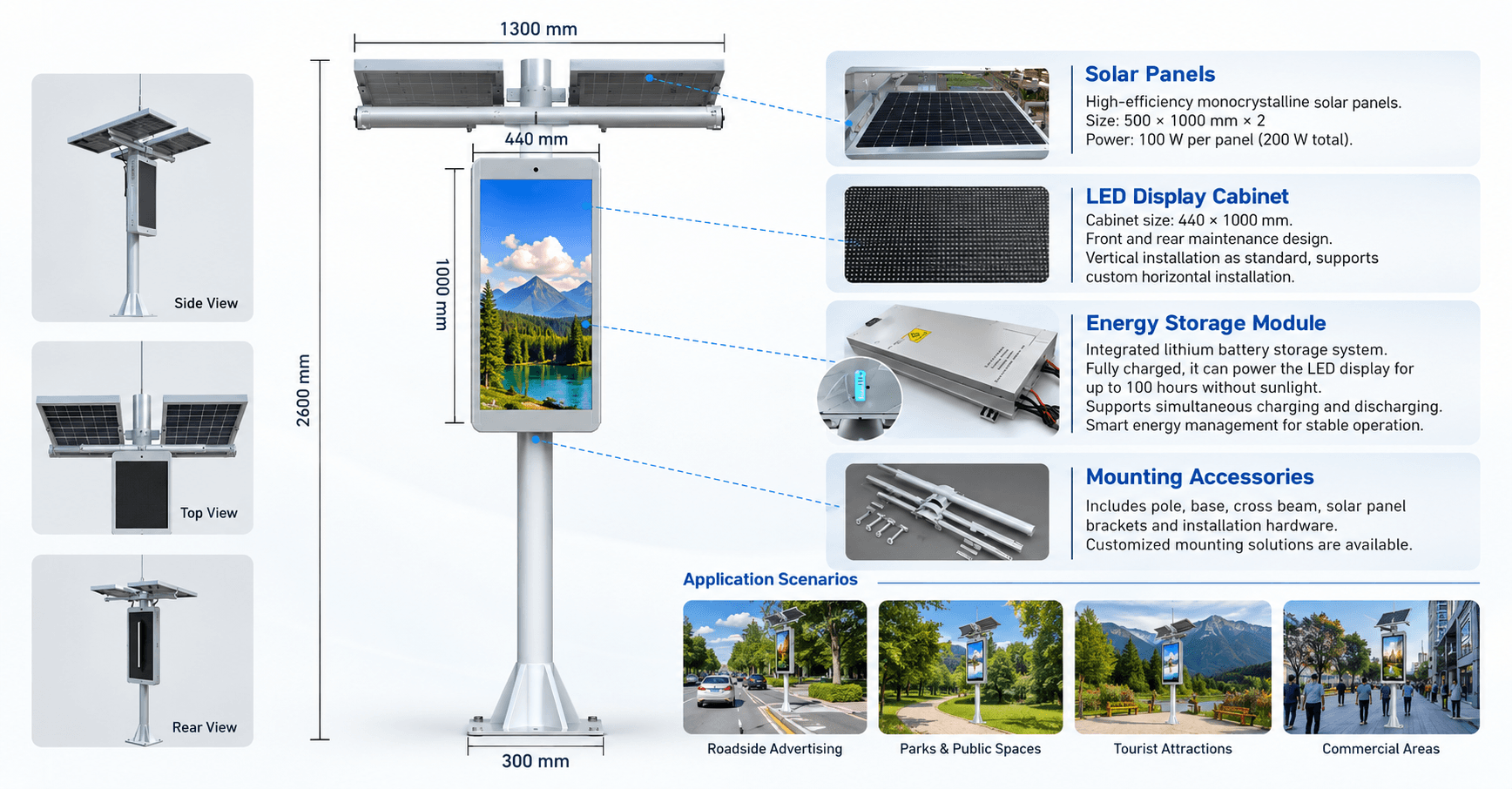

Solar powered digital advertising display with integrated energy storage

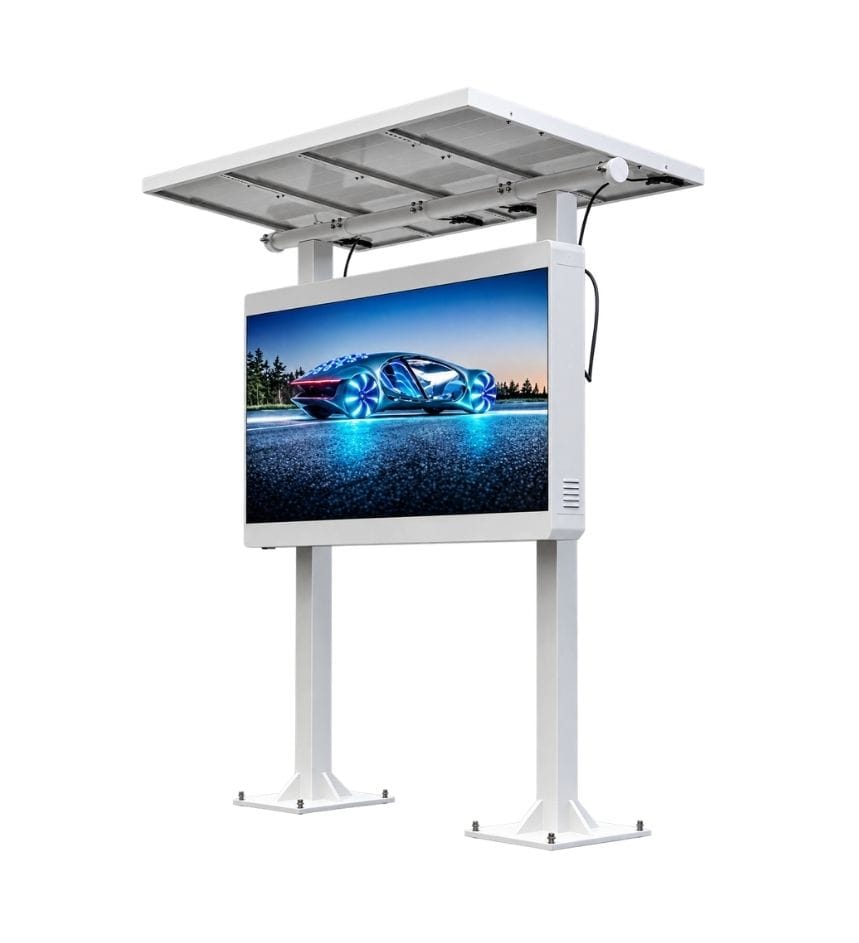

Outdoor solar LED display for locations with limited grid power

Frequently Asked Questions

Q1: Can a solar-powered LED display work without grid electricity?

Yes. A solar-powered LED display uses solar panels and battery storage to support outdoor advertising in locations with limited or no grid access. Actual off-grid operation depends on solar panel capacity, battery size, local sunlight conditions and daily operating hours.

Q2: Can the solar LED advertising screen operate at night?

Yes. The battery system stores solar energy during the day to support operation at night or when sunlight is insufficient. The available operating time depends on battery capacity, display brightness and power consumption.

Q3: Is the solar-powered outdoor LED display waterproof?

The LED screen features IP65 protection, while the cabinet is rated IP54. With brightness of 6,000–6,500 nits, it is designed for outdoor advertising in streets, parks and commercial areas.

Q4: What sizes are available for the solar-powered LED display?

ZILANG LED offers three configurations: P3 Standard, P3 Pro and P3 Max. Their screen sizes are 400 × 800 mm, 600 × 800 mm and 1800 × 800 mm, respectively, with a 3.84 mm pixel pitch.

Q5: Can I update advertising content remotely?

Yes. The solar-powered LED display supports 4G, Wi-Fi, USB and cloud-based control. Users can update advertising content remotely and schedule automatic power on/off according to their operating requirements.

Q6: Where can solar-powered LED advertising displays be installed?

These displays are suitable for streets, parks, commercial areas and locations where electrical cabling is difficult or expensive. Pole-mounted, hanging and embedded installation options are available, depending on the project requirements.

Q7: How Can I Get a Quote for a Solar-Powered LED Display?

Simply fill out the inquiry form below with your required screen size, pixel pitch, quantity and project details. Our sales team will recommend a suitable solution and provide a customized factory-direct quotation.

    Solar Powered LED Display Specification

    ParameterP3 StandardP3 ProP3 Max
    Pixel Pitch3.84 mm3.84 mm3.84 mm
    Pixel Density67,816 dots/m²67,816 dots/m²67,816 dots/m²
    LED TypeSMD1921 high-brightness common-cathode LEDs
    Module Size200 × 200 mm
    Module Resolution52 × 52 pixels
    Overall Display Size440 × 120 × 1000 mm640 × 120 × 1000 mm1840 × 120 × 1000 mm
    Screen Size400 × 120 × 800 mm600 × 120 × 800 mm1800 × 120 × 800 mm
    Service MethodFront service, modular installation
    Scan Mode1/13 scan
    Refresh Rate≥ 3840 Hz
    Max. Brightness6000–6500 cd/m²
    Synchronization Function4G remote synchronization; live video & voice call system optional
    Average Power Consumption40–60 W/set50–80 W/set100–150 W/set
    Grayscale65,536 levels (15-bit)
    Power SupplyInput DC 12 V, 150 W; output DC 3.8 V + 2.8 V
    PCB4-layer custom PCB, 1.6 mm
    ConnectorGold-plated copper
    IP RatingScreen IP65 / Cabinet IP54
    Mounting Space (W × H × Overall H)1300 × 1000 × 2600 mm1300 × 1000 × 2600 mm2000 × 1000 × 2600 mm
    Recommended Viewing Distance3–100 m
    Net Weight>45 kg>50 kg>100 kg
    Installation MethodPole / hanging / embedded installation
    Storage Environment−25°C to +70°C; 15%–90% RH
    Control Method4G / Wi-Fi / USB / cloud cluster control; scheduled power on/off
    Optional External SensorsWeather, wind speed, temperature & humidity, light, PM2.5, soil composition, etc.
    LoudspeakerBuilt-in speaker; supports common audio formats
    Cooling SystemThermostatic fan: 1–25°C 1500 RPM; 25–35°C 3000 RPM; 35–45°C 4000 RPM; >45°C 5500 RPM
