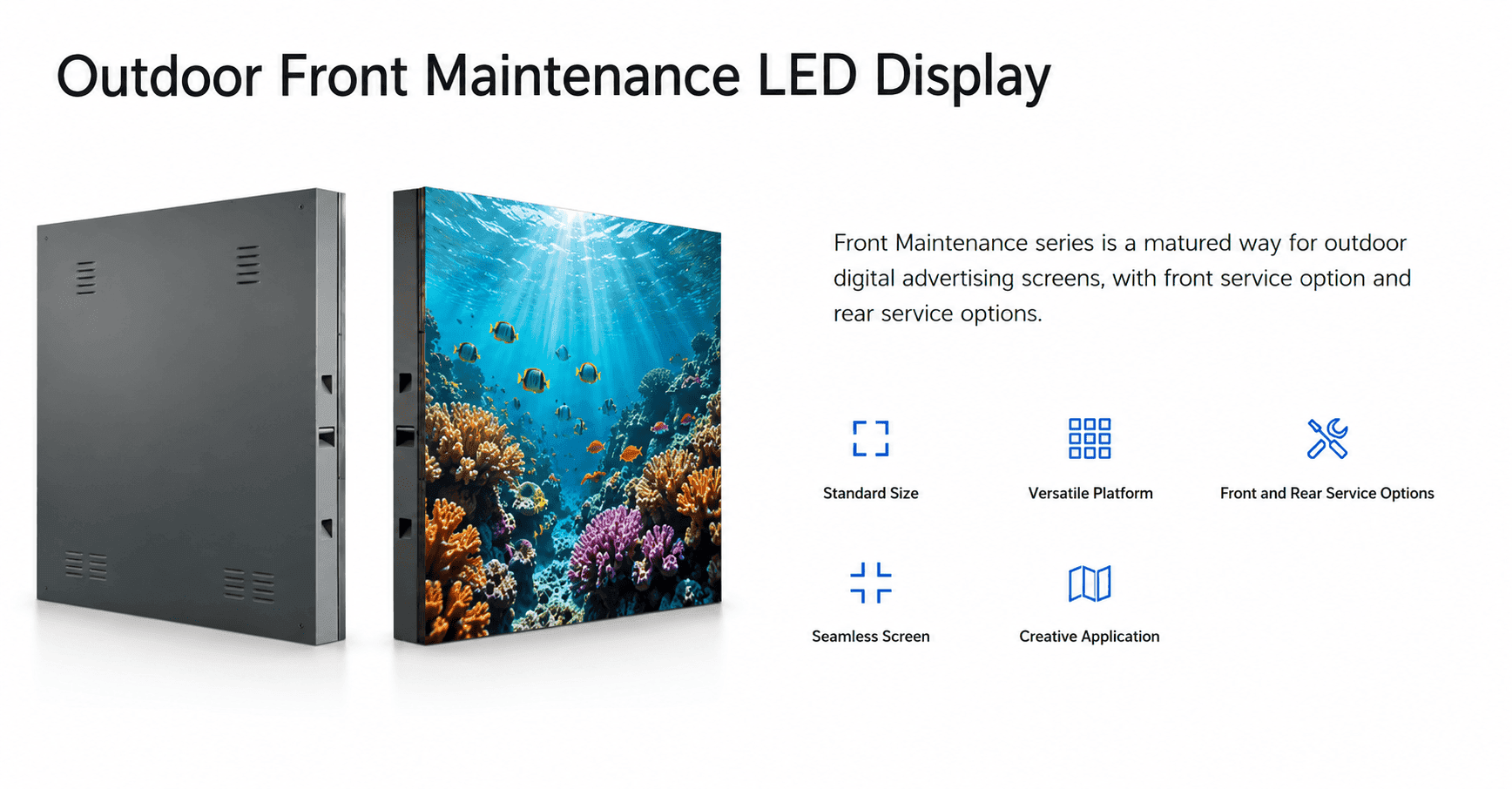

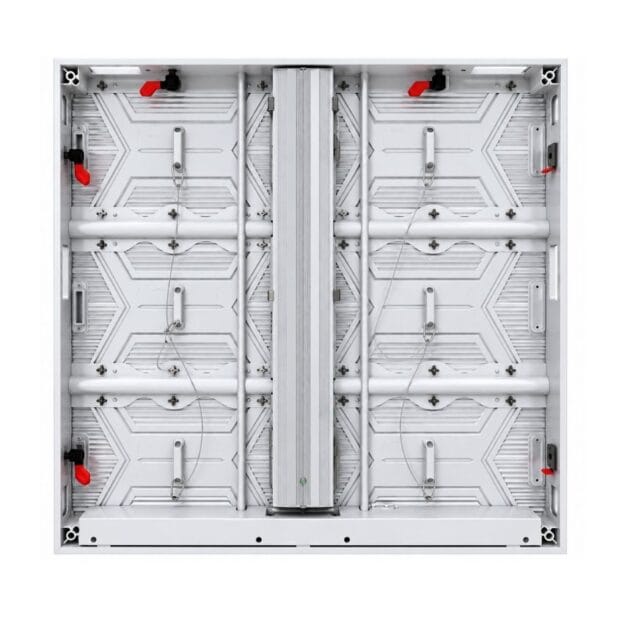

Outdoor Front Service LED Display

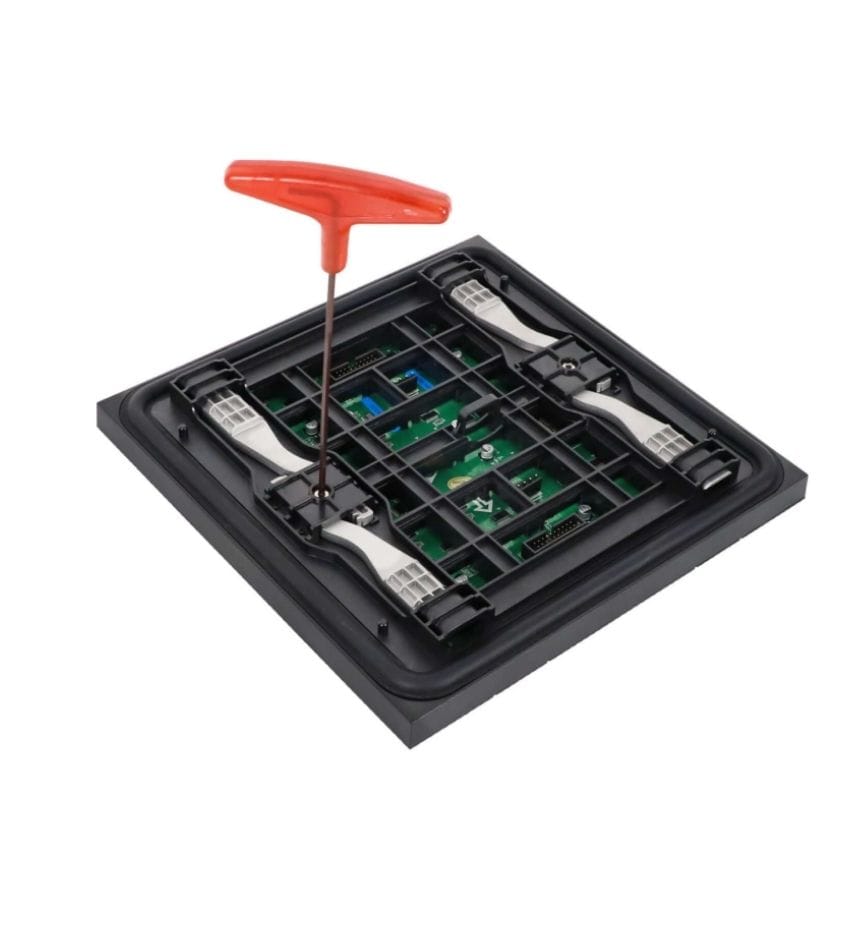

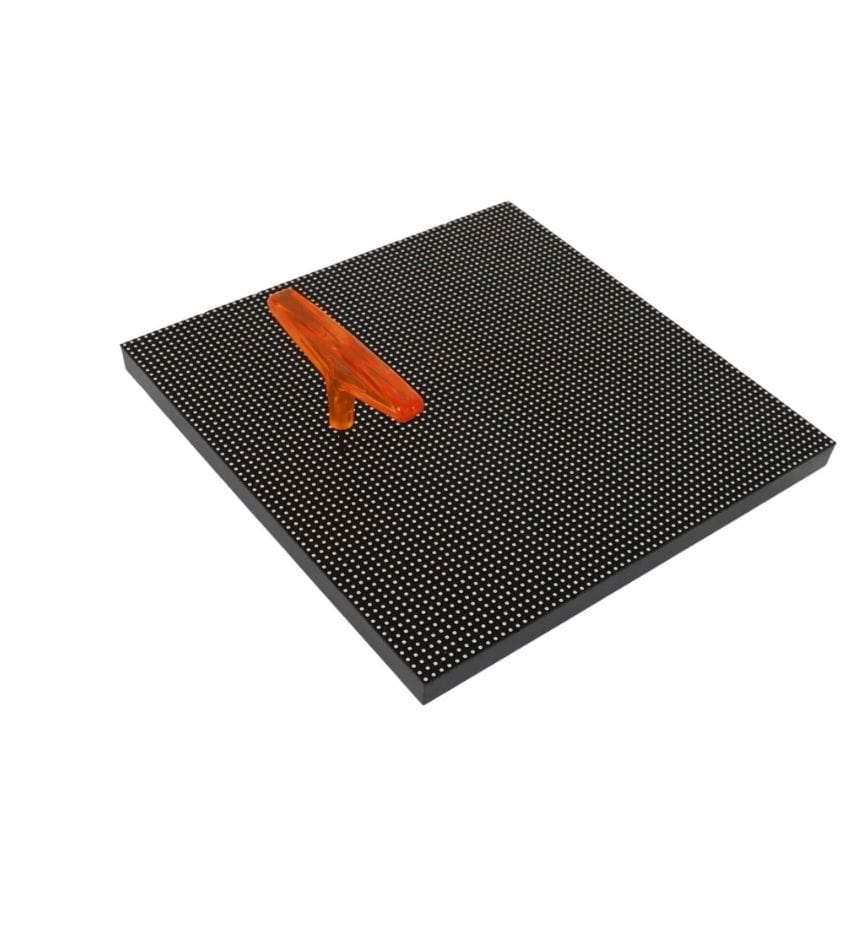

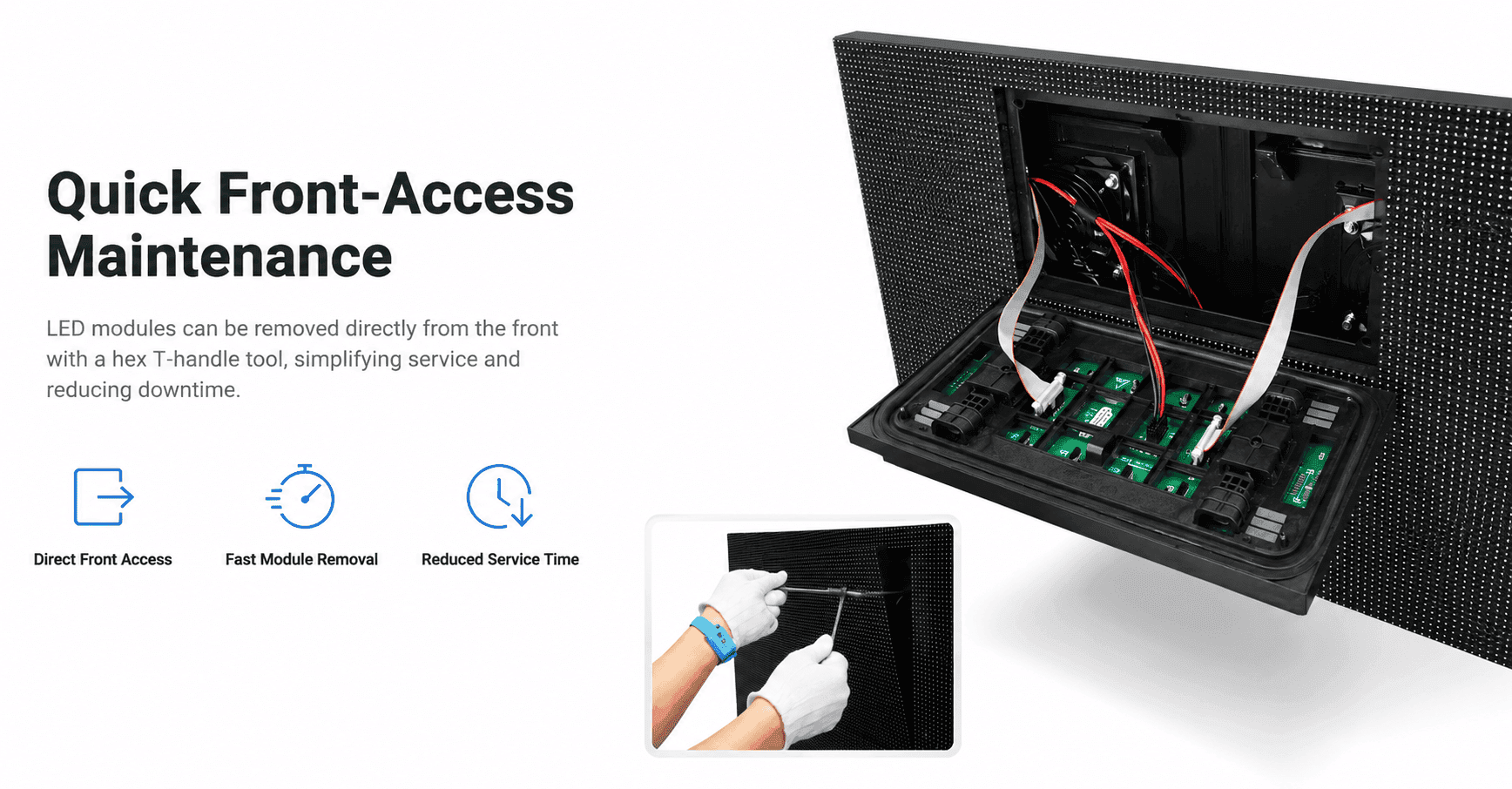

Outdoor front service LED display is a digital signage solution designed for installations where rear access is impossible or impractical. Unlike traditional screens that require a service corridor behind the wall, a front maintenance LED display allows technicians to remove modules, replace power supplies, and perform repairs entirely from the front using screw-fixing mechanisms.
This makes it the ideal choice for building facades, street-side billboards, and other wall-mounted outdoor LED displays where space is limited.
| Product Parameter | ||||||
| P2.5 | P3 | P4 -1 | P4-2 | Front6B | Front10B | |
| Pixel Pitch | 2.5mm | 3.076mm | 4mm | 4mm | 6.67mm | 10mm |
| Pixel Density/㎡ | 160,000 | 105,625 | 62,500 | 62,500 | 22,500 | 10,000 |
| LED Configuration | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | |
| Brightness | 5,500nits | 6,500nits | 6,500nits | |||
| Power Consumption/㎡ | Max/Avg 650w/220w | Max/Avg 650w/220w | Max/Avg 650w/220w | Max/Avg 650w/220w | Max/Avg 650w/220w | Max/Avg 650w/220w |

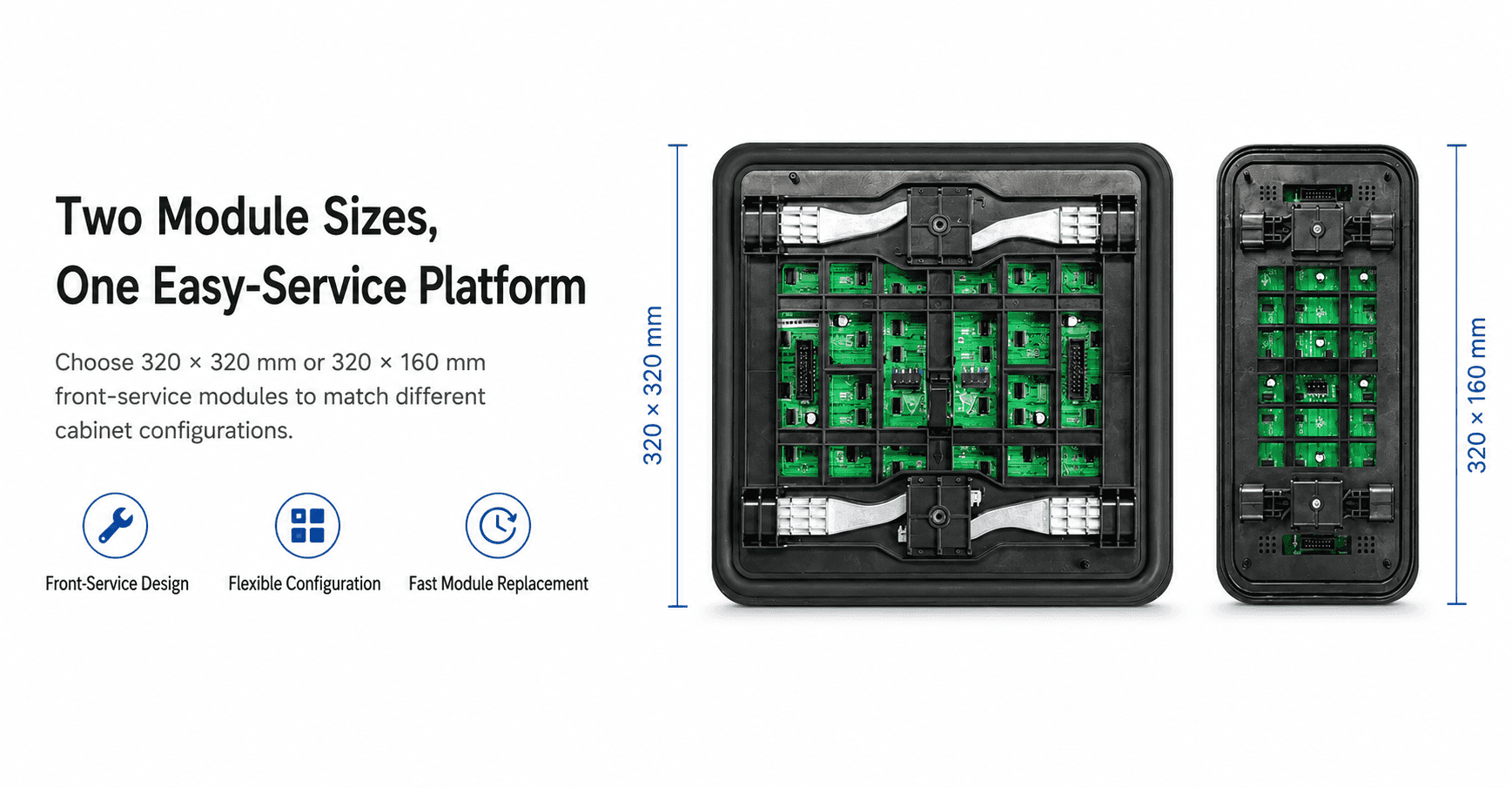

| Module Dimension | 320mm x 160mm | 320mm x 320mm | ||||
| Module Resolution | 128 x 64 | 104 x 52 | 80 x 40 | 80 x 80 | 48 x 48 | 32 x 32 |
| Panel Dimension | 960 x 960mm | 960 x 960mm | 960 x 960mm | 960 x 960mm | 960 x 960mm | 960 x 960mm |
| Panel Resolution | 384 x 384 | 312 x 312 | 240 x 240 | 240 x 240 | 144 x 144 | 96 x 96 |
| Panel Weight | 39kg | |||||
| Refresh Rate | 3,840Hz / 7,680Hz | |||||
| IP Rate | IP65/IP54 | |||||
| Input Voltage(AC) | 110V / 240V, 50/60 HZ | |||||
| Operating Temperature | -30° ~ 60 ° | |||||
| Grayscale(bit) | 16 | |||||
| Lifespan(hrs) | >100,000(hrs) | |||||
| Service Access | Front | |||||
