Description
960×960mm Outdoor LED Display P2.5–P10
Outdoor energy-saving LED displays deliver bright, high-contrast imagery for advertising and signage. Advanced power-saving tech cuts energy use and costs, while rugged weatherproofing ensures durability.

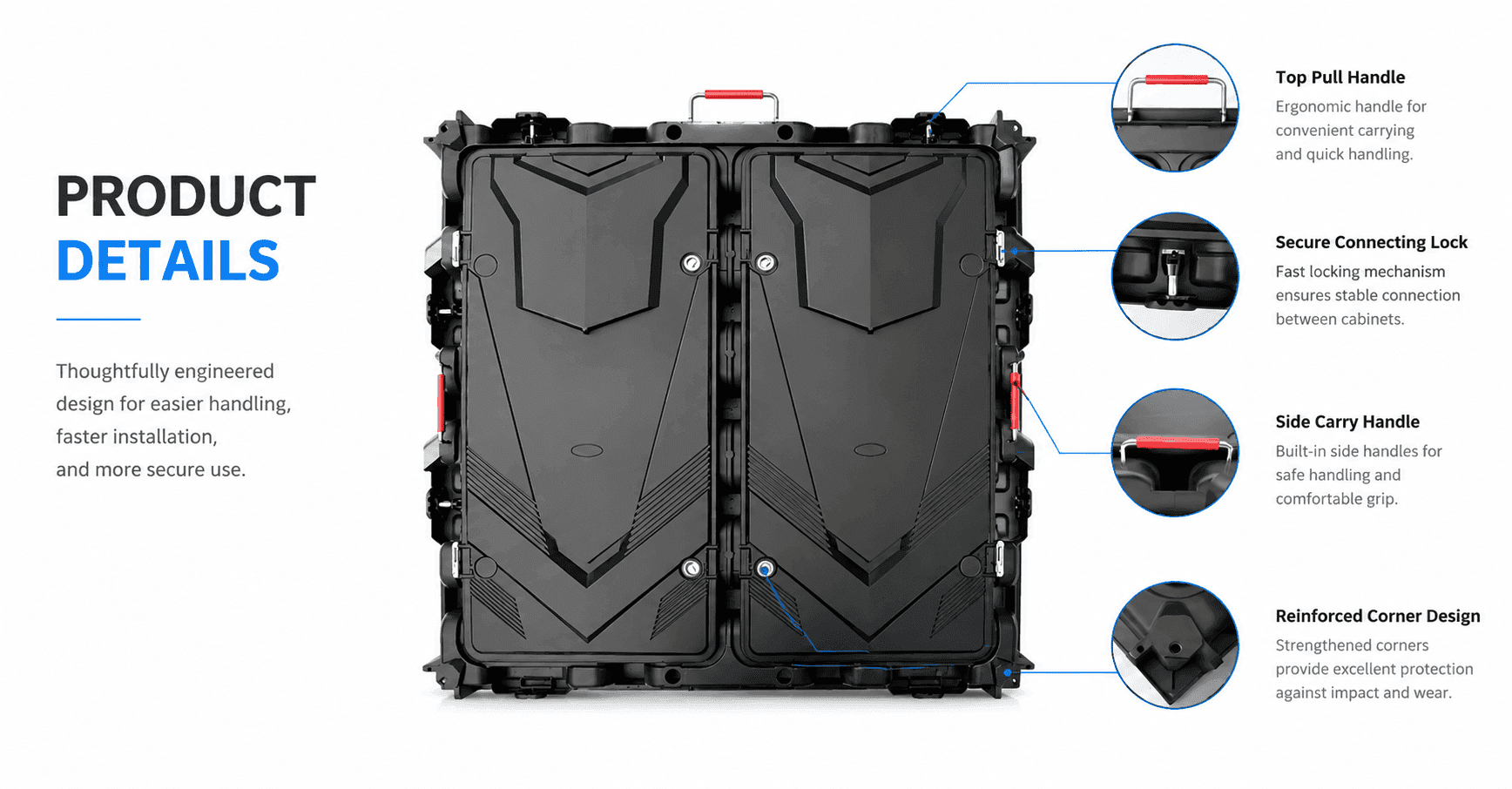

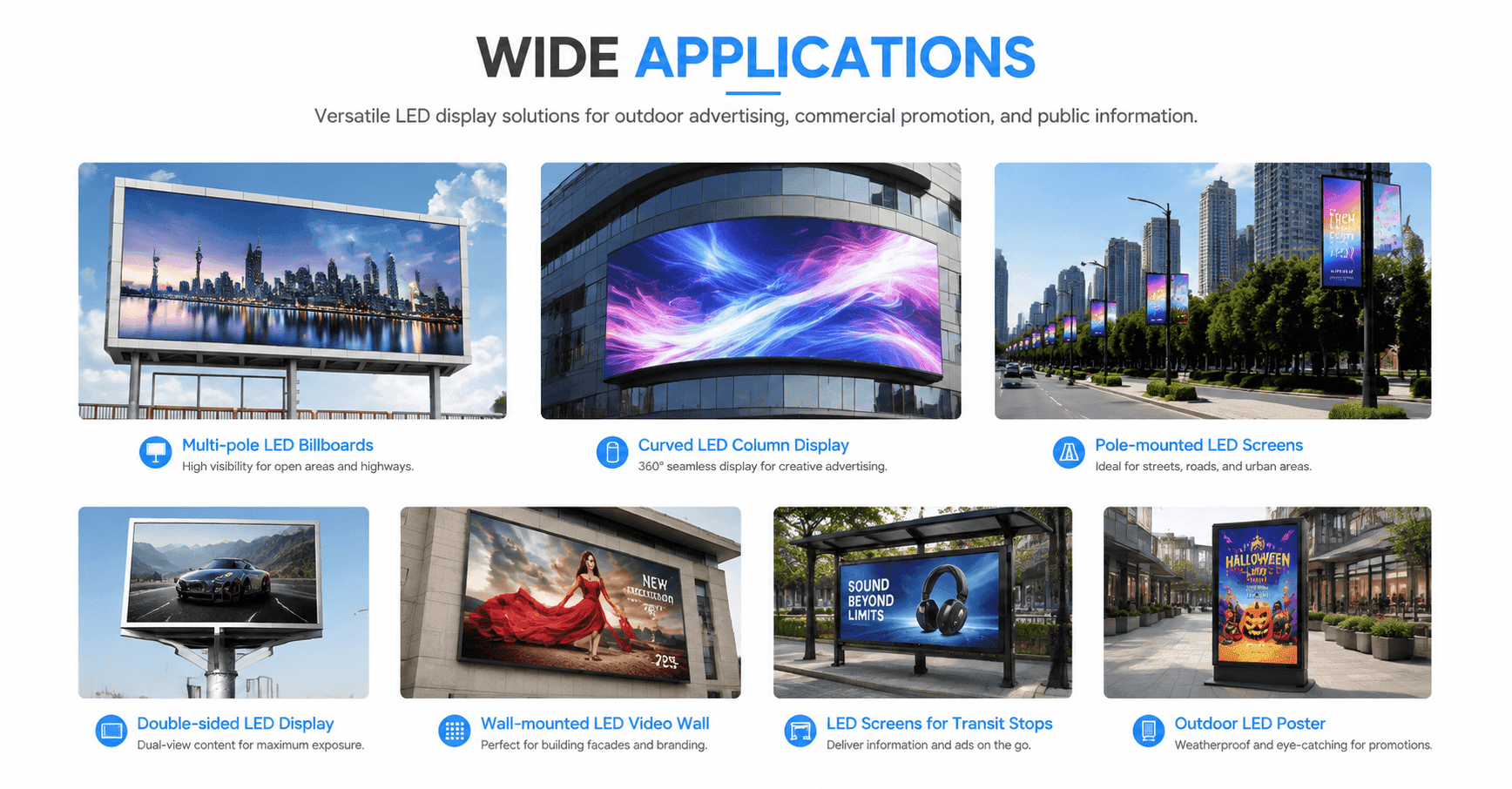

Front/rear maintenance eases installation and servicing. Ideal for billboards, malls, transit hubs, stadiums, and building exteriors that demand 24/7 reliability.
| Model | P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10 |
| Pixel Pitch (mm) | 2.5 | 3.076 | 4 | 5 | 6.67 | 8 | 10 |
| Pixel Density (dot/m²) | 160,000 | 105,690 | 62,500 | 40,000 | 22,478 | 15,625 | 10,000 |
| Cabinet Size (mm) | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×100 | 320×160 | 320×160 | 320×160 |
| Vertical Viewing Angle (Deg) | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 |
| Brightness (cd/m²) | 5000–5500 | 5000–5500 | 5000–5500 | 5500–5500 | 5000–5500 | 5000–5500 | 5000–5500 |
| Refresh Rate (Hz) | 3840 | 3840 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Max Power Consumption (W/m²) | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| Average Power Consumption (W/m²) | 245 | 245 | 245 | 245 | 245 | 245 | 245 |
| Ingress Protection | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Working Environment | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
