Common Cathode LED Display Power Consumption Guide
Introduction
Power consumption affects cable sizing, power distribution, cooling and the long-term operating cost of an LED display. Common-cathode technology is designed to improve power efficiency by supplying red, green and blue LEDs with voltages better matched to their electrical requirements.
Energy savings should not be judged from a percentage claim alone. Buyers should compare measured average power under the same brightness, content and test conditions.

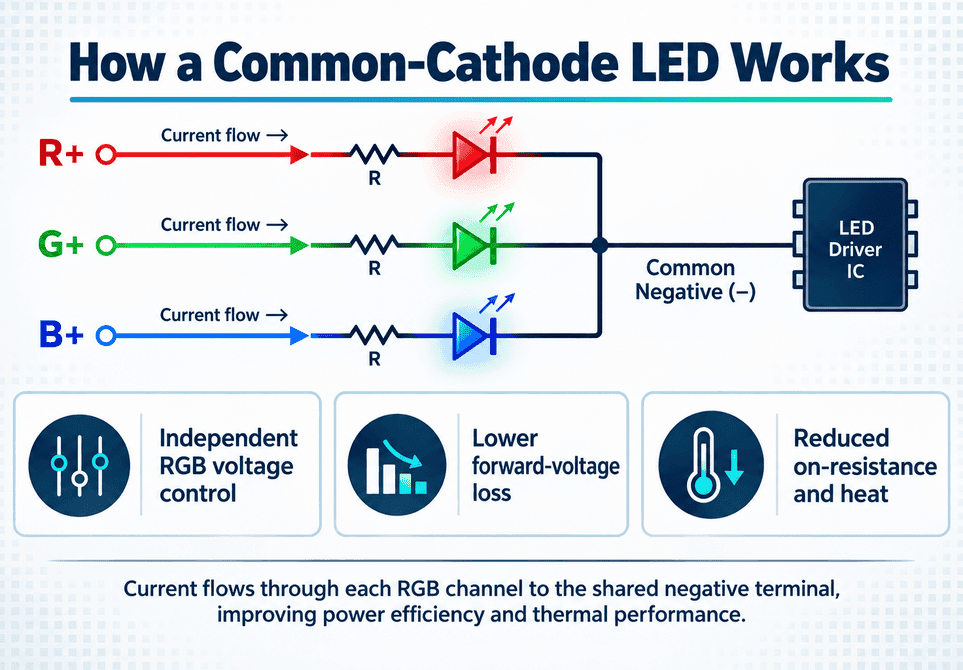

How Common Cathode Technology Works

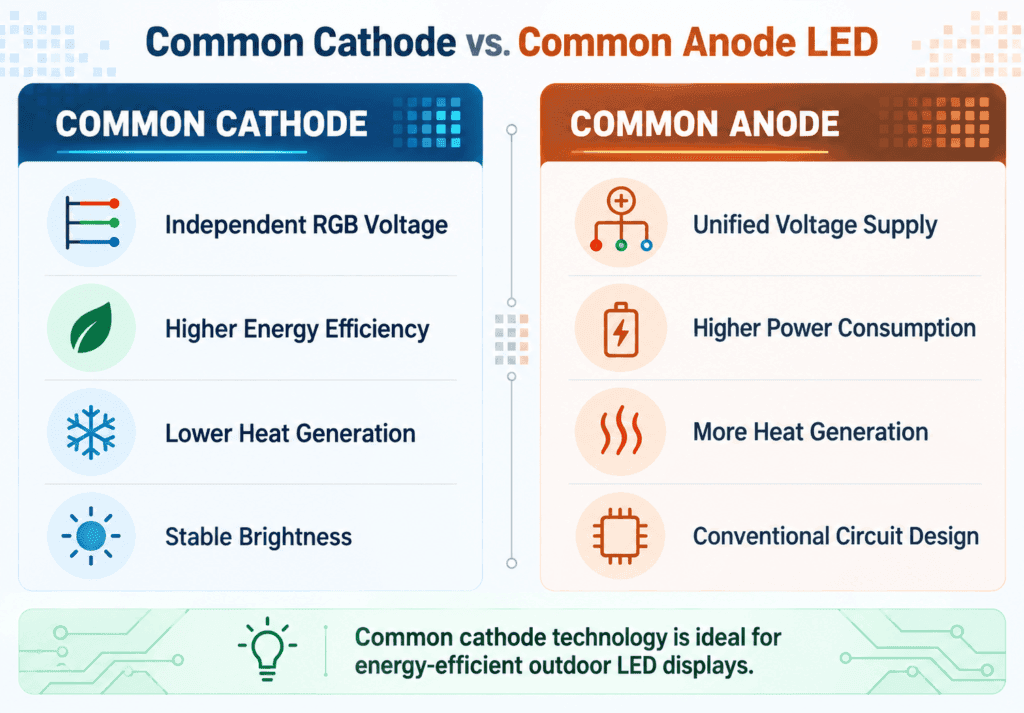

In a conventional common-anode design, the LED channels may share a common positive supply. A common-cathode architecture uses a common negative connection and can apply more appropriate supply voltages to different LED colors. Red LEDs generally require a lower forward voltage than green and blue LEDs. Reducing unnecessary voltage loss can lower heat generation and power consumption.
The actual benefit depends on the module circuit, power supply, driver IC, brightness setting and displayed content. Common-cathode is therefore a system-level design rather than a guarantee based only on the name.
Power Consumption Formula
Maximum screen power equals screen area multiplied by maximum power per square meter. Average screen power equals screen area multiplied by average power per square meter.
Daily energy use in kilowatt-hours equals average power in kilowatts multiplied by operating hours. Daily electricity cost equals daily energy use multiplied by the local electricity tariff.
Calculation Example for a 100 m2 Screen
Assume a 100 m2 common-cathode outdoor LED screen has a maximum power rating of 480 W per m2 and an estimated average power of 160 W per m2 under the planned operating conditions.
Maximum power is 100 x 480 W, or 48 kW. Average operating power is 100 x 160 W, or 16 kW. If the screen operates eight hours per day, daily energy use is 16 kW x 8 hours, or 128 kWh. At an electricity price of USD 0.15 per kWh, the estimated daily electricity cost is USD 19.20 and the annual cost for 365 days is USD 7,008.
Calculation Table
Calculation item | Formula | Example |
Maximum power | Area x maximum W/m2 | 100 x 480 W = 48 kW |
Average power | Area x average W/m2 | 100 x 160 W = 16 kW |
Daily energy | Average kW x hours | 16 x 8 = 128 kWh |
Daily cost | kWh x tariff | 128 x USD 0.15 = USD 19.20 |
Annual cost | Daily cost x 365 | USD 7,008 |
Maximum Power vs Average Power
Maximum power is used for electrical safety planning, including cables, breakers and distribution boxes. Average power is used to estimate normal energy consumption. Average power varies with brightness and content; a full-white image normally uses more power than darker video content.
What Affects Real Power Consumption
Brightness setting, ambient light, displayed content, pixel pitch, LED efficiency, driver ICs, power-supply efficiency and temperature all affect actual consumption. Automatic brightness control can reduce power at night while maintaining visibility.
For a meaningful supplier comparison, request both maximum and average power values and ask how the average figure was tested. If possible, test a sample module or cabinet using the intended brightness and content profile.
Potential Project Benefits
Lower power consumption can reduce electricity cost, heat inside the cabinet and cooling demand. Lower operating temperature may also support stable performance, although service life still depends on component quality, ventilation, maintenance and environmental conditions.
Conclusion

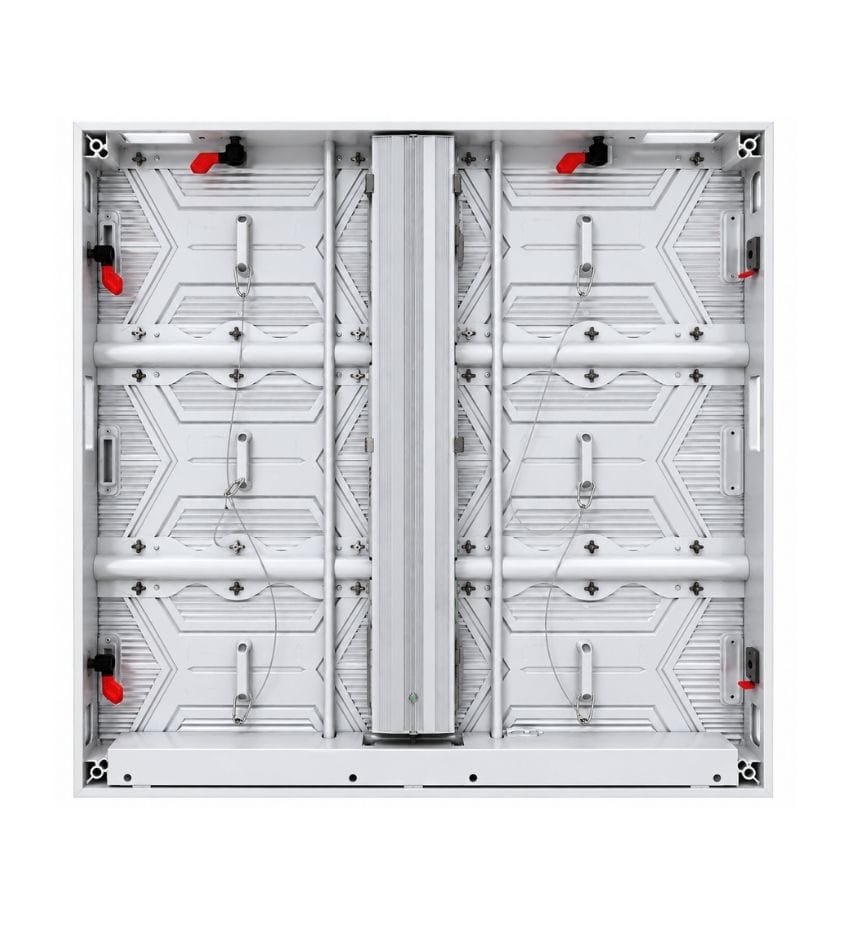

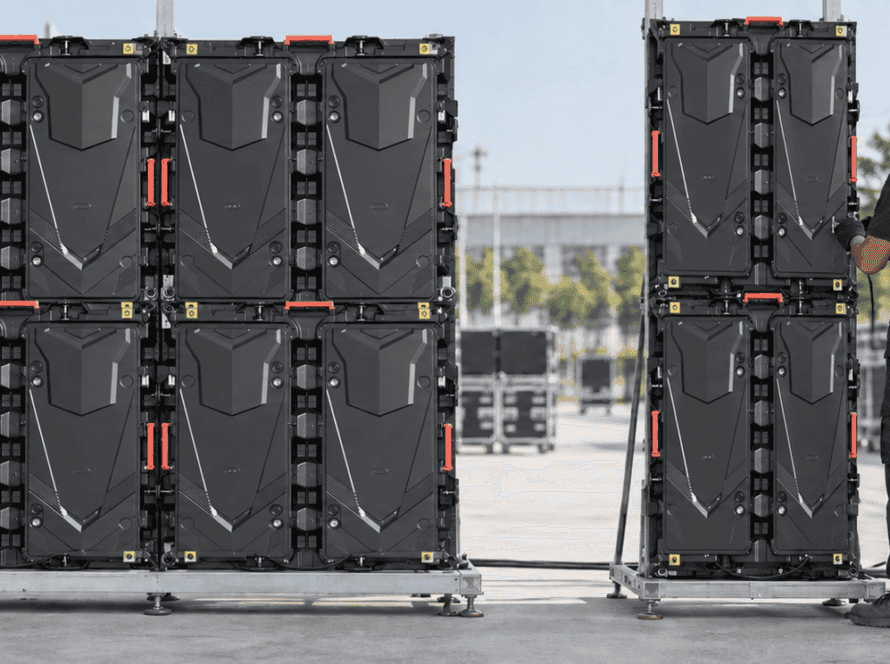

Calculate the electrical system using maximum power and estimate operating cost using realistic average power. ZILANG LED offers energy-saving outdoor LED display options, including 960 x 960 mm cabinet solutions with a maximum power specification of up to 480 W per m2 depending on configuration.
