Our Ultra-Thin Indoor Double-Sided LED Display features a precision one-piece die-cast aluminum cabinet, providing a slim, lightweight and durable structure for commercial indoor applications.

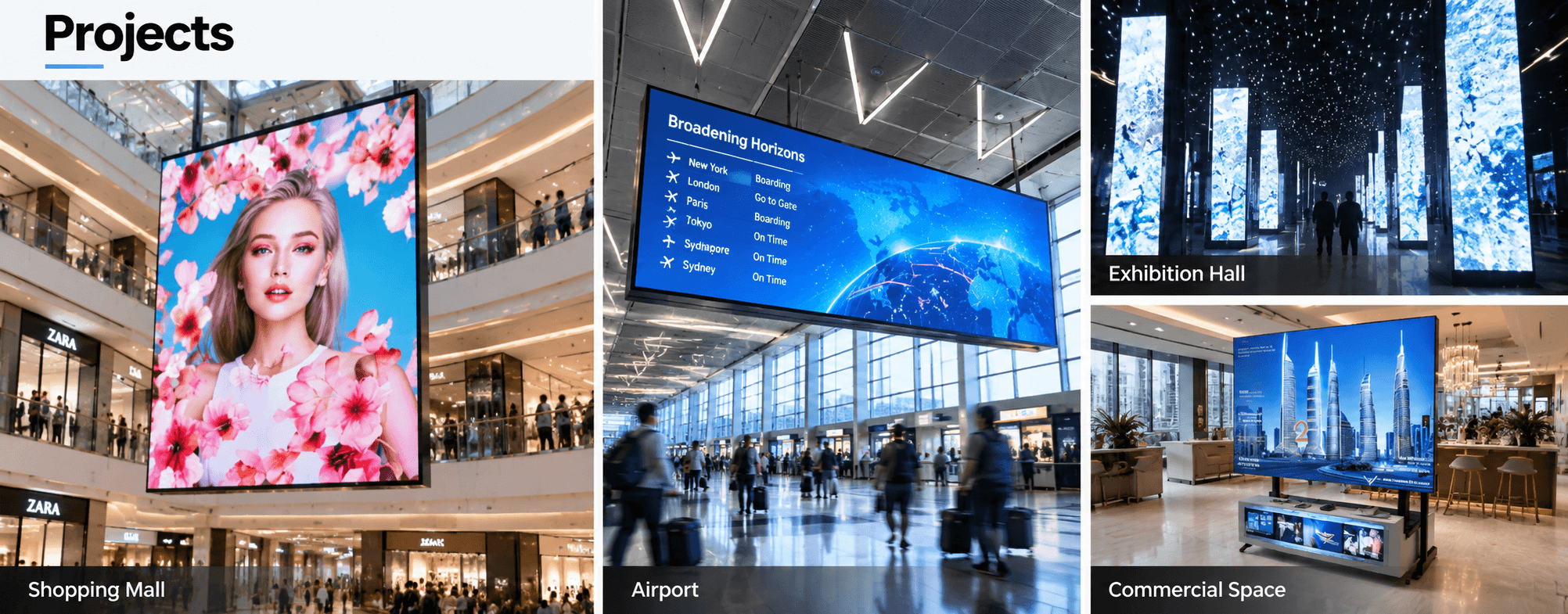

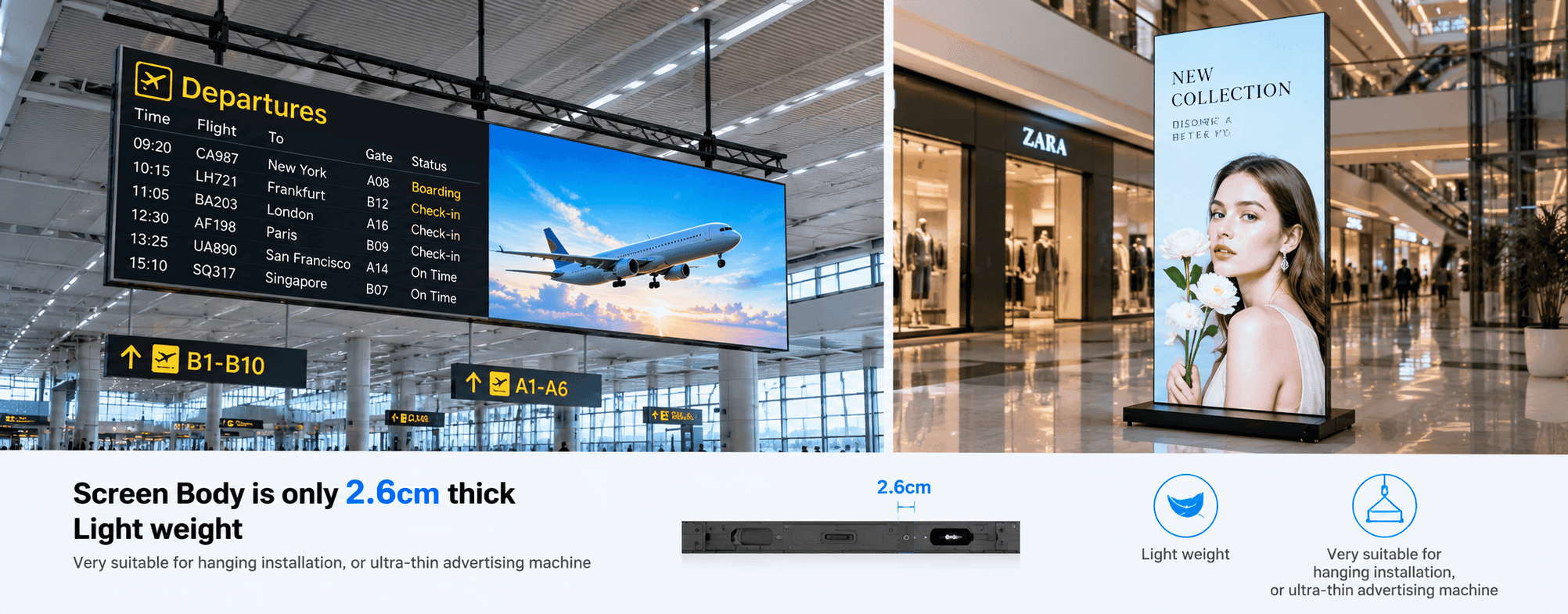

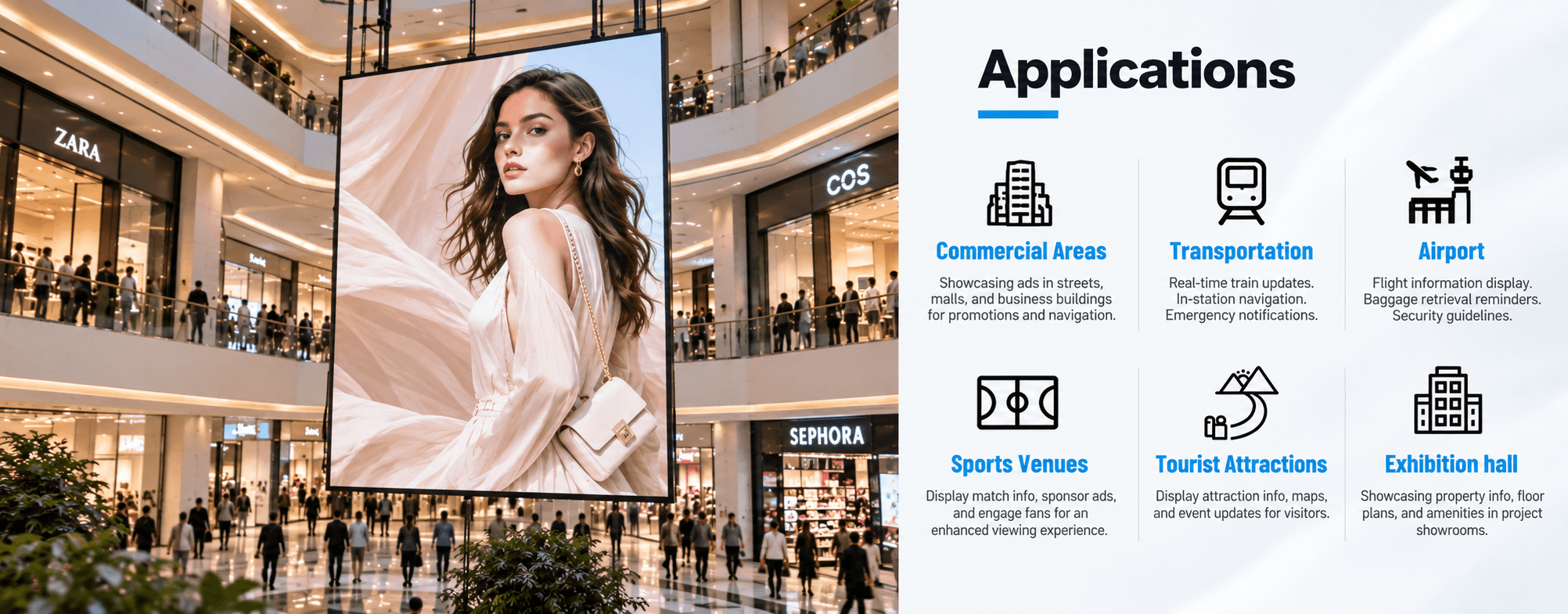

With a standard 500 × 500 mm cabinet and only 26 mm overall thickness, the display provides seamless installation while minimizing installation space. The double-sided design allows different content to be displayed on each side, making it ideal for shopping malls, retail stores, airports and showrooms.

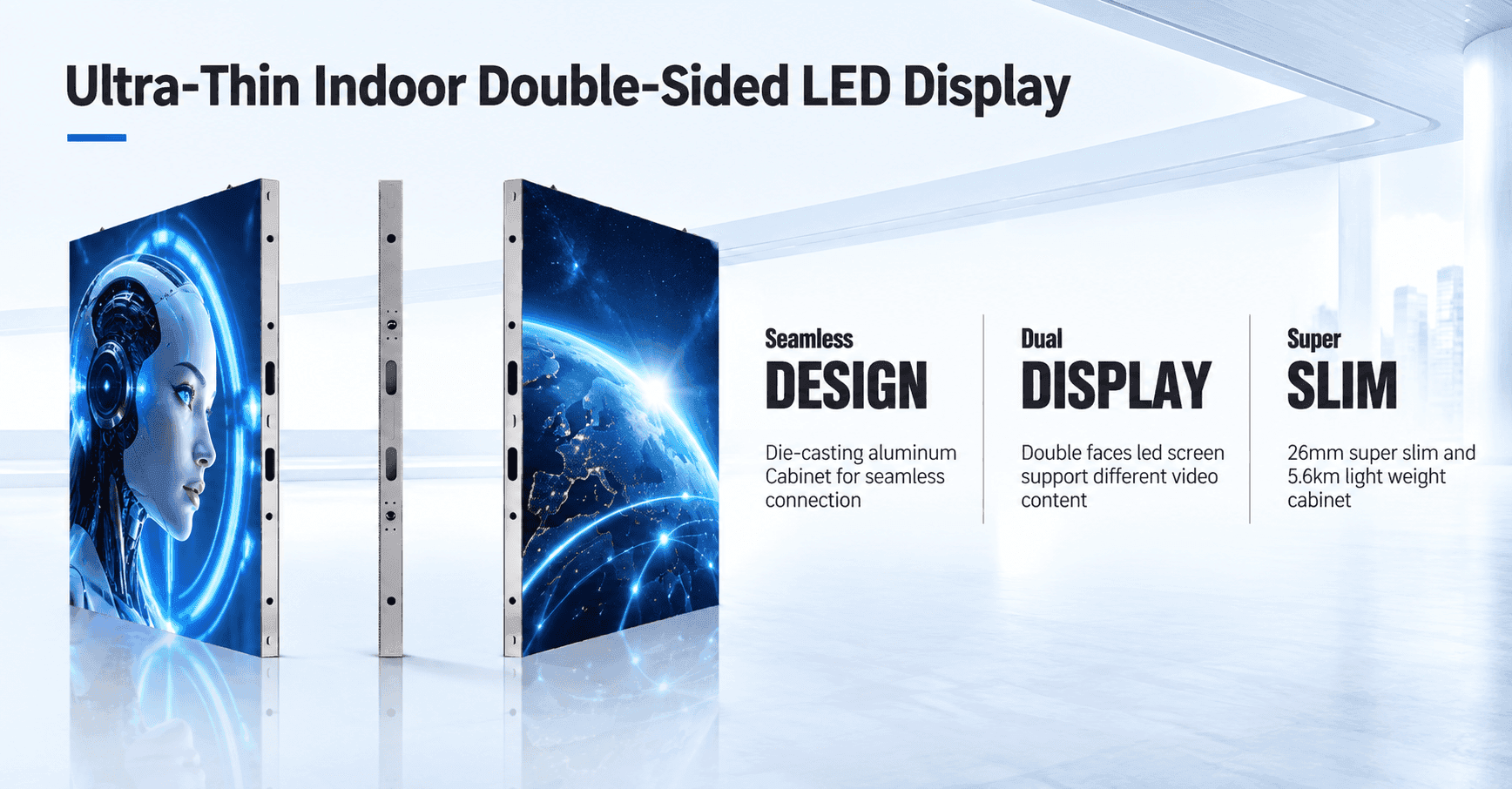

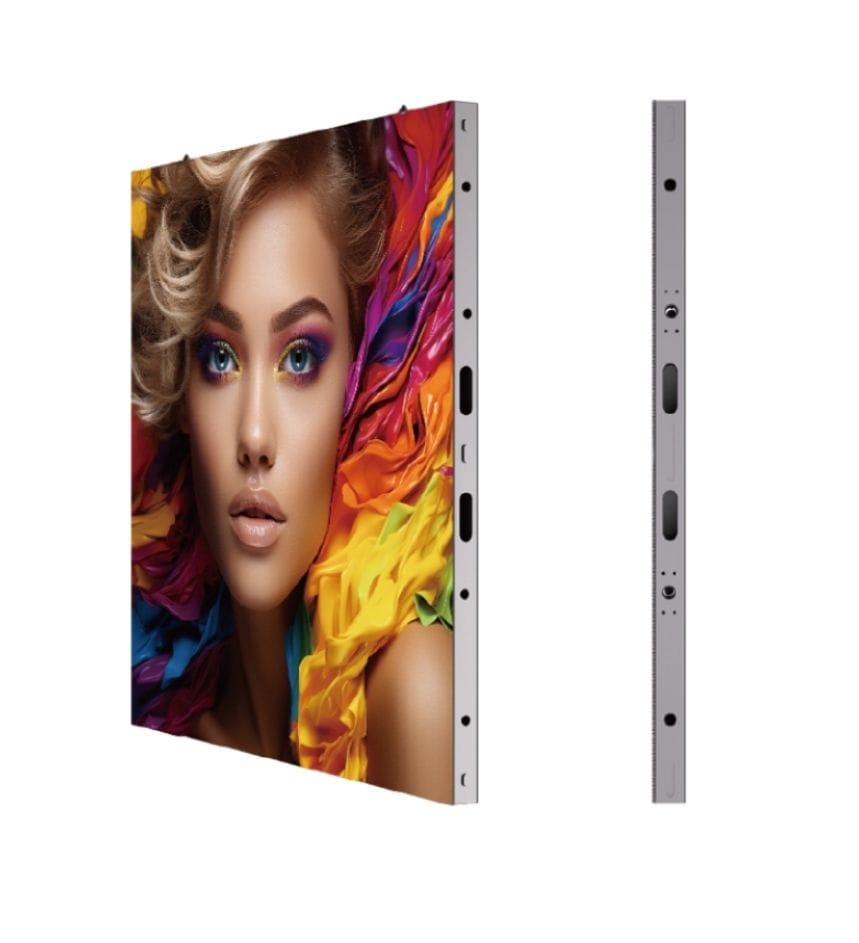

Ultra-Thin Double-Sided LED Display

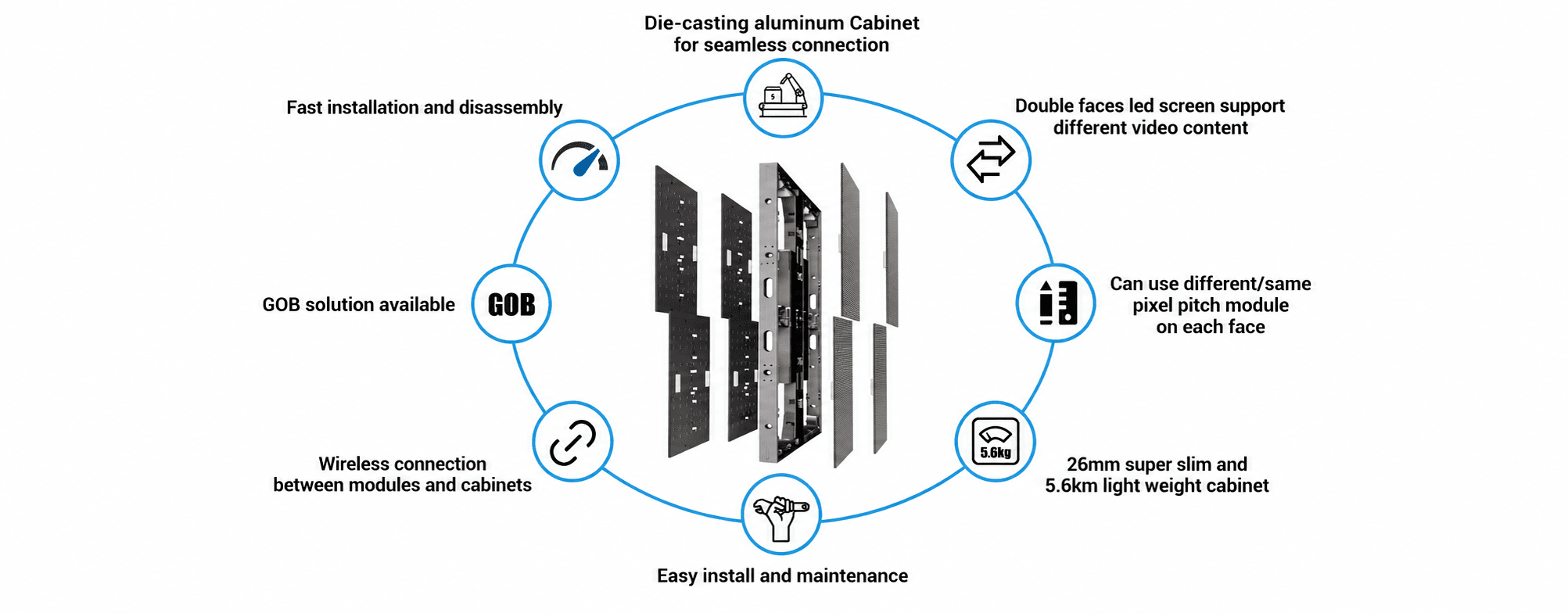

Built with a precision one-piece die-cast aluminum cabinet, this indoor double-sided LED display combines a slim profile, lightweight structure and seamless installation.
| Specification | P3.9 | P2.6 | P1.9 | P1.56 |
| Pixel Pitch | 3.9 mm | 2.6 mm | 1.9 mm | 1.5625 mm |
| Pixel Density | 65,536 dots/m² | 147,692 dots/m² | 262,144 dots/m² | 409,600 dots/m² |
| Module Resolution | 64 × 64 pixels | 96 × 96 pixels | 128 × 128 pixels | 160 × 160 pixels |
| Module Size | 250 × 250 mm | |||
| Cabinet Size | 500 × 500 mm | |||
| Cabinet Weight | 4.3 kg (SMD) / 4.6 kg (GOB) | 4.8 kg (SMD) / 5.0 kg (GOB) | 4.8 kg (SMD) / 4.8 kg (GOB) | 4.47 kg (SMD) / 4.75 kg (GOB) |
| Viewing Angle | <160° | |||
| Locking Method | 0–7° adjustable (customizable) | |||
| Viewing Distance | >3.9 m | >2.6 m | >1.9 m | >1.6 m |
| Cabinet Material | Die-Cast Aluminum | Die-Cast Aluminum | Die-Cast Aluminum | Die-Cast Aluminum |
| Cabinet Thickness | 26 mm | 26 mm | 26 mm | 26 mm |
| Gray Scale | 12–16 bit | 12–16 bit | 12–16 bit | 12–16 bit |
| Refresh Rate | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Brightness | 2000–3000 / 800 nits | 2000–3000 / 800 nits | 2000–3000 / 800 nits | 2000–3000 / 800 nits |
| Application Environment | Indoor | Indoor | Indoor | Indoor |
| Max. Power Consumption | 620 W/m² | 740 W/m² | 680 W/m² | 820 W/m² |
| Average Power Consumption | 230 W/m² | 260 W/m² | 280 W/m² | 290 W/m² |
| Brightness Adjustment | 0–100% | 0–100% | 0–100% | 0–100% |
| Control Mode | Synchronous Control | Synchronous Control | Synchronous Control | Synchronous Control |
| Supported Inputs | Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI | |||
| Operating Voltage | AC 100–240 V, 50/60 Hz | |||
| Operating Temperature | -20°C to +50°C | |||
| Operating Humidity | 10–95% RH | |||
| Service Life | 100,000 hours | |||
